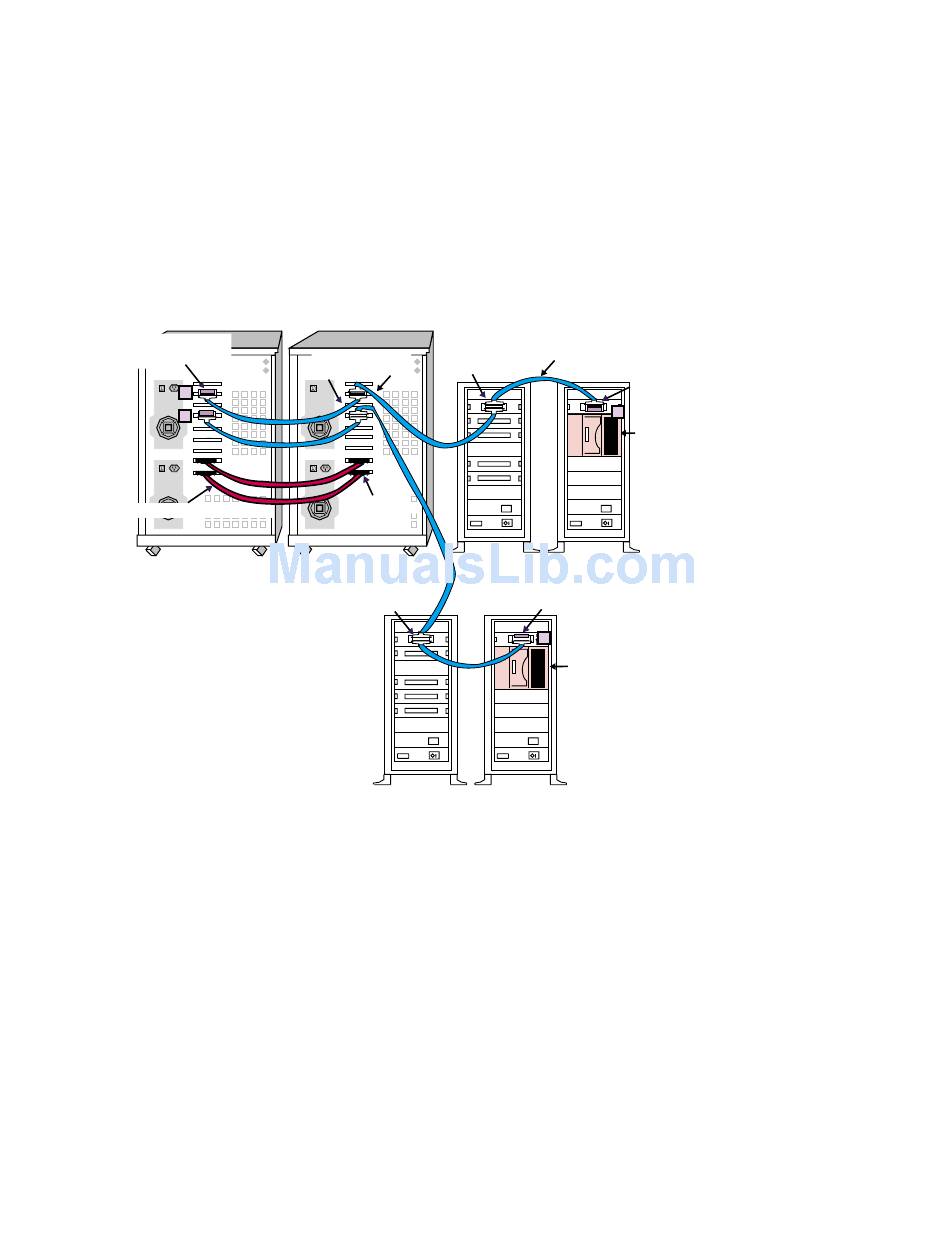

Figure 8–2: Shared SCSI Buses with SBB Tape Drives
KZPSA adapter,
trilink connector,
and H879 terminator
T
T
Memory Channel link cable
AlphaServer 2100A

8.1.3 Setting the TZ88N-TA SCSI ID

The TZ88N-TA SCSI ID is set with a push-button counter switch on the rear
of the unit. Push the button above the counter to increment the address;
push the button below the counter to decrement the address until you have
the desired SCSI ID selected.

8.1.4 Cabling the TZ88N-TA

You must connect the TZ88N-TA tabletop model to a single-ended segment
of the shared SCSI bus. It is connected to a differential portion of the
shared SCSI bus with a DWZZA-AA or DWZZB-AA. Figure 8–6 shows a
configuration of a TZ885 for use on a shared SCSI bus. You can replace the
TZ885 shown in the illustration with a TZ88N-TA. To configure the shared
SCSI bus for use with a TZ88N-TA, follow these steps:
1. You will need one DWZZA-AA or DWZZB-AA for each TZ88N-TA.
8–4 Configuring a Shared SCSI Bus for Tape Drive Use
DWZZA-VA
and trilink
BN21K or BN21L cables
Memory
Channel
adapters
BA350
AlphaServer 2100A
DWZZB-VW and trilink
1
3
4
5
BA356
BN21K or BN21L cable
DWZZA-VA,
trilink,
and H879
terminator
T
1
TZ88N-VA
2
4
5
BA350
DWZZB-VW, trilink connector,
and H879 terminator
T
TZ89N-VW
BA356
ZK-1334U-AI
