– The lower bay bottom shelf tape drive (tape drive 0, SCSI ID 3) is on
SCSI Port C and is terminated on the tape drive.
– The tape drive terminators are 68-pin differential terminators (part
number 0415619).

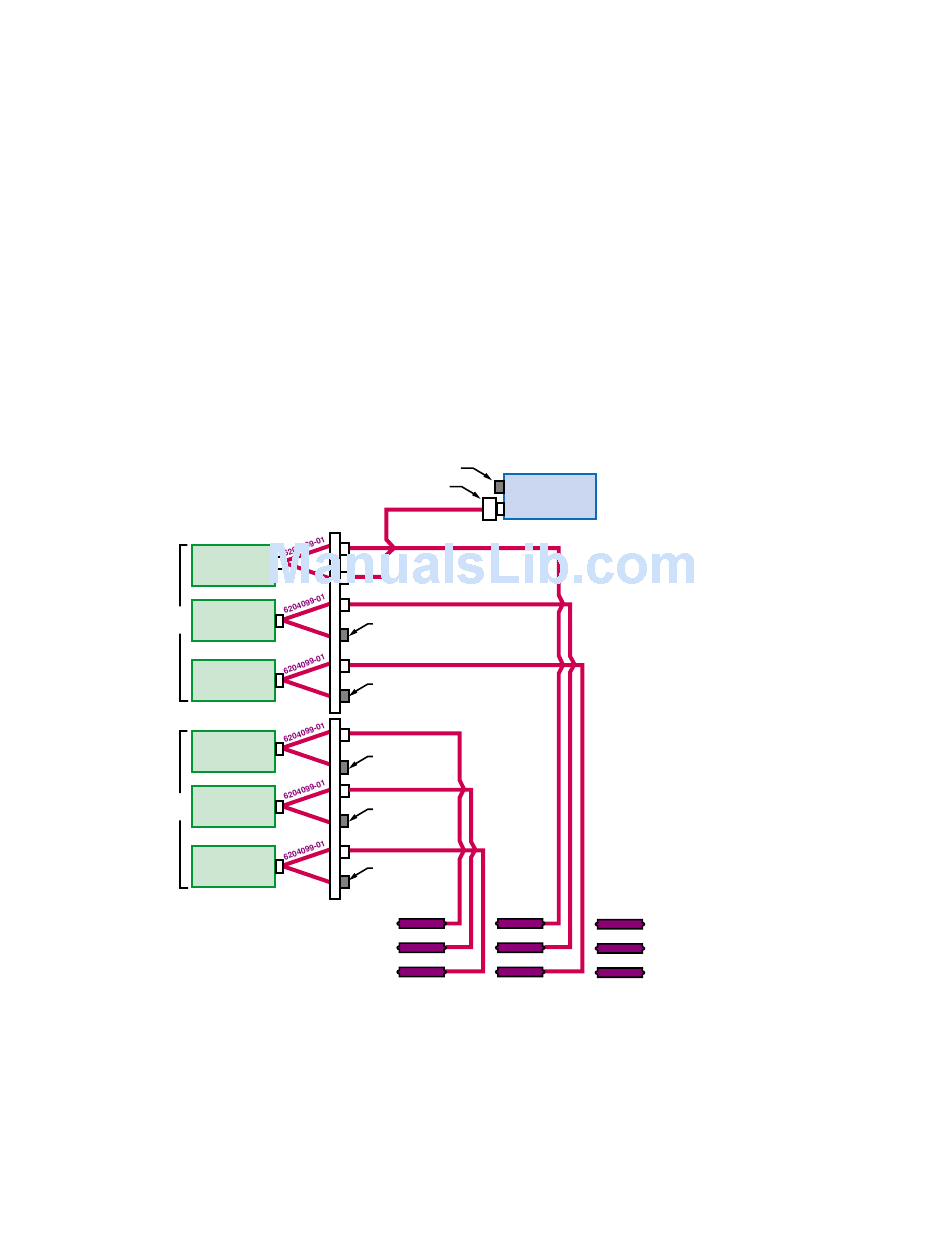

Figure 8–16: TL896 Six-Bus Configuration
TZ89 Drive 5
SCSI Address 5
(top shelf)
TZ89 Drive 4
Upper
SCSI Address 4
Bay
(middle shelf)
TZ89 Drive 3
SCSI Address 3
(bottom shelf)
TZ89 Drive 2
SCSI Address 5
(top shelf)
TZ89 Drive 1
Lower
SCSI Address 4
Bay
(middle shelf)
TZ89 Drive 0
SCSI Address 3
(bottom shelf)
8.11.6 Connecting the TL893 and TL896 Automated Tape Libraries to
the Shared SCSI Bus
The TL893 and TL896 Automated Tape Libraries (ATLs) have up to 3
meters of internal SCSI cabling on each SCSI bus. Because of the internal
SCSI cable lengths, it is not possible to use a trilink connector or Y cable to
terminate the SCSI bus external to the library as is done with other devices
8–54 Configuring a Shared SCSI Bus for Tape Drive Use
0415498 (50-Pin Micro-D Terminator)
0425031 (SCSI Diff Feed Through)
0425017 (Cable)
0415619
(68-pin Terminator)
0415619
(68-pin Terminator)
0415619
(68-pin Terminator)
0415619
(68-pin Terminator)
0415619
(68-pin Terminator)
SCSI Port A
(Rear Connector Panel)
SCSI Port B
SCSI Port C
MUC
SCSI Address 2
SCSI Port D SCSI Port G
SCSI Port E SCSI Port H
SCSI Port F
SCSI Port I
ZK-1327U-AI
