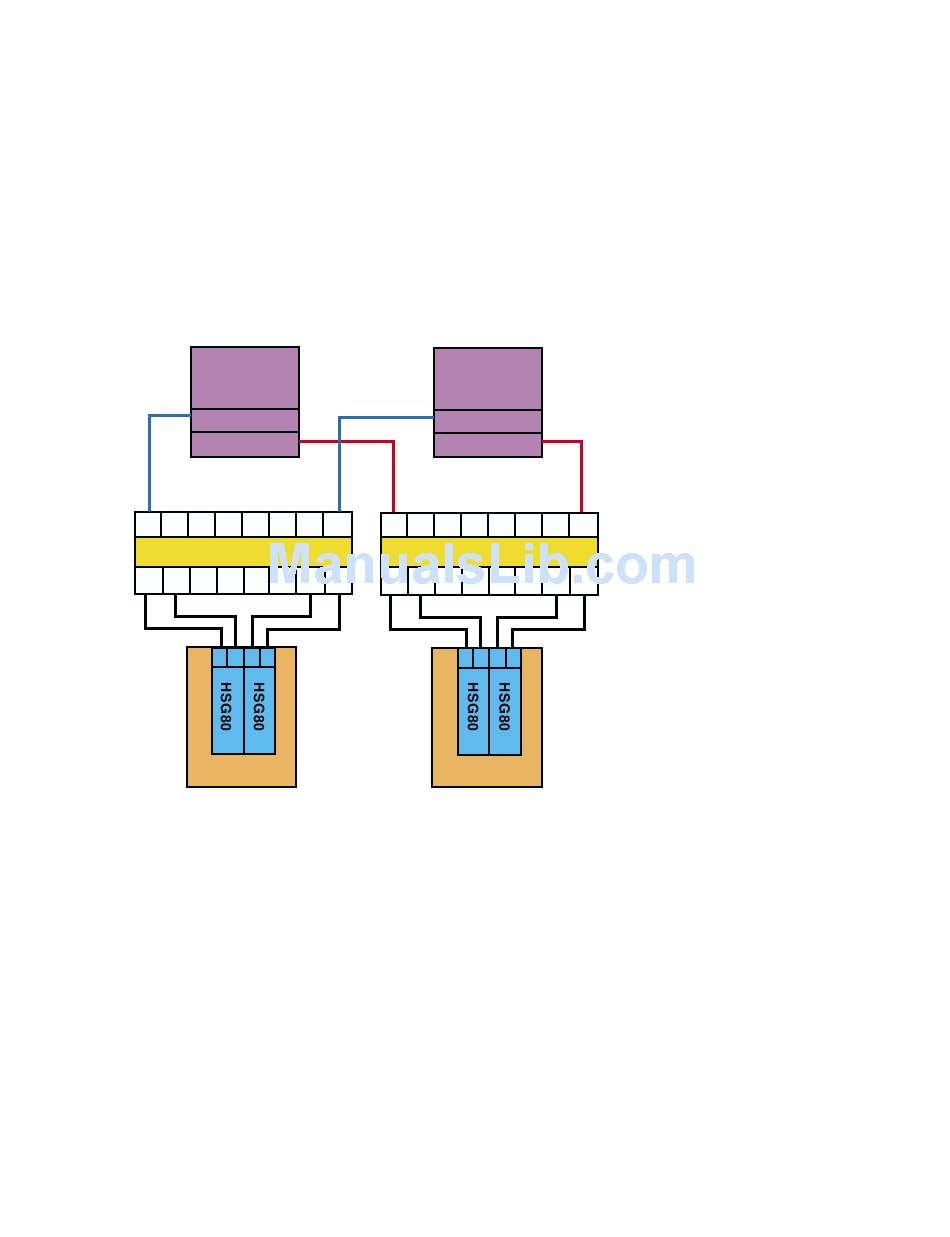

Figure 1–8: NSPOF Fibre Channel Cluster using HSG80s in Multiple-Bus

Failover Mode

Member
System
1
KGPSA
KGPSA
DSGGA
RA8000/
ESA12000
1.7 Overview of Setting up the TruCluster Server Hardware
Configuration
To set up a TruCluster Server hardware configuration, follow these steps:
1. Plan your hardware configuration. (See Chapter 3, Chapter 4,
Chapter 6, Chapter 9, and Chapter 10).
2. Draw a diagram of your configuration.
3. Compare your diagram with the examples in Chapter 3, Chapter 6,
and Chapter 9.
4. Identify all devices, cables, SCSI adapters, and so forth. Use the
diagram you just constructed.
5. Prepare the shared storage by installing disks and configuring any RAID
controller subsystems (See Chapter 3, Chapter 6, and Chapter 9 and the
documentation for the StorageWorks enclosure or RAID controller).
Member
System
2
KGPSA
KGPSA
DSGGA
RA8000/
ESA12000
ZK-1533U-AI
Introduction 1–17
