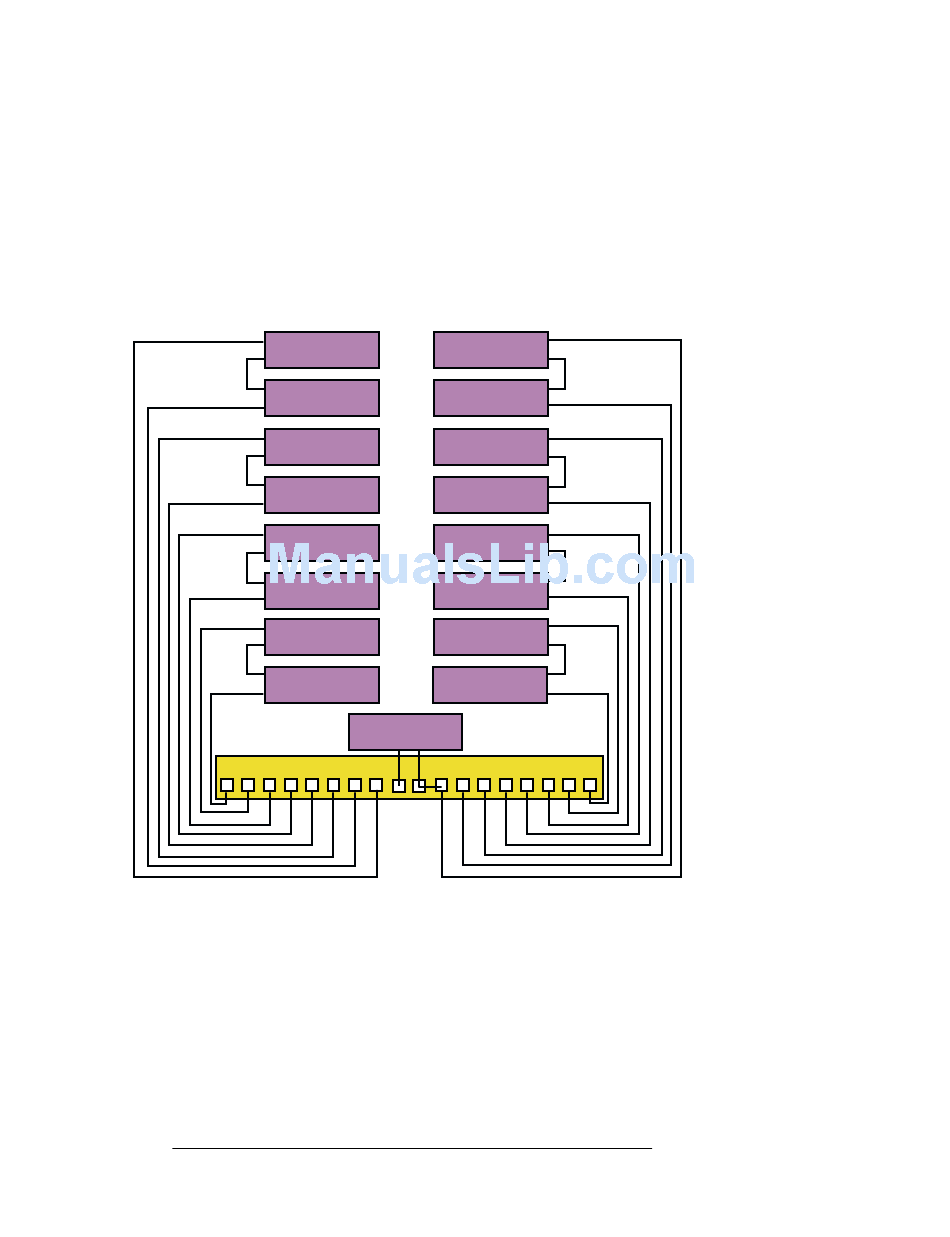

Figure 8–19: ESL9326D Internal Cabling
Tape Drive 8
SCSI ID 2
Tape Drive 9
SCSI ID 3
Tape Drive 10
SCSI ID 4
Tape Drive 11
SCSI ID 5
Tape Drive 12
SCSI ID 2
Tape Drive 13
SCSI ID 3
Tape Drive 14
SCSI ID 4
Tape Drive 15
SCSI ID 5
P O N M L
T T T
______________________
Each internal cable is up to 2.5 meters long. The length of
the internal cables, two per SCSI bus, must be taken into
consideration when ordering SCSI bus cables.
The maximum length of a differential SCSI bus segment is 25
meters, and the internal tape drive SCSI bus length is 5 meters.
Therefore, you must limit the external SCSI bus cables to 20
meters maximum.
Tape Drive 0
SCSI ID 2
Tape Drive 1
SCSI ID 3
Tape Drive 2
SCSI ID 4
Tape Drive 3
SCSI ID 5
Tape Drive 4
SCSI ID 2
Tape Drive 5
SCSI ID 3
Tape Drive 6
SCSI ID 4
Tape Drive 7
SCSI ID 5
Robotics
SCSI ID 0
SCSI Bulkhead
K J I A B C
Q R
T T
SCSI
Bus In
Note _______________________
Configuring a Shared SCSI Bus for Tape Drive Use 8–67
