If you consider the loss of a host bus adapter or switch, the configurations in
Figure 6–6 and Figure 6–7 will provide better throughput than Figure 6–5
because you still have access to both controllers. With Figure 6–5, if you lose
a host bus adapter or switch, you lose the use of a controller.

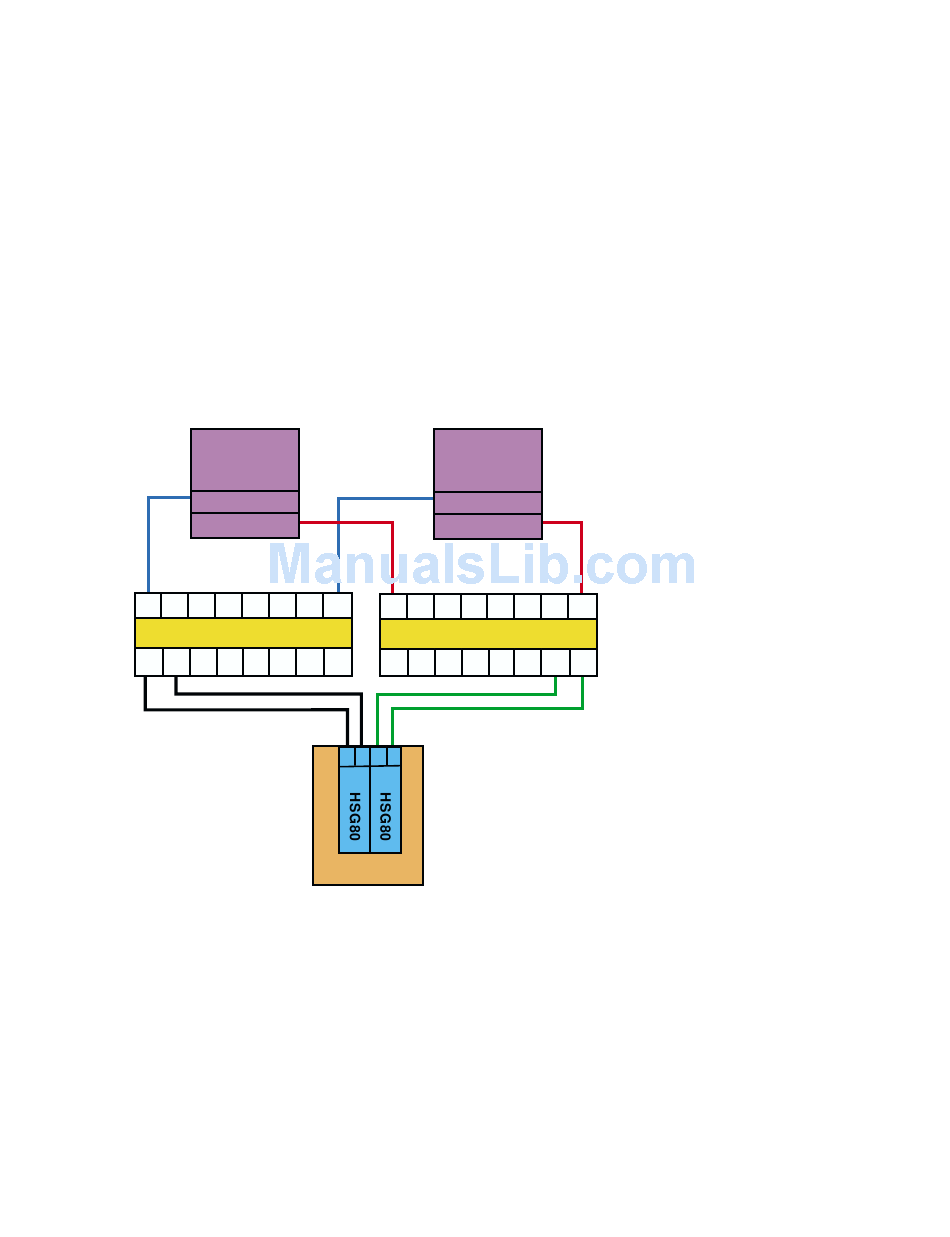

Figure 6–5: Multiple-Bus NSPOF Configuration Number 1
Member
System
1
KGPSA
KGPSA
DSGGA
Member
System
2
KGPSA
KGPSA
DSGGA
1 2 1 2
A B
RA8000/
ESA12000
