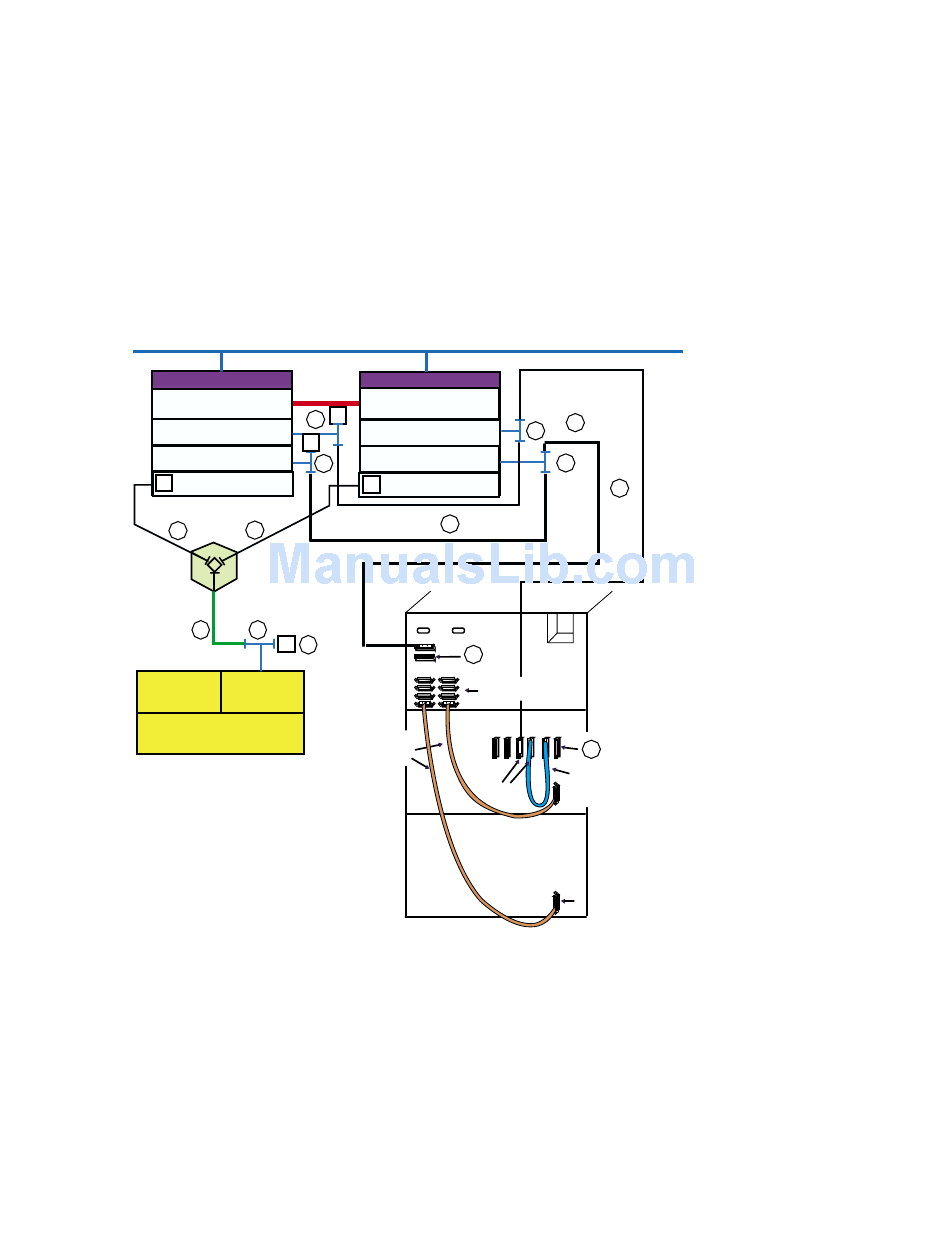

Figure 8–18: TL881 DLT MiniLibrary Rackmount Configuration
Member System 1
Memory Channel
KZPBA-CB (ID 6)
KZPBA-CB (ID 6)
T
KZPBA-CB (ID 6)
1
T
DS-DWZZH-03
T
T
2
Controller B Controller A
HSZ70 HSZ70
StorageWorks
RAID Array 7000
NOTE: This drawing is not to scale.
Robotic motor and pass through
mechanism not shown.
Table 8–13 shows the components used to create the cluster shown in
Figure 8–18.
