multiple BA356 storage units can be used on the same SCSI bus to allow
more devices on the same bus.

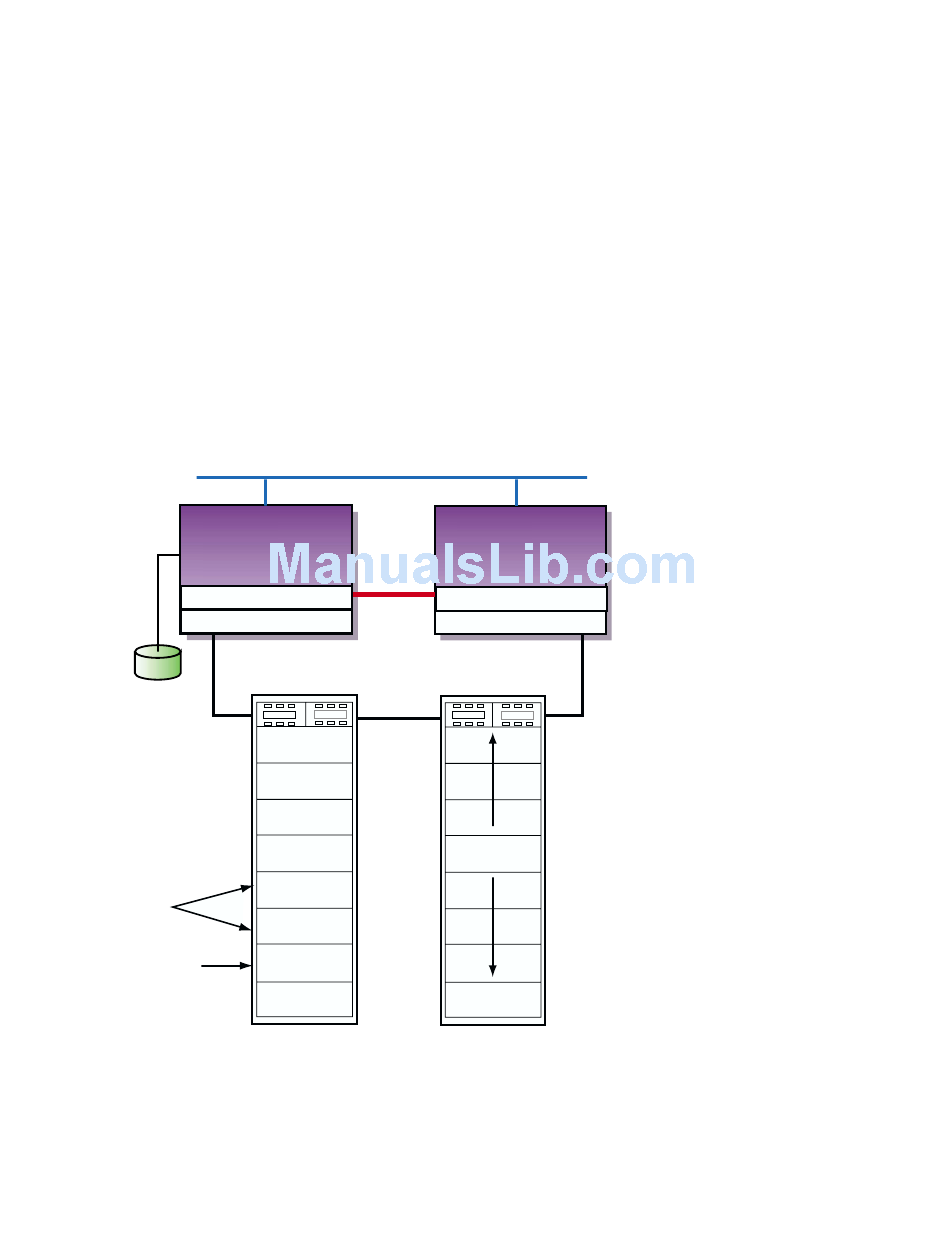

Figure 1–4 shows the configuration in Figure 1–3 with a second UltraSCSI
BA356 storage unit that provides an additional seven disks for highly
available applications.
Figure 1–4: Two-Node Cluster with Two UltraSCSI DS-BA356 Storage Units
Member
System
1
Memory Channel
Host Bus Adapter (ID 6)
UltraSCSI
BA356
Tru64
UNIX
Disk
Clusterwide
/, /usr, /var
Member 1
Boot Disk
Member 2
Boot Disk
Quorum
Disk
ID 4
Data
disks
ID 5
Do not use for
data disk. May
be used for
redundant power
supply.
PWR
This configuration, while providing more storage, has a single SCSI bus that
presents a single point of failure. Providing a second SCSI bus would allow
the use of the Logical Storage Manager (LSM) to mirror the /usr and /var
file systems and the data disks across SCSI buses, removing the single SCSI
bus as a single point of failure for these file systems.
Network
Member
System
Memory
2
Channel
Interface
Memory Channel
Host Bus Adapter (ID 7)
UltraSCSI
Shared
BA356
SCSI
Bus
ID 0
ID 1
ID 2
Data
ID 3
Disks
ID 4
ID 5
ID 6
PWR
ZK-1590U-AI
ID 8
ID 9
ID 10
ID 11
ID 12
ID 13
ID 14 or
redundant
power
supply
Introduction 1–11
