The single-ended SCSI bus may be daisy chained from one single-ended
tape drive to another with BC19J cables, as long as the SCSI bus maximum
length is not exceeded and there are sufficient SCSI IDs available. Ensure
that the tape drive on the end of the bus is terminated with an H8574-A or
H8890-AA terminator.
You can add additional shared SCSI buses with TZ887 tape drives by adding
additional DWZZB-AA/TZ887 combinations.
______________________
Ensure that there is no conflict with tape drive, host bus adapter,
and disk SCSI IDs.

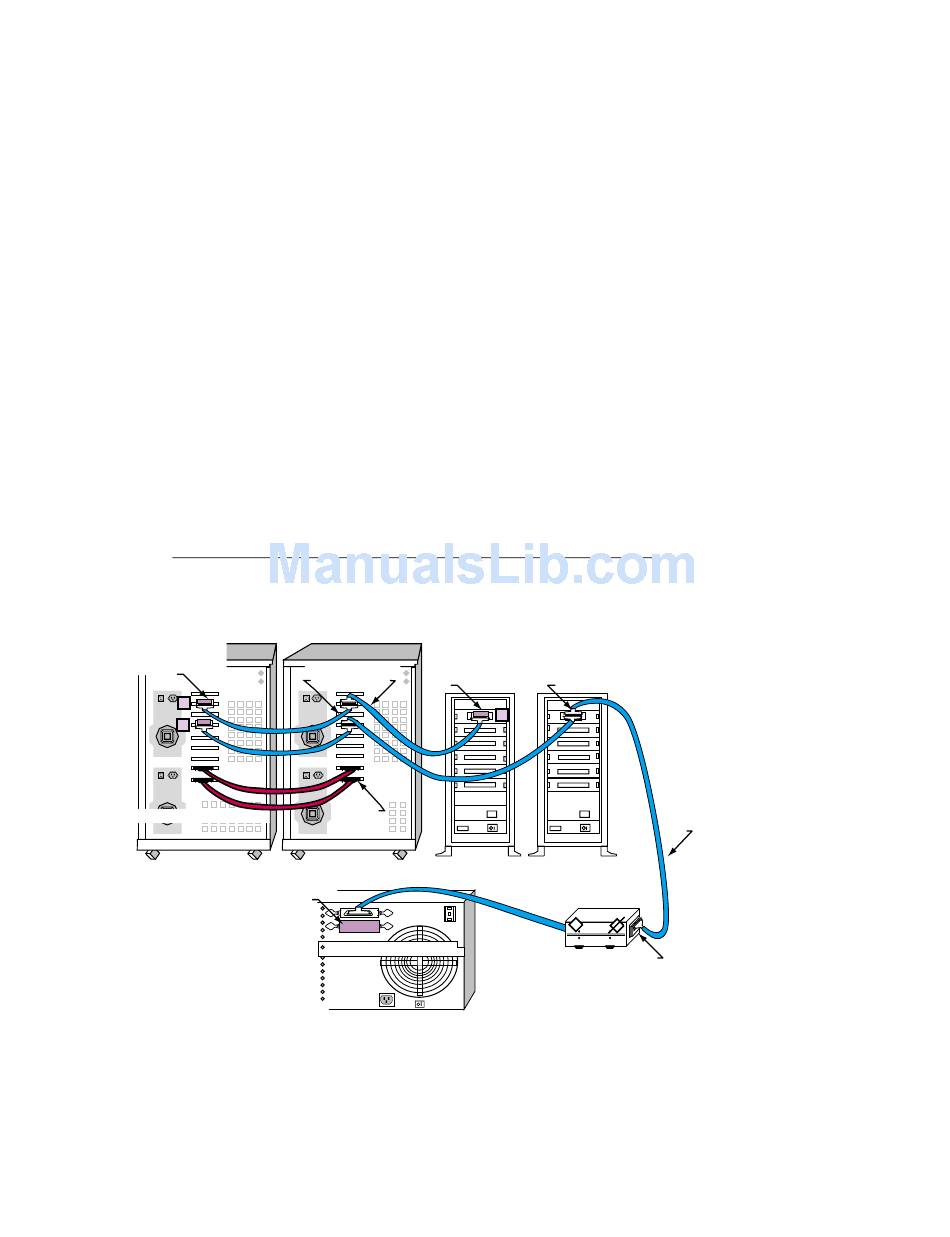

Figure 8–8: Cabling a Shared SCSI Bus with a TZ887
KZPSA adapter,
trilink connector,
and H879 terminator
BN21K or BN21L cables
T
T
Memory Channel link cable
AlphaServer 2100A AlphaServer 2100A
H8574-A
terminator
Note _______________________
DWZZB-VW,
trilink connector,
and H879-AA terminator
1
2
3
4
5
Memory
Channel
adapters
BA356
+
0
-
TZ887
Configuring a Shared SCSI Bus for Tape Drive Use 8–17
DWZZB-VW
and trilink connector
T
1
2
3
4
5
BN21K
or
BN21L
cable
BA356
BN21M
T
T
Trilink
DWZZB-AA
connector
and
H879-AA
terminator
ZK-1462U-AI
