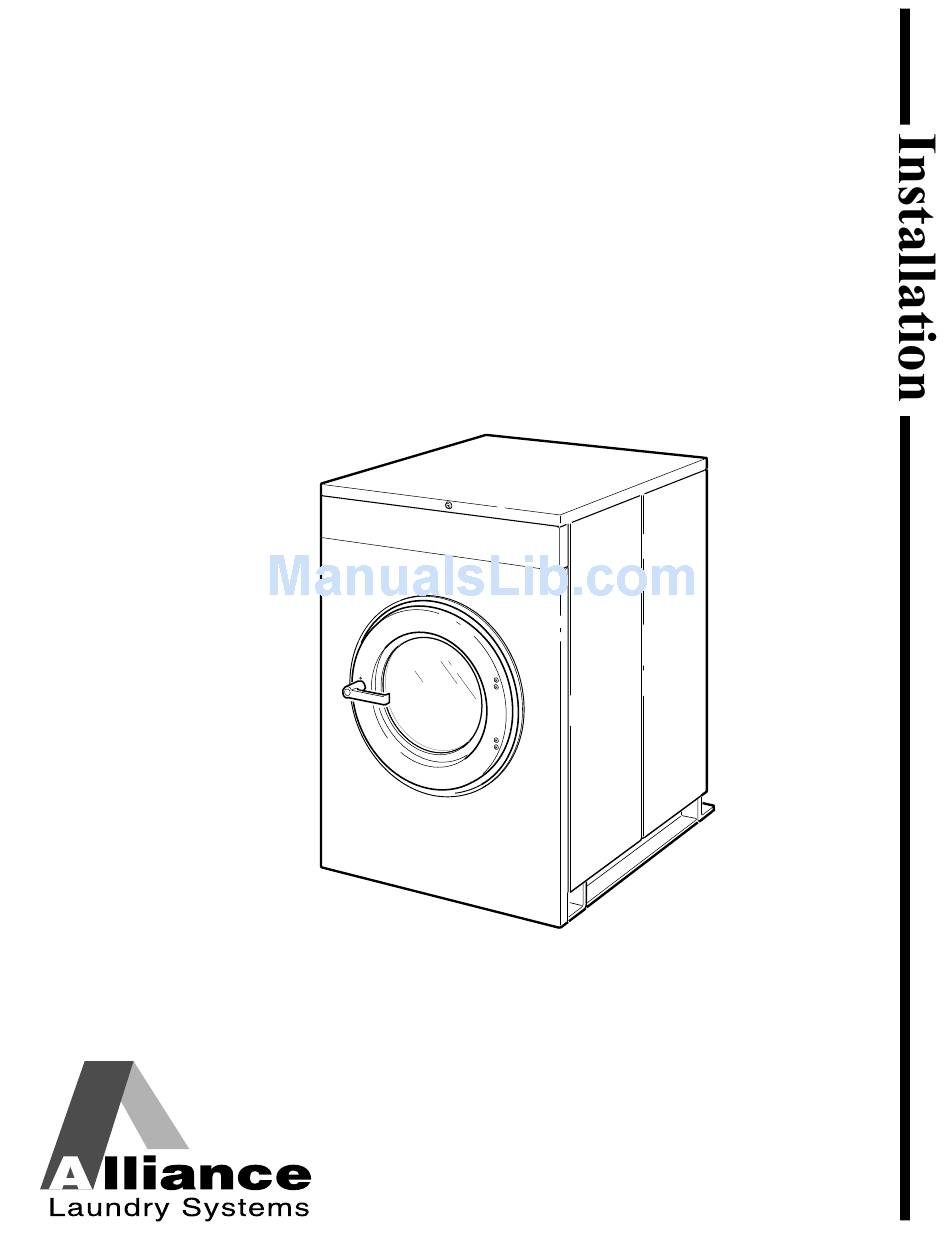

Washer-Extractors
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Cabinet Hardmount
Refer to Page 6 for Model Identification
www.alliancelaundry.com
CHM166C
Part No. F232135R12
June 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F232135R12 and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems F232135R12

Summary of Contents for Alliance Laundry Systems F232135R12

  • Page 1 Refer to Page 6 for Model Identification CHM166C Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. F232135R12 www.alliancelaundry.com June 2013...

  • Page 3: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 4: Safety Information

    8. Do not reach into the washer if the wash drum is moving. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 5 19. Keep washer in good condition. Bumping or dropping the washer can damage safety features. If this occurs, have washer checked by a qualified service person. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 6: Safety Decals

    If questions regarding safety arise, contact the manufacturer immediately. Use manufacturer-authorized spare parts to avoid safety hazards. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 7: Operator Safety

    The door does not remain securely locked during the entire cycle. b. Excessively high water level is evident. c. Machine is not connected to a properly grounded circuit. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 8: Introduction

    NC27NC2 SC27MD2 SC27SN2 UC27MX2 HC27MH2 HC27VC2 NC27NP2 SC27MH2 SC27VN2 UC27PN2 HC27MN2 HC27VX2 NC27NR2 SC27MN2 SC27VNV UC27VN2 HC27MX2 NC27NX2 SC27MV2 UC27VNV HC27MV2 NC27VC2 SC27MX2 HC27NC2 NC27VX2 SC27NC2 (continued) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 9 SC50MC3 SC50NX2 UC50MN3 HC50ML2 SC50MD2 SC50PC3 UC50MV2 HC50MN2 SC50MD3 SC50SN2 UC50MV3 HC50MV2 SC50MH2 SC50SN3 UC50MX2 HC50MX2 SC50MH3 SC50VN2 UC50PC2 HC50MY2 SC50ML2 SC50VNV UC50PC3 HC50NC2 SC50MN2 UC50PN2 (continued) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 10 HC80BXV HC80SN3 SC80BXV SC80NXV UC80PC3 HC80BYV HC80VCV SC80BYV SC80NYV UC80PN3 HC80MC3 HC80VNV SC80ECV SC80SN3 UC80VNV HC80MD2 HC80VXV SC80EPV SC80VNV HC125BCV SC125ANV SC125BYV UC125ANV HC125BYV SC125BCV SC125VNV UC125VNV F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 11: Delivery Inspection

    If any damage is discovered upon removal of the crate and/or protective cover, advise the carrier and file a written claim immediately. CHM167R CHM167R Nameplate Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 12 Design Series Option Identification (varies from machine to machine) 0001 * Denotes Brand *C40AC2OU60001 00000000000 208 – 240 18.2 Drawing: EXAMPLE OF NAMEPLATE CHM2079N CHM2079N Figure 2 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 13: Replacement Parts

    Refer to Figure 3. Remove Yellow Retainer Before Starting Machine. Note: A Retainer has been inserted to prevent the door from locking during shipment. CFS503N Figure 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 14: Specifications And Dimensions

    (163.1) (180) (232) (255) Perforation size, in. (mm) 0.188 0.188 0.188 0.188 0.188 0.188 0.188 (4.76) (4.76) (4.76) (4.76) (4.76) (4.76) (4.76) Perforation open area, % 17.5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 15 High extract speed, RPM Centrifugal Force Data Wash/reverse centrifugal 0.93 0.97 0.82 0.82 0.97 0.83 0.83 force, Gs High extract centrifugal 83.1 83.5 73.3 82.3 89.8 86.3 93.8 force, Gs © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 16 15.5 15.5 23.3 23.3 480V 10.4* 10.4 10.4* 20.8 20.8 31.2 31.2 Electrical heating elements Electrical heat element size, kW * Applicable to fixed-speed inverter drive models. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 17 Avg. power used per cycle, kW/hr 0.18 est 0.28 est 0.38 est 0.55 est. Nominal sound emission, dBA 60 / 69 Background noise level, dBA Average HVAC load, Btu/hr. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 18 (10.35 kg) (21.95 kg) (21.95 kg) (23.52 kg) Electrical Heating (Optional) Total electrical heating capacity, kW 15.6 23.4 28.8 Electrical heating elements Electrical heat element size, kW F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 19 Height of door opening bottom, in. (mm) 17.19 18.5 18.25 21.63 30.25 (437) (431) (483) (457) (470) (445) (549) (768) Average Power Consumption HVAC load, Btu/hr. 1200 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 20 * Refer to Gap Setting for Vibration Switch (Variable-Speed Models) section for specifications. ** All models, except 35 and 50, are based on normal 95°C international cycle in BN2 control. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 21 10.4* 20.8 20.8 31.2 31.2 31.2 Electrical heating elements Electrical heat element size, kW * Refer to Gap Setting for Vibration Switch (Variable-Speed Models) section for specifications. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 22 Input Power Block Vacuum Breaker External Chemical Supply Signal Terminal Strip Drain Outlet (OPL only) External Chemical Supply Inlet (OPL) Cold Water Inlet Extra Inlet Valve Figure 4 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 23 .88 in. .25 in. .88 in. .88 in. .88 in. .88 in. (22 mm) (22 mm) (22 mm) (6 mm) (22 mm) (22 mm) (22 mm) (22 mm) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 24 4.75 in. (124 mm) 1 in. (25 mm) 63.88 in. (1622 mm) 70.5 in. (1791 mm) 64.88 in. (1648 mm) 44.5 in. (1130 mm) 66.63 in. (1692 mm) F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 25: Dimensional Clearances

    *Minimum spacing is .5 in. (12.5 mm); 1 in. (25 mm) is the recommended space. When not installed on a base frame. **For 80 pound models intended for standard mounting, clearance should be 6 in. (152.5 mm). © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 26: Installation

    Speed (229 mm) (152 mm) or concrete foundation bolt, Adhesive Anchor System, 125 Models 12 in. 6 in. or rebar frame (304 mm) (152 mm) Table 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 27 (3.05) (4.19) (4.51) (11.5) (19.7) Maximum vertical load, lbs. (kN) 1313 1635 1824 2610 2394 4799 6904 (4.23) (5.84) (7.28) (8.11) (11.61) (10.65) (21.35) (30.7) Table 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 28: Concrete Foundation Installation

    Pad height must not exceed 8 in. (203 mm) 4 in. (102 mm) Minimum .5 in. (13 mm) Minimum; 1 in. (25 mm) Concrete Reinforcing Bar recommended Figure 5 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 29 NOTE: When using J-bolts, allow 1.5 inches (38 mm) to extend above the surface of the concrete. Refer to the Machine Anchoring section. 7. Allow concrete to dry. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 30 COMPACTED FILL DIRT 24 in. (609 mm) DEPTH CHM2087N 125 MODELS CHM2087N 12 in. (305 mm) 48 in. (1219 mm) 6 in. (152 mm) 6 ft. (1829 mm) Figure 7 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 31: Machine Anchoring

    9. Allow adhesive around bolt to cure properly. NOTE: Select the proper size and strength anchor system. Follow the manufactuer’s installation instructions and recommended cure times. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 32 J-bolt, minus 1.5 inches (38 mm). machine to settle into the wet grout. 4. Drill and chisel out a conical hole large enough to accept the J-bolt. Refer to Figure 11. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 33 Locknut setting. Refer to the Gap Setting for Vibration Machine Base Switch section. .5 in. (13 mm) Machinery Grout J-Bolt Figure 14 H033I H033I Figure 13 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 34: Mounting Bolt Hole Locations (Without Elevated Base Frames)

    20.88 in. (530 mm) Front of Machine 2.75 in. 2.75 in. (70 mm) (70 mm) 18 AND 20 Models CHM2224N Figure 15 IMPORTANT: Drawing is not to scale. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 35 (705 mm) 20.88 in. (530 mm) Front of Machine 2.56 in. 25 Models 2.56 in. (65 mm) (65 mm) CHM2062N Figure 16 IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 36 23.88 in. (607 mm) Front of Machine 27 AND 30 Models 2.56 in. 2.56 in. (65 mm) (65 mm) CHM2063N Figure 17 IMPORTANT: Drawing is not to scale. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 37 Front of Frame 26 in. (660 mm) Front of Machine 2.06 in. 2.06 in. (52 mm) (52 mm) 35 Models CHM2066N Figure 18 IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 38 (45 mm) (660 mm) Front of Machine 30.63 in. 2.32 in. (778 mm) (59 mm) 40 Models CHM206 CHM2067N Figure 19 IMPORTANT: Drawing is not to scale. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 39 (951 mm) 30 in. (760 mm) Front of Machine 2.03 in. (52 mm) 2.03 in. 50 Models (52 mm) CHM2064N Figure 20 IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 40: Mounting Bolt Hole Locations (Without Elevated Base Frames)

    1.25 in. (760 mm) (32 mm) Front of Machine 2.03 in. (52 mm) 2.03 in. (52 mm) 60 Models CHM2065N Figure 21 IMPORTANT: Drawing is not to scale. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 41 (1054 mm) 80 Models* CHM2068N CHM2068N *For close mounting, use mounting bolt pattern labeled “A”; for standard mounting, use “B.” Figure 22 IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 42 23.25 in. (591 mm) (591 mm) Front of Machine 0.75 in. (19 mm) 48 in. (1219 mm) 125 Models CHM2069N Figure 23 IMPORTANT: Drawing is not to scale. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 43 20.88 in. (530 mm) Front of Machine 2.75 in. 2.75 in. (70 mm) (70 mm) 18 AND 20 Models CHM2070N Figure 24 IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 44 (705 mm) 20.88 in. (530 mm) Front of Machine 2.75 in. 2.75 in. (70 mm) (70 mm) 25 Models CHM2071N Figure 25 IMPORTANT: Drawing is not to scale. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 45 23.88 in. (607 mm) Front of Machine 2.75 in. 2.75 in. (70 mm) (70 mm) 27 AND 30 Models CHM2072N Figure 26 IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 46 (810 mm) 26 in. (660 mm) Front of Machine 2.25 in. 2.25 in. (57 mm) (57 mm) 35 Models CHM2073N Figure 27 IMPORTANT: Drawing is not to scale. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 47 (660 mm) 2.38 in. Front of Machine (61 mm) 30.88 in. (784 mm) 2.44 in. (62 mm) 40 Models CHM2074N Figure 28 IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 48 (951 mm) 30 in. (762 mm) Front of Machine 2.22 in. 2.22 in. (56 mm) (56 mm) 50 Models CHM2075N Figure 29 IMPORTANT: Drawing is not to scale. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 49 (88 mm) 30 in. (762 mm) Front of Machine 2.22 in. 2.22 in. (56 mm) (56 mm) 60 Models CHM2076N Figure 30 IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 50: Elevated Base Frame Installation

    2. Use the elevated base frame as a template by positioning the frame in the desired location and marking the pre-drilled mounting holes on the floor. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 51 .5 inch (13 mm) wide to allow any surface water build-up under the base of the machine to drain away. Do not omit this step. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 52: Gap Setting For Vibration Switch (Variable-Speed And Fixed-Speed Models)

    NOTE: The standard position of the switch is open, or non-tripped. 3. Tighten nuts on switch extension after adjusting the gap. Measure the gap distance to verify accurate setting. 4. Re-install any panels removed. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 53 Installation For 18, 20, 25, 27, 30 and 35 Pound Capacity Machines CHM1995N CHM1995N Sump Vibration Switch Gap Distance Switch Extension Figure 33 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 54 Installation For 40 and 50 Pound Capacity Variable-Speed and Fixed-Speed Machines CHM2000N Sump Vibration Switch Gap Distance Switch Extension Figure 34 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 55 Installation For 60 Pound Capacity Variable-Speed and Fixed-Speed Machines CHM1999N CHM1999N Lower Bracket Balance Bolt Upper Bracket Lock Nut Vibration Switch Gap Distance Figure 35 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 56 Installation For 80 Pound Capacity Machines CAB1998N CHM1998N Switch Extension Vibration Switch Gap Distance Figure 36 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 57 Installation For 125 Pound Capacity Machines CHM1993N Vibration Switch Switch Extension Gap Distance Figure 37 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 58: Drain Connection

    Drain Hose Overflow Hose Drain Valve Vent Pipe Drain Tee Water Inlet Valve* * 1 ft. (0.3 m) minimum between water inlet valve and vent pipe. Figure 39 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 59: Pump Drain Connection

    A sealed drain system may also allow water to be siphoned back into the washer. Both of these conditions may result in flooding of the washer. CHM2088N Figure 40 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 60 6 in. (152 mm) 4 in. (102 mm) 6 in. (152 mm) 6 in. (152 mm) 8 in. (203 mm) 8 in. (203 mm) 80, 125 Table 6 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 61: Water Connection Requirements

    Water Supply Faucets Air Cushions (Risers) Figure 41 WARNING To prevent personal injury, avoid contact with inlet water temperatures higher than 125° Fahrenheit (51° Celsius) and hot surfaces. W748 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 62: Electrical Installation Requirements

    Refer to Table 9 through Table 18 Specification section. in this section for model-specific circuit breaker requirements. If machine is intended for four-wire service, a neutral leg must be provided by power company. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 63: Connection Specifications

    (current edition). The ground connection must be made to a proven earth ground, not to conduit or water pipes. Do not connect ground to neutral (N-white wire) leg at terminal strip. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 64 16.0 440 – 480 208 – 240 208 – 240 16.0 NOTE: Wire sizes shown are for copper, THHN, 90° conductor per NEC article 310. Table 10 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 65 208 – 240 16.0 Variable-Speed Models 200 – 240 50/60 3x2.5 3x6.0 NOTE: Wire sizes shown are for copper, THHN, 90° conductor per NEC article 310. Table 12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 66 200 – 240 50/60 1 or 3 2 or 3 5.9/5.9 2x2.5 3x2.5 NOTE: Wire sizes shown are for copper, THHN, 90° conductor per NEC article 310. Table 13 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 67 16.0 200 – 240 50/60 1 or 3 2 or 3 NOTE: Wire sizes shown are for copper, THHN, 90° conductor per NEC article 310. Table 14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 68 1 or 3 2 or 3 6.3/6.3 2x2.5 3x2.5 NOTE: Wire sizes shown are for copper, THHN, 90° conductor per NEC article 310. *Coin models only. Table 15 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 69 200-240 50/60 25.0 200-240 50/60 1 or 3 2 or 3 NOTE: Wire sizes shown are for copper, THHN, 90° conductor per NEC article 310. Table 16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 70 440 – 480 50/60 380 – 415 50/60 200 – 240 50/60 NOTE: Wire sizes shown are for copper, THHN, 90° conductor per NEC article 310. Table 18 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 71: Troubleshooting

    80 psi (5.4 bar) IMPORTANT: Call a qualified electrician if replacement fuse blows. Table 19 IMPORTANT: Failure to install the customer supplied steam filter may void the warranty. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 72: Supply Dispensing (Opl Machines Only)

    Refer to Figure 42. Chemical Dispenser Pump Outlet Injection Point Pipe H038IE3A Figure 42 IMPORTANT: Failure to follow these instructions could damage the machine and void the warranty. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 73 Do not use L1 or L2 with the common line to deliver 120VAC to chemical injection supply pumps if the machine is equipped with a control transformer. Refer to Figure 45 through Figure 51. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 74 Figure 45 Figure 47 220-240 Volt 50 Hz 1φ 2-Wire and 3φ 3-Wire Models 120 Volt 60 Hz 1φ 2-Wire Models CHM2091N CHM2092N Figure 46 Figure 48 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 75 440-480 Volt 60 Hz 3φ 3-Wire Models 380-415 Volt 50 Hz 3φ 3-Wire Models CHM2093N CHM2095N Figure 49 Figure 51 208-240 Volt 60 Hz 1φ 2-Wire and 3φ 3-Wire Models CHM2094N Figure 50 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...
  • Page 76 DESIGNS 1-4 P048I Strain Relief for Liquid Chemical Supply Lines Supply Dispenser Lid Dry Supply Cups Dry Supply Insert Four Way Water Valve Supply Dispenser Figure 52 F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 77: Door Handle Adjustment

    7. Reinstall the door lock cover. 8. Reinstall the outer front panel. IMPORTANT: If the door lock and interlock are not functioning properly after adjustment, call a service technician. CHM335S Figure 54 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232135R12...

  • Page 78: Control Function Test

    Attempt to start the machine with the door open. The machine should not start with the door open. F232135R12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
