Model 4520 & 4110 Series Getting Started Guide
1. Configure IP address
Power connection and default configuration
First the SmartNode must be connected to the mains power supply with the power cable. Wait until the 'Run'
LED stops blinking and lights constantly. Now the SmartNode is ready.
The factory default configuration for the Ethernet interface IP addresses and network masks are listed in
Table 9. Factory default IP address and network mask configuration
Interface Ethernet 0 (ETH0)
Interface Ethernet 1 (ETH1)
Both Ethernet interfaces are activated upon power-up.
If these addresses match with those of your network, go to section
on page 45. Otherwise, refer to the following sections to change the addresses and network masks.

Connect with the serial interface

The Console port is wired as an EIA-561, RS-232 port. Use the included Model 16F-561 adapter and cable (see
figure
21) between the SmartNode's Console port and a PC or workstation's RS-232 serial interface. Activate the
terminal emulation program on the PC or workstation that supports the serial interface (e.g. HyperTerm).
Terminal emulation program settings:
9600 baud
no parity
8 bit
1 stop bit
1 start bit
No flow control

1. Configure IP address

IP Address
172.16.40.1
192.168.1.1

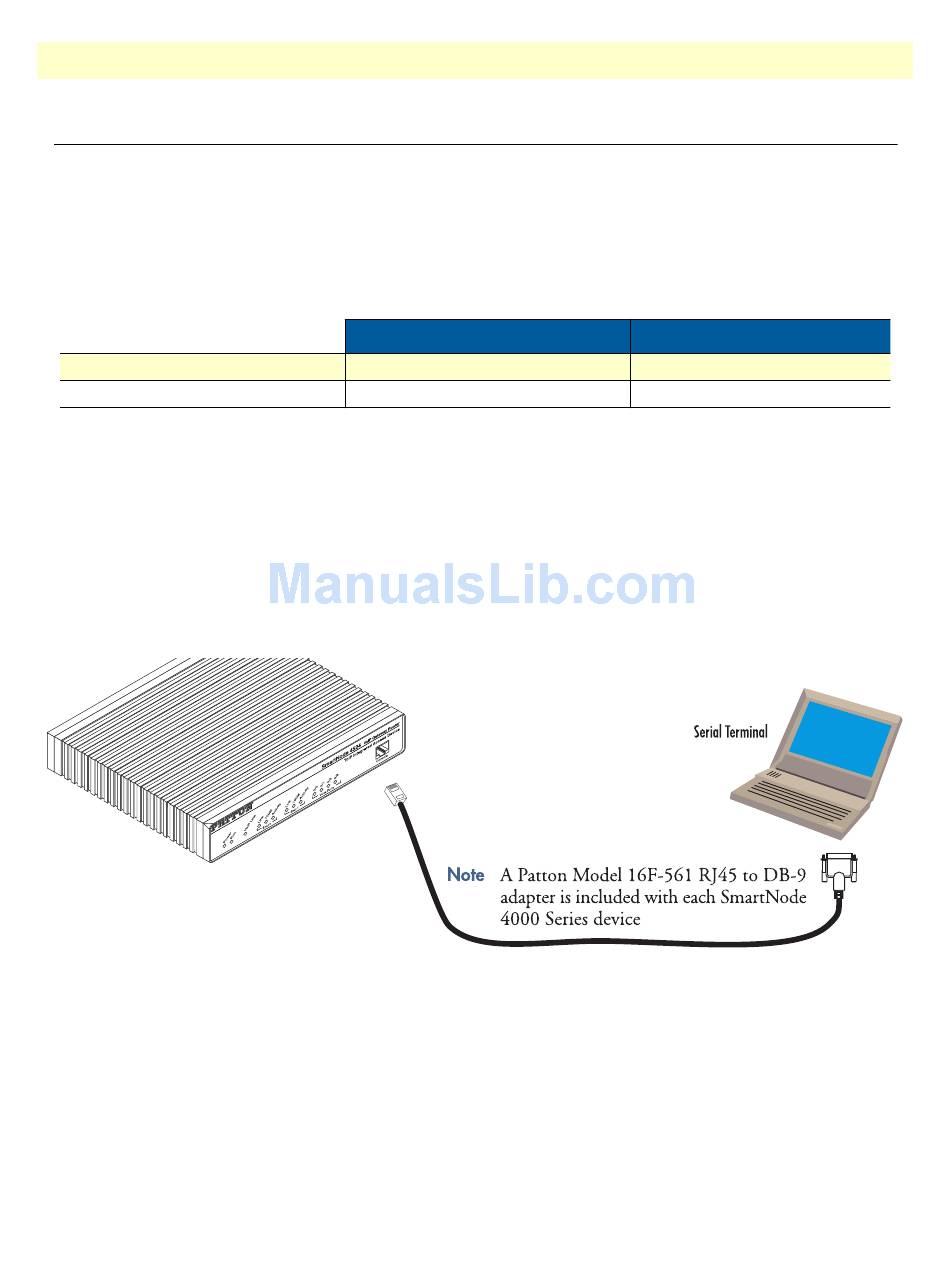

Figure 21. Connecting to the terminal
4 • Getting started with the SmartNode
Network Mask
255.255.0.0
255.255.255.0
"2. Connect the SmartNode to the network"
table
9.
43
