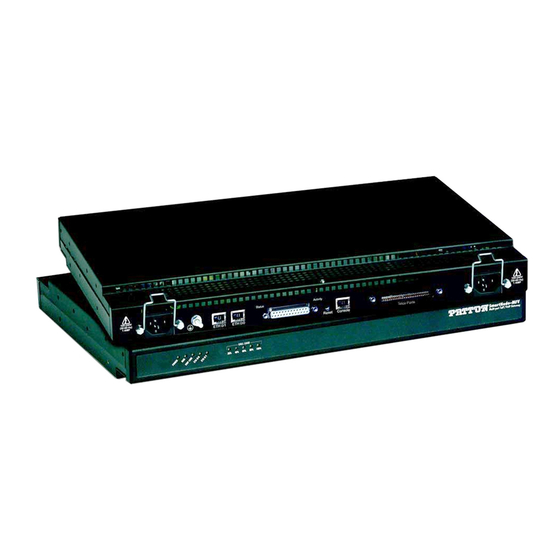

Patton electronics SmartNode 4900 Series Specifications

The IpChannel Bank is the perfect VoIP gateway for applications requiring 12 to 32 concurrent analog voice/fax
calls within a single redundant solution.
12, 16, 24 or 32 FXS or FXO ports
Simultaneous voice or fax calls on all ports.
Advanced local call switching.
Full SIP and T.38 support
Supports the complete range of industry stan-
dard VoIP: SIP, H.323, T.38 fax, fax and modem
bypass, DTMF relay. Codecs G.729, G.723 etc.
Secure Toll-Quality VoIP
DownStreamQoS and Voice-over-VPN with
adaptive traffic management and shaping for
maximum voice quality and secure
voice communication.
Complete Access Routing
Two 10/100 Ethernet ports with auto MDI-X.
Access router with NAT, Firewall, PPPoE, DHCP,
DynDNS, multiple VLANs & VPN with IPsec*.
Optional Integrated WAN uplink
Choose from V.35, X.21, T1/E1, ADSL and
G.SHDSL data interfaces in addition to the two
Ethernet ports.
Outstanding Interoperability
Interoperable for voice and T.38 fax with leading
SIP service providers, soft-switch vendors and
leading IP-PBX systems.
VoIP
IpChannel Bank Multi-Port
FXS & FXO Gateway Router
SmartNode
™
T
he SmartNode 4900 is the ideal solution
for service providers and enterprises
requiring high-density analog connections
for converged Internet-Telephony. Call centers,
multi-tenant-units and PBX/switch extensions
can now access the low-cost benefits of packet
voice while WAN, data and VPN features permit
direct access the IP network with full upstream
and DownStream QoS™.
The SN4900 supports 12 to 32 simultaneous
VoIP calls over standard two-wire FXS connec-
tions. The analog ports are presented on a single
Amphenol telco connector for convenient wiring
closet connection. Local LAN connectivity is pre-
sented via dual 10/100 Ethernet ports. Traffic can
be routed out either port for load-balancing and
redundancy. Dual-redundant power supplies pro-
tect against equipment down-time.
Seamless and secure network integration with
fixed IP, DHCP or PPPoE. Complete access rout-
ing features include NAT/NAPT, Firewall, DynDNS
and the optional IPsec VPN feature license offer
secure data.
Dual 10/100
Ethernet ports
Front panel indicators
show system status
at-a-glance
4900 Series
Optional WAN uplink modules, available in
V.35/X.21, T1/E1, and xDSL options, eliminate
the need for extra network termination devices
and extra cost.
Quality of Service (QoS) features included
advanced voice prioritization and traffic manage-
ment. DownStreamQoS™ ensures voice without
interruptions even over best-effort internet con-
nections. Packet labeling according to 802.1p,
TOS and DiffServ enable
integration into managed
QoS networks.
Integrated
Command
panel status and call load
indicators and a full suite of management inter-
faces ensure efficient setup, continuous trouble-
free operation and cost-effective deployment.
Visit www.patton.com
50-pin (12 to 24 channels)
or 64-pin (32 channels)
Optional WAN interface
console port
GUI and
Line, front
Special Rates Available
Call for Details
for more information.
Telco connector
Proven
Patton design,
EIA-232
Patton supported
