SmartNode 4520 and 4110 Series
VoIP Gateway Routers

Quick Start Guide

Approval—Models that are equipped with FXO interfaces have been approved for connection
to the public telecommunication network.
Zulassung—Modelle, die mit FXO Schnittstellen ausgerüstet sind, sind für Anschaltung an das
öffentliche Telekommunikationsnetz genehmigt.
Approvazione—I modelli che sono dotato con le interfacce di FXO sono stato approvato per
collegamento alla rete di telecomunicazion pubblica.
Aprobación—Los modelos que se equipan los interfaces de FXO se han aprobado para la con-
exión a la red de telecomunicación pública.
Approbation—Des modéles qui sont équipés des interfaces de FXO ont été approuvés pour le
raccordement au réseau de télécommunication public.
Part Number: 07MSN4000-QS, Rev. D
Revised: February 9, 2012
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4110 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Patton electronics 4110 Series

  • Page 1: Quick Start Guide

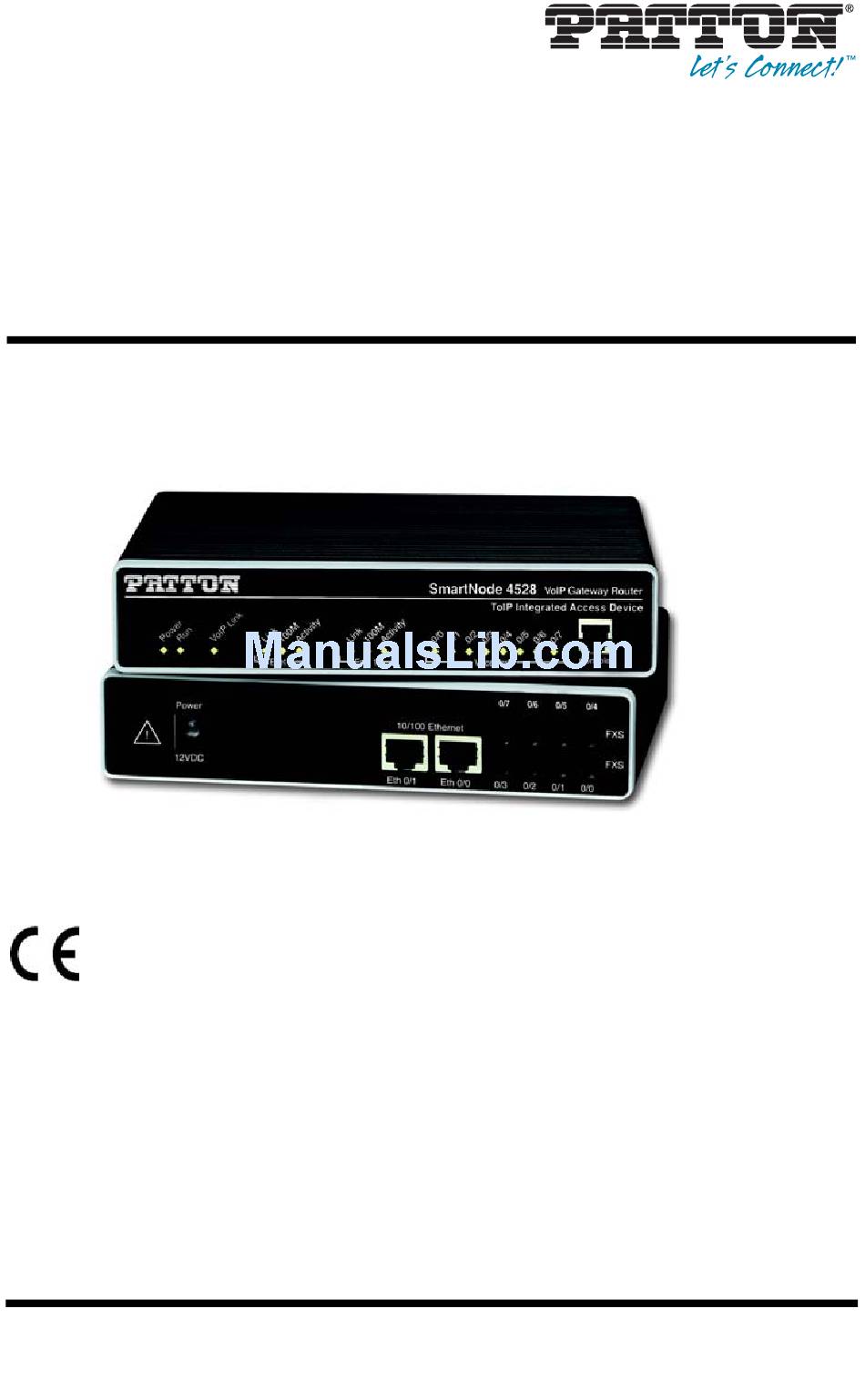

    SmartNode 4520 and 4110 Series VoIP Gateway Routers Quick Start Guide Approval—Models that are equipped with FXO interfaces have been approved for connection to the public telecommunication network. Zulassung—Modelle, die mit FXO Schnittstellen ausgerüstet sind, sind für Anschaltung an das öffentliche Telekommunikationsnetz genehmigt.
