For Quick
Start Installation

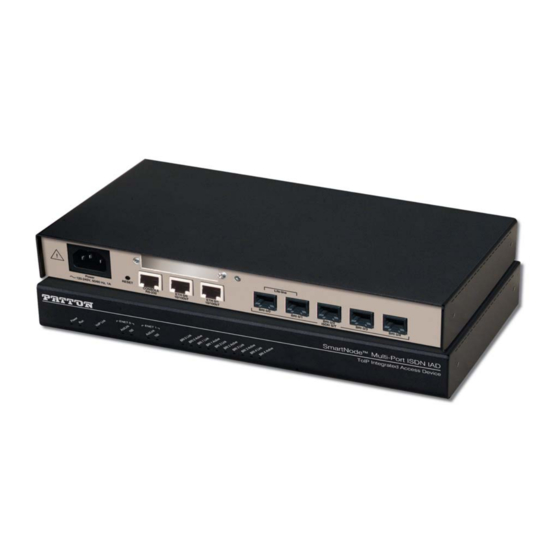

SmartNode 4630 Series
ISDN BRI S0 VoIP Gateway Router
Getting Started Guide
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail:
support@patton.com
WWW:
www.patton.com
Document Number: 13221U1-001 Rev. D
Part Number: 07MSN4630-GS
Revised: November 17, 2008
Advertisement
Table of Contents
Related Manuals for Patton electronics 4630 Series
Summary of Contents for Patton electronics 4630 Series

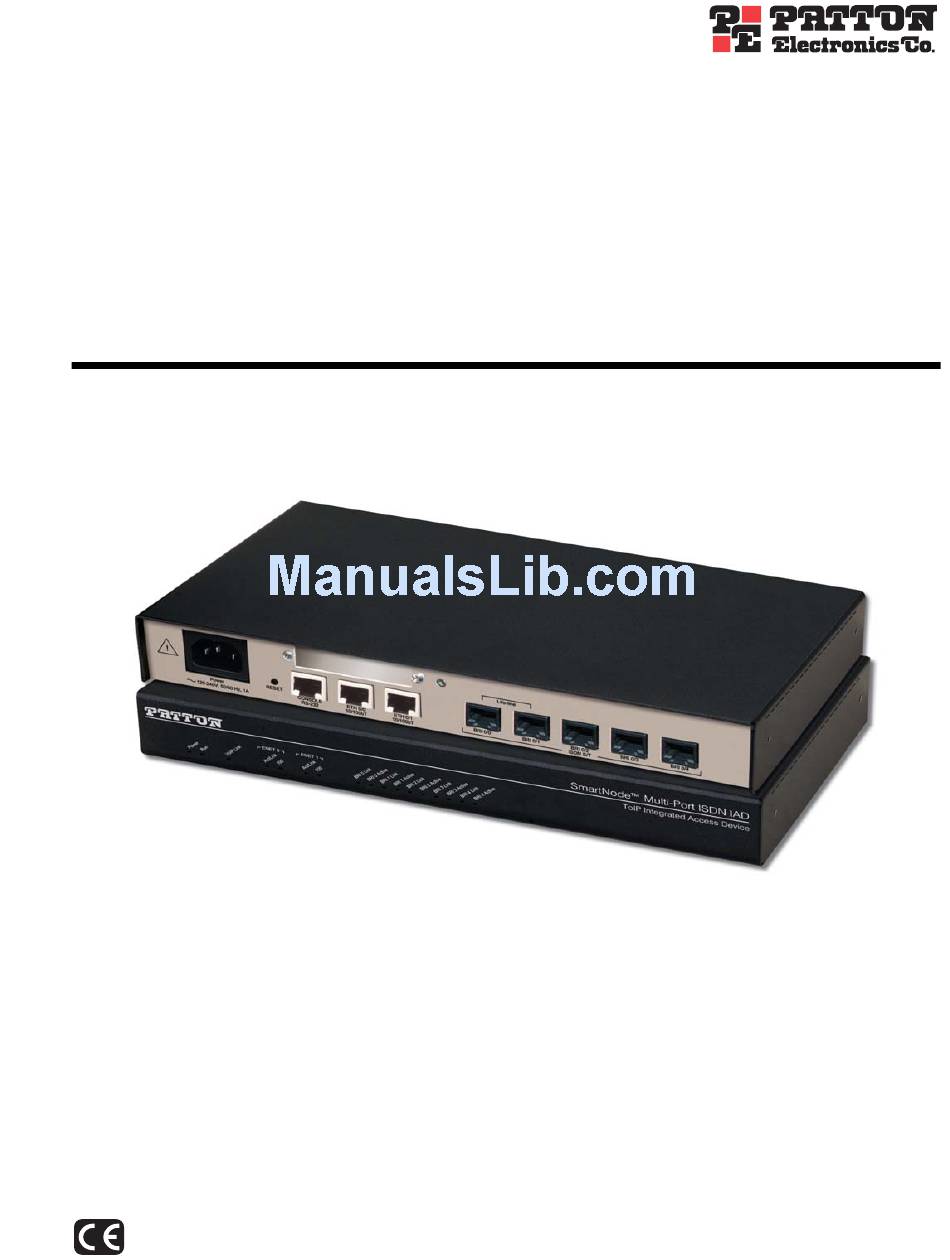

- Page 1 For Quick Start Installation SmartNode 4630 Series ISDN BRI S0 VoIP Gateway Router Getting Started Guide Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com WWW: www.patton.com Document Number: 13221U1-001 Rev. D Part Number: 07MSN4630-GS Revised: November 17, 2008...
- Page 2 Patton Electronics Company, Inc. 7622 Rickenbacker Drive Gaithersburg, MD 20879 USA Tel: +1 (301) 975-1000 Fax: +1 (301) 869-9293 Support: +1 (301) 975-1007 Web: E-mail: Trademark Statement The terms SmartNode, SmartWare and SmartView are trademarks of Patton Electronics Company. All other trademarks presented in this document are the property of their respective owners.
-
Page 3: Summary Table Of Contents
Summary Table of Contents General information... 13 Applications overview... 19 SmartNode installation... 22 Initial configuration ... 27 Contacting Patton for assistance Compliance information ... 36 Specifications ... 39 Cabling ... 43 Port pin-outs ... 47 SmartNode 4630 factory configuration End user license agreement ... -
Page 4: Table Of Contents
Table of Contents Summary Table of Contents Table of Contents ... 4 List of Figures ... 7 List of Tables ... 8 About this guide ... 9 Audience... 9 Structure... 9 Precautions ... 10 Safety when working with electricity General observations ...11 Typographical conventions used in this General conventions... - Page 5 SmartNode 4630 Getting Started Guide Configuring the desired IP address Factory-default IP settings ...29 Login ...29 Changing the WAN IP address Connecting the SmartNode to the network Loading the configuration (optional) Additional information...32 Contacting Patton for assistance Introduction ...34 Contact information...34 Patton support headquarters in the USA Alternate Patton support for Europe, Middle East, and Africa (EMEA)
- Page 6 SmartNode 4630 Getting Started Guide Console ...44 Ethernet ...45 ISDN BRI ...46 Port pin-outs ... 47 Introduction ...48 Console port...48 Ethernet ...48 ISDN BRI 0/0 (NT/Net or TE/User) ISDN BRI 0/1 .. 0/3 (TE/Usr or SmartNode 4630 factory configuration Introduction ...51 End user license agreement ...
-
Page 7: List Of Figures
List of Figures SmartNode 4630 ............... 14 SN4630 rear panel . -
Page 8: List Of Tables
List of Tables General conventions ..............12 Rear panel ports . -
Page 9: About This Guide
About this guide This guide describes the SmartNode 4630 hardware, installation and basic configuration. For detailed software configuration information refer to the SmartWare Software Configuration Guide and the available Configura- tion Notes. Audience This guide is intended for the following users: •... -
Page 10: Precautions
SmartNode 4630 Getting Started Guide Precautions Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential problems. Warnings are intended to prevent safety hazards that could result in per- sonal injury. -
Page 11: Safety When Working With Electricity
SmartNode 4630 Getting Started Guide Safety when working with electricity • This device contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service personnel. WARNING Mains Voltage: Do not open the case the when the power cord is attached. •... -
Page 12: Typographical Conventions Used In This Document
SmartNode 4630 Getting Started Guide Typographical conventions used in this document This section describes the typographical conventions and terms used in this guide. General conventions The procedures described in this manual use the following text conventions: Convention Indicates a cross-reference hyperlink that points to a figure, graphic, table, or sec- Garamond blue type tion heading. -
Page 13: General Information
Chapter 1 General information Chapter contents SmartNode 4630 overview ...14 SmartNode 4630 rear panel SmartNode 4630 front panel ...15 ...17... -
Page 14: Smartnode 4630 Overview
(BRI). This combination allows you to leverage low-cost Internet Telephony on existing ISDN Phones and PBX equipment for complete SoHo and branch office voice and data connectivity. The SmartNode 4630 series consists of two models: the SN4634 and SN4638. Both models come equipped with two 10/100Base-T Ethernet ports. -
Page 15: Smartnode 4630 Rear Panel
SmartNode 4630 Getting Started Guide SmartNode 4630 rear panel The SmartNode 4630 is a compact VoIP Gateway Router that supports eight VoIP calls on five ISDN BRI ports (see figure 2). The SmartNode 4630 rear panel ports are described in Power (~120–240V, 50/60 Hz, 1A) RESET... - Page 16 SmartNode 4630 Getting Started Guide Port BRI 0/1 ISDN BRI NT/TE port, RJ-45 socket S0 (S/T) interface (see SmartNode with an ISDN device over an S/T bus, e.g. a PBX or an NT. The inter- face may be used as fallback if connected to an NT. The port can be switched between TE and NT mode.The interface is internally terminated with 100 Ohm.
-
Page 17: Smartnode 4630 Front Panel
SmartNode 4630 Getting Started Guide Power VoIP Link ENET 0 ENET 0 ENET 0 Act/Link Act/Link SmartNode 4630 front panel Figure 3 shows SmartNode 4630 LEDs, the LED definitions are listed in Note If an error occurs, all LEDs will flash once per second. Power When lit, indicates power is applied. - Page 18 SmartNode 4630 Getting Started Guide Table 3. SmartNode 4630 LED definitions (Continued) VoIP Link On indicates the gateway is registered to an H.323 gatekeeper/SIP server, or, • in the case of direct routing, has at least one active VoIP connection. Off indicates the unit is not configured or registered, or has no active direct- •...
-
Page 19: Applications Overview
Chapter 2 Applications overview Chapter contents Introduction ...20 Application—Edge intelligence of enterprise Application—Multi-service ISDN Internet telephony IAD communication...20 ...21... -
Page 20: Introduction
SmartNode 4630 Getting Started Guide Introduction Patton’s SmartNode VoIP Media Gateway Routers deliver the features you need for advanced multiservice voice and data network applications. They combine high quality voice-over-IP with powerful quality of service routing functions to build professional and reliable VoIP and data networks. This chapter describes typical applications for which this SmartNode is uniquely suited. -
Page 21: Application-Multi-Service Isdn Internet Telephony Iad
IP PBX or on the legacy PBX. Application—Multi-service ISDN Internet telephony IAD The SmartNode 4630 Series can be used to make and receive calls to and from the public ISDN network and Internet Telephony services on any ISDN Terminal (Phone or PBX) (see urable routing tables, an outbound call can be directed to the local PSTN connection or to an Internet tele- phony service provider (ISTP). -
Page 22: Smartnode Installation
Chapter 3 SmartNode installation Chapter contents Planning the installation ...23 Site log ...23 Network information ...23 Network Diagram ...23 IP related information ...23 Software tools ...24 Power source ...24 Location and mounting requirements Installing the gateway router...24 Placing the SmartNode ...24 Installing cables ...24... -
Page 23: Planning The Installation
SmartNode 4630 Getting Started Guide Planning the installation Before installing the gateway router device, the following tasks should be completed: • Create a network diagram (see section • Gather IP related information (see section • Install the hardware and software needed to configure the SmartNode. (See section page 24) •... -
Page 24: Software Tools
SmartNode 4630 Getting Started Guide • IP addresses of central H.323 gatekeeper (if used) • IP addresses and/or URL of SIP servers or Internet telephony services (if used) • Login and password for PPPoE • Login and password for SIP or H.323 based telephony services •... -
Page 25: Connecting Isdn Terminals And Nt To The Smartnode's Isdn Bri Ports
SmartNode 4630 Getting Started Guide Connect the cables in the following order: The interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt- age, current, anticipated temperature, flammability, and CAUTION mechanical serviceability. -
Page 26: Connecting The Power Supply
SmartNode 4630 Getting Started Guide Connecting the power supply Do the following to connect the main power to the Model 4630: Note Do not connect the power cord to the AC power outlet at this time. 1. Insert the female end of the AC power to the mains port (see The internal power supply automatically adjusts to accept an input voltage from 100 to 240 VAC (50/60 Hz). -
Page 27: Initial Configuration
Chapter 4 Initial configuration Chapter contents Introduction ...28 Connecting the SmartNode to your laptop Configuring the desired IP address Factory-default IP settings Login ...29 Changing the WAN IP address Connecting the SmartNode to the network Loading the configuration (optional) Additional information...32 PC...28 ...29... -
Page 28: Introduction
Network Termination Device and not connected directly to an outside POTS line. CAUTION The SmartNode 4630 Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through cables for host or hub/switch connections (see Laptop PC Figure 7. Connecting the SmartNode to your laptop PC The SmartNode comes with a built-in DHCP server to simplify configuration. -
Page 29: Configuring The Desired Ip Address
SmartNode 4630 Getting Started Guide SmartNode will provide the PC with an IP address. You can check the connection to the SmartNode by exe- cuting the ping command from the PC command window as follows: ping 192.168.1.1 Configuring the desired IP address Factory-default IP settings The factory default configuration for the Ethernet interface IP addresses and network masks are listed in Both Ethernet interfaces are activated upon power-up. -
Page 30: Connecting The Smartnode To The Network
In general, the SmartNode will connect to the network via the WAN (ETH 0/0) port. This enables the Smart- Node to offer routing services to the PC hosts on LAN (ETH 0/1) port. The SmartNode 4630 Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through or crossover cables for host or hub/ switch connections (see figure... -
Page 31: Loading The Configuration (Optional)
SmartNode 4630 Getting Started Guide You can check the connection with the ping command from the SmartNode to another host on the network. 172.16.1.99(if-ip)[eth0]#ping <IP Address of the host> Note If the WAN address is not set to DHCP, to ping a device outside your local LAN you must first configure the default gateway. -
Page 32: Additional Information
SmartNode 4630 Getting Started Guide 172.16.1.99(if-ip)[eth0]#reload Running configuration has been changed. Do you want to copy the 'running-config' to the 'startup-config'? Press 'yes' to store, 'no' to drop changes : no Press 'yes' to restart, 'no' to cancel : yes The system is going down Additional information For detailed information about configuring and operating guidance, set up procedures, and troubleshooting,... -
Page 33: Contacting Patton For Assistance
Chapter 5 Contacting Patton for assistance Chapter contents Introduction ...34 Contact information...34 Patton support headquarters in the USA Alternate Patton support for Europe, Middle East, and Africa (EMEA) Warranty Service and Returned Merchandise Authorizations Warranty coverage ...34 Out-of-warranty service Returns for credit ...35 Return for credit policy RMA numbers... -
Page 34: Introduction
SmartNode 4630 Getting Started Guide Introduction This chapter contains the following information: • “Contact information”—describes how to contact Patton technical support for assistance. • “Warranty Service and Returned Merchandise Authorizations warranty and obtaining a return merchandise authorization (RMA). Contact information Patton Electronics offers a wide array of free technical services. -
Page 35: Out-Of-Warranty Service
SmartNode 4630 Getting Started Guide Out-of-warranty service Patton services what we sell, no matter how you acquired it, including malfunctioning products that are no longer under warranty. Our products have a flat fee for repairs. Units damaged by lightning or other catastro- phes may require replacement. -
Page 36: Compliance Information
Appendix A Compliance information Chapter contents Compliance ...37 ...37 Safety ...37 PSTN Regulatory ...37 Radio and TV Interference ...37 CE Declaration of Conformity Authorized European Representative ISDN compliance...38 ...38 ...38... -
Page 37: Compliance
SmartNode 4630 Getting Started Guide Compliance • FCC Part 15, Class A • EN55022, Class A • EN55024 Safety • UL 60950-1/CSA C22.2 N0. 60950-1 • IEC/EN60950-1 • AS/NZS 60950-1 PSTN Regulatory • TBR3 • AS/ACIF S031 Radio and TV Interference The SmartNode router generates and uses radio frequency energy, and if not installed and used properly-that is, in strict accordance with the manufacturer’s instructions-may cause interference to radio and television reception. -
Page 38: Ce Declaration Of Conformity
SmartNode 4630 Getting Started Guide CE Declaration of Conformity This equipment conforms to the requirements of Council Directive 1999/5/EC on the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equipment and the mutual rec- ognition of their conformity. -
Page 39: Specifications
Appendix B Specifications Chapter contents DSP...40 Voice connectivity ...40 Data connectivity ...40 Voice processing (signalling dependent)...40 Fax and modem support...41 Voice signalling ...41 Voice routing—session router...41 IP services ...42 Management ...42 System ...42 Physical ...42... -
Page 40: B Specifications
SmartNode 4630 Getting Started Guide Note Refer to the software feature matrix for the most up-to-date specifications. One or two 4-channel DSP Voice connectivity 3 or 5 ISDN BRI S0 (S/T), 4-wire RJ45 ports NT/TE configurable per port Point-to-point, point-to-multipoint configurable Life-line bypass relay between BRI 0/0 and BRI 0/1 ports ISDN line power can be switched on per software per port Data connectivity... -
Page 41: Fax And Modem Support
SmartNode 4630 Getting Started Guide Fax and modem support Automatic fax and modem detection Codec fallback for modem-bypass T.38 Fax-Relay (Gr. 3 Fax, 9.6 k, 14.4 k) G.711 Fax-Bypass Voice signalling SIPv2 H.323v4 MGCP/IUA SIP call transfer, redirect Overlap or en-bloc dialing DTMF in-band, out-of-band Configurable progress tones Voice routing—session router... -
Page 42: Ip Services
SmartNode 4630 Getting Started Guide IP services IPv4 router; RIPv1, v2 (RFC 1058 and 2453) Programmable static routes ICMP redirect (RFC 792); Packet fragmentation DiffServe/ToS set or queue per header bits Pocket Policing discards excess traffic 802.1p VLAN tagging IPSEC AH & ESP Modes Manual Key;... - Page 43 Appendix C Cabling Chapter contents Introduction ...44 Console ...44 Ethernet ...45 ISDN BRI ...46...
-
Page 44: C Cabling
SmartNode 4630 Getting Started Guide Introduction This section provides information on the cables used to connect the SmartNode and the interface cards to the existing network infrastructure and to third party products. Console The SmartNode can be connected to a serial terminal over its serial console port, as depicted in The interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt- age, current, anticipated temperature, flammability, and... -
Page 45: Ethernet
SmartNode 4630 Getting Started Guide Ethernet Ethernet devices (10Base-T/100Base-T) are connected to the SmartNode over a cable with RJ-45 plugs. All Ethernet ports on the SN4630 are Auto-MDX use any straight or crossover cable to connect to hubs, switches, PCs or other devices. The interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt- age, current, anticipated temperature, flammability, and... -
Page 46: Isdn Bri
SmartNode 4630 Getting Started Guide ISDN BRI The ISDN ports are connected to ISDN terminals (Phones PBXs) or an ISDN NT using cables terminated with RJ-45 connectors. Use straight-though cables to connect to the S/T port of your NT or phones/PBX. The interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt- age, current, anticipated temperature, flammability, and... -
Page 47: Port Pinouts
Appendix D Port pin-outs Chapter contents Introduction ...48 Console port...48 Ethernet ...48 ISDN BRI 0/0 (NT/Net or TE/User) ISDN BRI 0/1 .. 0/3 (TE/Usr or port...48 NT/Net)...49... -
Page 48: D Port Pin-Outs
SmartNode 4630 Getting Started Guide Introduction This section provides pin-out information for the ports of the SmartNode. Console port Note N/C means no internal electrical connection. Ethernet Note Pins not listed are not used. ISDN BRI 0/0 (NT/Net or TE/User) port The BRI phone port uses an 8-pin RJ-45 connector (the pinout is shown in Introduction 8–RTS (N/C) -
Page 49: Rj-45 Socket
SmartNode 4630 Getting Started Guide Note Pins not listed are not used. Note All pins between the port BRI 0/0 and the port BRI 0/1 are connected during power failure. Fallback relay operation: • When the unit is not powered, the fallback relay connects pins 3, 4, 5, and 6 of the net and the user ports (fallback) together. -
Page 50: Smartnode 4630 Factory Configuration
Appendix E SmartNode 4630 factory configuration Chapter contents Introduction ...51... -
Page 51: Introduction
SmartNode 4630 Getting Started Guide Introduction The factory configuration settings for SmartNode 4630 are as follows: #----------------------------------------------------------------# # 4110/4520/4630 Series # R3.xx BUILDxxxxx # 2005-01-18T00:00:00 # Factory configuration file #----------------------------------------------------------------# profile napt NAPT profile dhcp-server DHCP network 192.168.1.0 255.255.255.0 include 192.168.1.10 192.168.1.19 lease 2 hours default-router 192.168.1.1... -
Page 52: End User License Agreement
Appendix F End user license agreement Chapter contents End User License Agreement ...53 1. Definitions ...53 2. Title ...53 3. Term ...53 4. Grant of License ...53 5. Warranty ...53 6. Termination ...54 7. Other licenses ...54... -
Page 53: End User License Agreement
SmartNode 4630 Getting Started Guide End User License Agreement By opening this package, operating the Designated Equipment or downloading the Program(s) electronically, the End User agrees to the following conditions: 1. Definitions Effective Date shall mean the earliest date of purchase or download of a product containing the Patton Electronics Company Program(s) or the Program(s) themselves. -
Page 54: Termination
SmartNode 4630 Getting Started Guide If the Program(s) are acquired by or on behalf of a unit or agency of the United States Government, the Gov- ernment agrees that such Program(s) are commercial computer software or computer software documentation and that, absent a written agreement to the contrary, the Government’s rights with respect to such Program(s) are limited by the terms of this Agreement, pursuant to Federal Acquisition Regulations 12.212(a) and/or DEARS 227.7202-1(a) and/or sub-paragraphs (a) through (d) of the “Commercial Computer Software - Restricted...
