Patton electronics 4520 Series Specification Sheet

The SmartNode 4520 VoIP Gateway Router combines IP routing, VPN/Security, and Quality of Service for up to 8 transparent
voice, fax, and data over any IP or PSTN network. Leverage low-cost packet-voice and IP services for complete branch office
voice and data connectivity.
Up to 8 analog ports
Compact, reliable stand-alone VoIP gateway with
different port options. Supports simultaneous
voice or fax calls on all ports.
Toll-Quality VoIP
Advanced traffic management and shaping, com-
bined with Patton's patent-pending DownStream
QoS enforce uninterrupted toll-quality voice over
™
best-effort networks.
Advanced Local Call Switching
Virtual interfaces and routing tables provide
industry leading flexibility in call handling pro-
gramming. Local call switching, soft fallback to
alternative routes. Simultaneously connects to
multiple SIP services/IP PBXs.
Complete SIP and T.38 support
Supports the complete range of industry stan-
dard VoIP: SIP, H.323, T.38 fax, fax and modem
handling, DTMF relay. Codecs G.729, G.723,
and so on.
Easy Management & Provisioning
Web-based management, SNMP, command line
interface. Automated mass provisioning for effi-
cient large-scale deployments.
Outstanding Interoperability
Proven integration for voice and T.38 fax with
leading IP PBX systems and soft switch vendors.
VoIP
Multi-Port FXS/FXO VoIP
Gateway Router

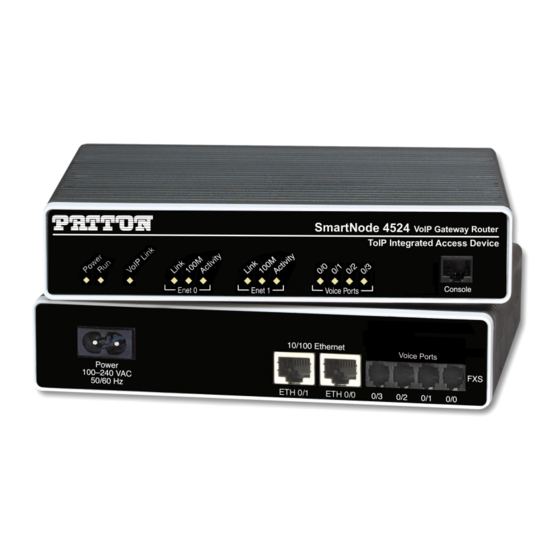

SmartNode 4520 Series
™
C
onnect with confidence using the
SmartNode 4520
Integrating a complete enterprise
router with local PSTN and remote packet-
voice, the SN4520 supports eight simultane-
ous calls for a new standard in toll-bypass,
remote/branch office connectivity, and
enhanced carrier services.
Perfect for the remote office, branch office,
or PBX/switch extension, the SmartNode
4520 integrates all your voice, fax, and LAN
traffic for seamless and secure networking.
With its FXS analog ports the SN4520 con-
nects to any legacy telephone or PBX and
provides dial-tone, ringing, and caller-ID.
When equipped with FXO ports, the local
Proven
Patton design,
Patton supported
Front panel indicators
show system status
at-a-glance
PSTN can be accessed enabling local calling
and enhanced toll-bypass service.
Series Router.
With dual 10/100 Ethernet ports, the SN4520
provides guaranteed Quality of Service while
passing LAN traffic at wire-speed. Voice traf-
fic is prioritized while
LAN/IP traffic shaping
permits efficient access
to the Internet and cor-
porate
a complete enterprise
router, the SN4520 sup-
ports DHCP, NAT, Firewall/ACL, and PPPoE
clients. While optional IPsec VPN and VLAN
features tunnel data and AES/3DES ensures
secure voice over the public network.
Visit www.patton.com
Dual 10/100
Ethernet ports
networks. As
Special Rates Available
Call for Details
for more information.
EIA-232
console port
Up to eight
analog ports
