Left LED
LAN 2/3/4
(Green)
Right LED
(Green)
Left LED
WAN 2
(Green)
Right LED
(Green)

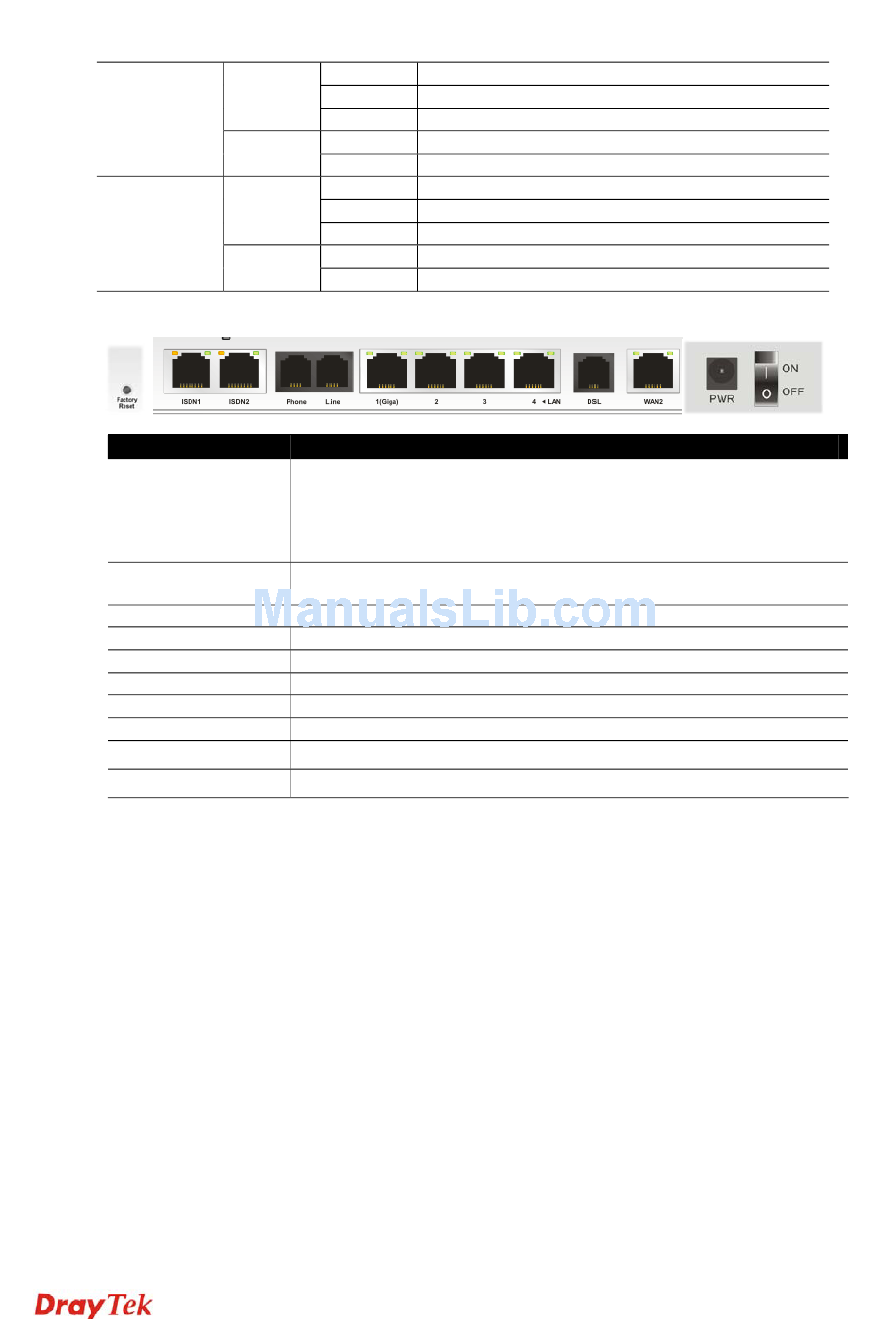

Interface
Factory Reset
ISDN1/2
Phone
Line
LAN (1-4)
DSL
WAN 2
USB
PWR
ON/OFF
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is connected with 10Mbps.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is connected with 10Mbps.
Description
Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and keep
for more than 5 seconds. When you see the ACT LED begins to blink rapidly
than usual, release the button. Then the router will restart with the factory
default configuration.
Connecter for ISDN line or ISDN phone adapter in particular condition.
Refer to section 2.2 for more details.
Connecter for PSTN phone.
Connector for PSTN life line.
Connecters for local networked devices.
Connecter for accessing the Internet through ADSL2/2+.
Connecter for remote networked devices.
Connecter for a USB device (for 3G USB Modem or printer).
Connecter for a power adapter.
Power Switch.
