Moog Videolarm AP16CS-3ST Specification page 5

CORROSION RESISTANT CONNECTOR
All electrical connections are made via the single corrosion resistant
connector on the rear panel. A mating connector and crimp pins are supplied.
The pins will accept wire from a minimum of 0.5 mm2 (20 AWG) to a
maximum of 1.5 mm2 (16 AWG). Crimp the wire to the connector using an
appropriate crimp tool. Information on sync and video hookups is given in the
basic camera instructions.
115 Vac VERSION
D - Focus (BLUE)
F - Video Shield
}
Conductor (RG59)
G - Video Center
J - Earth Ground (GREEN)
K - AC Neutral (WHITE)
L - AC Hot (BLACK)
P - Zoom (RED)
R - Len Common (BROWN)
115 Vac Input, 24 Vac Camera

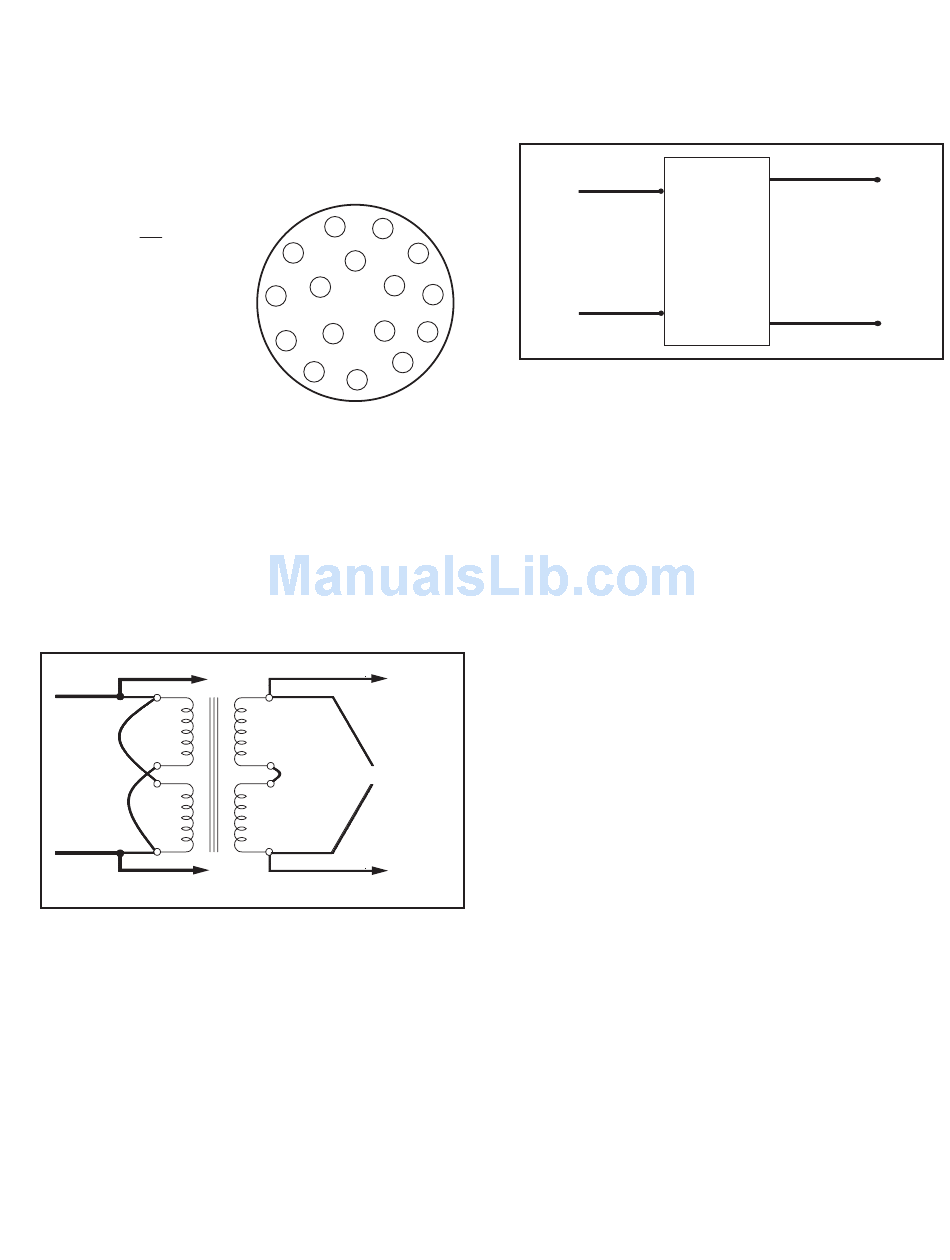

The 115 Vac version uses an internal transformer (Figure 3).
1. Connect the supply (115 Vac) to the primary flying leads of the transformer
(white wire/pin 1, black wire/pin 6). Use the wire nuts provided for this
connection.
2. Connect the secondary flying leads (white/black striped wires/pins 7 and 12)
to the camera's 24 volt input
.
To Camera
Black
6
5
115 VAC
Input
2
1
White
To Camera
Figure 5
Figure 3
L
A
K
B
M
N
S
J
P
R
H
E
G
F
(Wire Side)
Mate Connector
RG59-18/6cond Control Cable
To Heater/Defogger
Red
12
White/
Black
Striped
11
24 VAC Camera
8
White/
Black
7
Striped
Red
To Heater/Defogger
24 Vac VERSION
The 24 Vac version is a non-transformer unit (Figure 6).
1. Connect the supply (24 Vac) to the corrosion resistant connector using
appropriate connectors. Refer to Figure 4 at left.
2. Connect power leads out of the corrosion resistant connector to the
camera (white/black striped wires).
Black
24 VAC
Input
C
White
D
Figure 6
PRESSURIZATION
Pressurized container. DO NOT exceed 70kPa (10 PSIG) at
CAUTION:
one atmosphere. Refer servicing to qualified service personnel. The
housing is fitted with a standard Schrader valve to allow pressurization
with dry nitrogen to 5 lb PSI nominal at one atmosphere. An over
pressurization safety relief valve is mounted on the rear cap along
with the Schrader valve. The purpose of the relief valve is to provide a
safety pressure blow off should internal pressure exceed 140 kPa (20
PSIG) at one atmosphere. A pressurization warning label is visible on
the back of housing.
1. Place cradle into housing and push cradle forward until it is against
front lens.
2. Tighten phillips screw at the top of the housing until screw is against
housing.
3. Tighten retaining screw located at the bottom of housing.
4. Adjust cradle to desired position.
5. Add 10psi nitrogen.
6. Connect housing to power.
White/Black
24 VAC
Camera
Pressurized
Connector
White/Black
