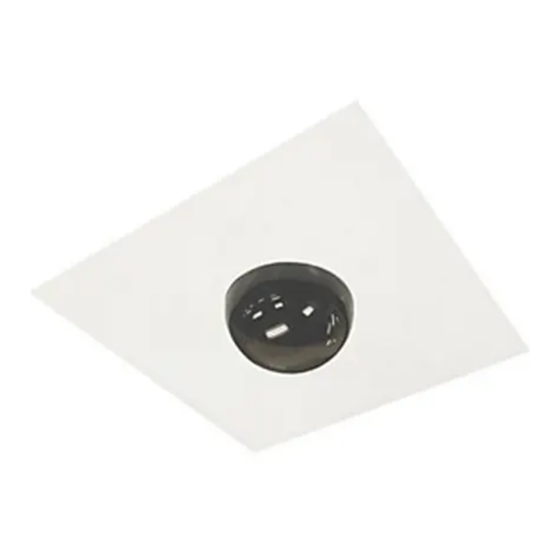

Ceiling Dome Housing
Installation and Operation Instructions for the following models:
OH081TL
8" Drop Ceiling dome housing, tinted dome, (1) xed camera bracket,
liner, and dust cover, MCL 8"
OH081D
8" Drop Ceiling dummy dome
OH081CL
8" Drop Ceiling dome housing, clear dome, (1) xed camera bracket,
liner, and dust cover, MCL 8"
Before attempting to connect or operate this product,
please read these instructions completely.
© 2009, Videolarm, Inc. All Rights Reserved
www.videolarm.com
CERTIFIED
81-IN5271
01-12-2009
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm Moog OH081TL
Summary of Contents for Moog Videolarm Moog OH081TL
- Page 1 © 2009, Videolarm, Inc. All Rights Reserved O H 0 8 1 © 2009, Videolarm, Inc. All Rights Reserved Ceiling Dome Housing www.videolarm.com Installation and Operation Instructions for the following models: OH081TL 8” Drop Ceiling dome housing, tinted dome, (1) xed camera bracket, liner, and dust cover, MCL 8”...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE Do not block any of the ventilation openings. -
Page 3: Limited Warranty
LIMITEDWARRANTY FOR VIDEOLARM INC. PRODUCTS VIDEOLARMINC. warrantsthis Productto be free from defectsin materialor workmanship,as follows: PRODUCTCATEGORY PARTS LABOR All Enclosures and Electronics Five (5) Years Five (5) Years Pan/Tilts Three (3) Years **6 months if used in autoscan Three (3) Years **6 months if used in autoscan /tour operation /tour operation Poles/PoleEvators... -
Page 4: Electrical Specifications
Electrical Specifications Contents In Box OH081 ( INDOOR ONLY ) No power options provided. Power required for camera only. Power 24VAC. English Class 2 Power Supply Only Ningunas opciones de la energía proporcionaron. Energía requerida para la cámara Español fotográfica solamente. Energía 24VAC. - Page 5 Slip the curved end of the camera mount over the bar Remove the ceiling tile in the desired location on the camera bracket. The slotted end must face the and place the dome in the ceiling grid. same way as the foam supports. •...
-
Page 6: Replacement Parts List
Replacement Parts List OH081TL Parts List Description Replacement Part Number Tinted Dome and White Acrylic Sheet RCOH081 Liner RCOH081 Camera Bracket RPOH08030 Camera Mount Bracket RPOH08030 1/4-20 Bolt RPOH08030 1/4-20x1/2” Wing Screw RPOH08030 Black Dust Cover RPOH08040... -
Page 7: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products by offering some of the most impressive warranty plans available: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on all camera systems (SView, QView, Warriors), and InfraRed Illuminators.
