Moog Videolarm AD16CH2 Product Instructions

Specifi cation
Number
INSTRUCTIONS 5265
MODEL: Outdoor Dust Free Housing
AD16CH2
INCLUDES MODEL: AD16CH2
GENERAL INSTRUCTIONS:
!
Use only with Class 2 Power Supply
HARDWARE KIT
3 Cable Tie
2 BHCS, 1⁄4-20 x 1⁄4-inch
1 BHCS, 1⁄4-20 x 5⁄8-inch
1 BHCS, 1⁄4-20 x 3⁄4-inch
1 BHCS, 1⁄4-20 x 1⁄2-inch
1 BHCS, 1⁄4-20 x 3⁄8-inch
1 BHCS, 1⁄4-20 x 11⁄4-inch
2 0.4 mm (0.016-inch) Plastic Spacer
1 1.65 mm (0.065-inch) Plastic Spacer
1 3.9 mm (0.154-inch) Plastic Spacer
1 7.4 mm (0.292-inch) Plastic Spacer
1 9.8 mm (0.385-inch) Plastic Spacer
1 3⁄8-inch NPT Plug
2 Pull Seals
RATINGS
NEMA-3R and IP54
The HS9384 Series housings include a "breather" hole in the
front end cap. The "breather" hole prevents the accumulation
of moisture inside the housing when installed in areas of high
humidity. With the "breather" hole open, the AD16 housing meets
the enclosure rating requirements of NEMA-3R and IP54.
NEMA-6P and IP68
For installations requiring an enclosure rating of NEMA-6P or
IP68, the breather hole must be plugged using the pull seal (Part
No. 315 2569 001) provided in the hardware kit. Refer to Final
Assembly under INSTALLATION for proper installation.
NOTE: Do Not Exceed 30 VAC Input.
Operation above 30 VAC violates low voltage operation
(Class 2 Specifi cations). Normal operation is 24 VAC.
CAMERA INSTALLATION
TOOLS REQUIRED
Phillips head screwdriver
5⁄32-inch (or 4 mm) hex wrench
5⁄16-inch (or 8 mm) hex wrench
Wire cutter/stripper/crimper tool
2525 Park Central Blvd. • Decatur, Ga 30035 • (770) 987-7550 • 800-554-1124 U.S. & Canada • Fax 800-826-0366 • www.videolarm.com
Cat a log
Section
1b
Effective Date: April 30, 2003
PRODUCT INSTRUCTIONS

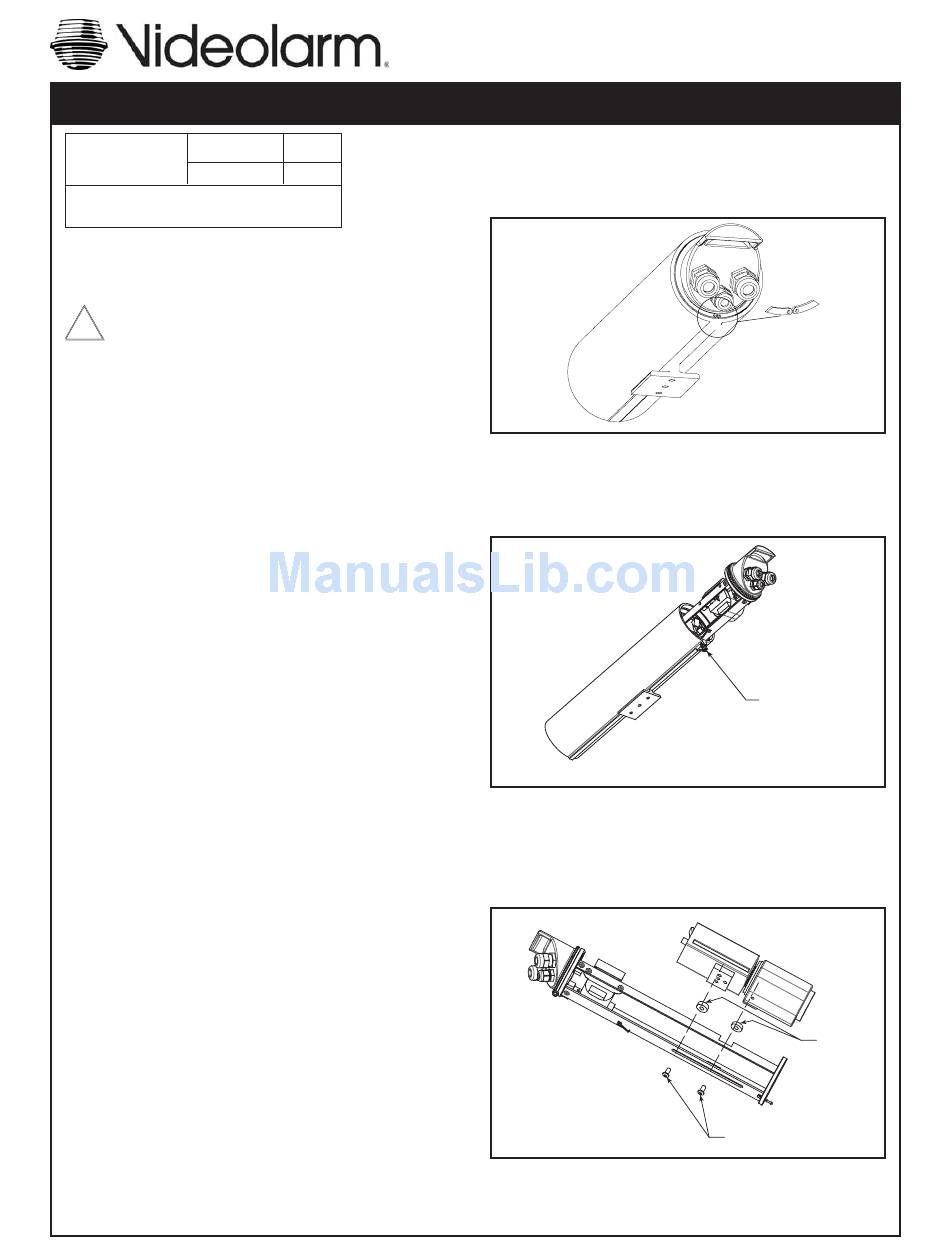

1. Remove the cradle from the housing by lowering the retaining
screw completely on the bottom rear of the housing.
2. Turn slot on the retaining ring, located on the rear cap, to the
bottom of the housing (Figure 1).
Figure 1
3. Remove the cradle assembly by pushing gently on the metal
part of front cap and simultaneously grasping the rear handle and
pulling the cradle assembly out of the housing. Be sure to keep
the edges of the end caps clean and free of scratches (Figure 2).
Figure 2
4. Place the camera/lens combination into the cradle assembly.
Position the camera/lens 1 mm (0.04-inch) away from the
faceplate. The camera/lens is secured to the cradle with a
1⁄4-20 button head cap screw (BHCS) and the appropriate
plastic spacer (Figure 3).
Figure 3
Retention Screw
Spacers
1/4-20 Screws
