81-IN5218-06154 WARRIOR 5
WS5-XXXX
REVISION DATE: August 3, 2004
TABLE OF CONTENTS
CABLE AND POWER GUIDELINES
(Detailed info on Page 11)
This chart shows the proper current needed for power supplies
for Warrior Series cameras. Use Class 2 Power only. Input voltage
must be between 12-28 VDC or 15-28 VAC.
VOLTAGE
CURRENT
12 VDC
350mA
24 VAC
202mA
Depending on the voltage being used, refer to one of the formulas
below to select the correct power supply for cameras connected in
parallel (positive to positive, negative to negative):
Total current for a 12 VDC system:
TOTAL CURRENT = (350mA x total number of cameras)
Total current for a 24 VAC system:
TOTAL CURRENT = (202mA x total number of cameras)
INSTALLATION PREPARATION
1. Determine the mounting location. Be sure that you'll be mounting
to a secure wall or ceiling, next to a stud.
2. Complete all wire and conduit runs prior to installation of the
housing.
INSTALLATION PROCEDURE

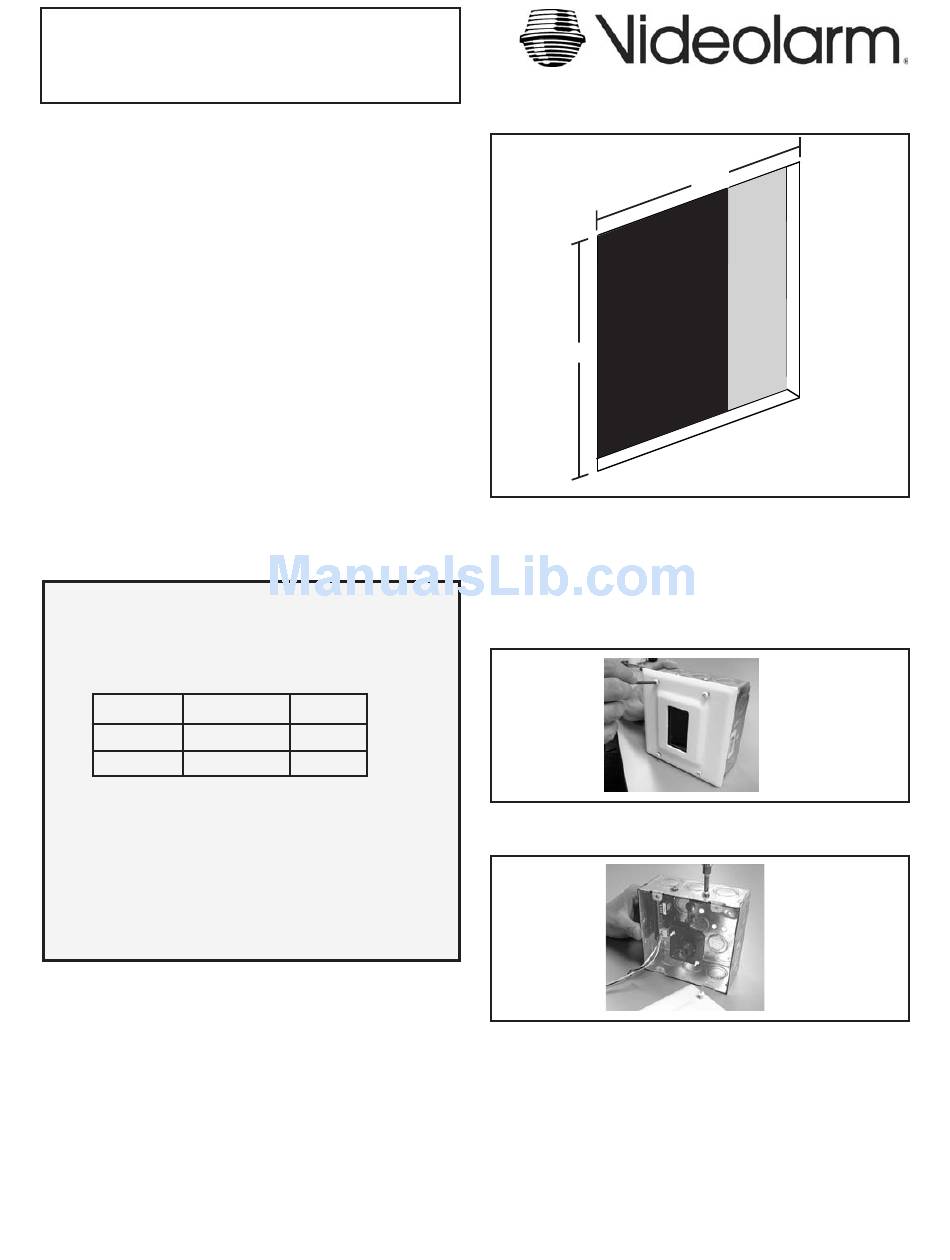

1. Cut a 4 3/4" x 4 3/4" square hole in the surface with one side
against the stud (Figure 1). If necessary, use the template
provided on the last page of these instructions.
1, 11
1
1
2
2
3
3
5
5
5
7
8
9
POWER
4.2W
4.8W
PRODUCT INSTRUCTIONS
Cutout
4 3/4"
Figure 1
NOTE: The double-gang box must be fl ush with the drywall.
Two sets of mounting holes are provided on the
sides of the gang box. Use either to ensure that the
box is fl ush with the drywall.
2. Using the security tool provided, loosen the (4) 8-32 security
fasteners and remove the face plate (Figure 2).
Figure 2
3. Loosen the (2) 8-32 screws holding the top of the camera bracket
and camera in place (Figure 3) and remove.
Figure 3
4. Position the double-gang box in the cutout against the stud and
mark the location of the two mounting holes on the side. Remove
the double-gang box.
5. Determine which side the conduit outlet will be located on: Top,
bottom, left, right, or back. Remove the desired conduit knockout.
CAUTION: TO PREVENT DAMAGE, THE CAMERA AND
BRACKET MUST BE REMOVED BEFORE
TAKING OUT THE CONDUIT KNOCKOUT.
4 3/4"
S
T
U
D
Advertisement
Table of Contents
Related Manuals for Moog Videolarm WS5-50NF
Summary of Contents for Moog Videolarm WS5-50NF
-
Page 1: Table Of Contents
81-IN5218-06154 WARRIOR 5 WS5-XXXX REVISION DATE: August 3, 2004 TABLE OF CONTENTS Cable and Power Guidelines Installation Preparation Installation Procedure Wiring Optional Warrior Test Monitor Cable 2 Camera Bracket Setup Camera Focusing Camera Settings Completion of Installation Window Guard™ Replacement NVT Instructions Warranty Information Service and Safeguard Information... -
Page 2: Wiring
WIRING (Figure 4) Use Class 2 Power only. Input voltage must be between 12-28 VDC or 15-28 VAC. 1. Connect the output of your Class 2 Power Supply to the terminal connectors on the PC Board inside the housing. Refer to the Troubleshooting section later in this instruction sheet for more information. -
Page 3: Camera Focusing
CAMERA FOCUSING (Figure 8) 1. The camera is factory equipped with a 3.6mm fi xed lens. A 2.5mm lens is also provided. To remove the 3.6mm lens, loosen the set screw and unscrew the lens counter-clockwise. 2. Fine focusing of the lens: Loosen the set screw in the lens mount and manually rotate the lens until a clear picture is achieved. - Page 4 MC CAMERA DIP SWITCH SETTINGS CHART SWITCH SETTING Flickerless Mode Setting this switch to "On" and switch 3 (MIRIS) to "Off" will help to reduce the fl icker in fl uorescent lights BLC (Back Light Helps prevent an object from being washed out when the Compensation) object is directly in front of a...
-
Page 5: Completion Of Installation
COMPLETION OF INSTALLATION 1. Once the proper viewing angle has been set, reattach the double- gang box to the stud using the (2) #10 x 1 1/2 mounting screws. Be sure that the hole cutout has clearance for the screws at the top outside surface of the gang box. - Page 6 Wiring Notes Wire — What to DO 1. DO use point-to-point Unshielded Twisted Pair wire, gauge 24 or thicker, stranded or solid, Category 2, 3, 4, or 5. 2. The video signal may co-exist in the same wire bundle as other video, telephone, data, control signals, or low-voltage power.
-
Page 7: Warranty Information
1. The shipping carton and packaging material. They are the safest material in which to make future shipments of the equipment. 2. These Installation and Operating Instructions. LIMITED WARRANTY FOR VIDEOLARM INC. PRODUCTS VIDEOLARM INC. warrants this Product to be free from defects in material or workmanship, as follows: PRODUCT CATEGORY PARTS All Enclosures and Electronics Three (3) Years Pan/Tilts Three (3) Years **6 months if used in autoscan Poles/PoleEvators Three (3) Years Warrior/Q-View/I.R. Illuminators... -
Page 8: Service And Safeguard Information
10 VAC or VDC. LINE LOCK All cameras are all shipped from the factory with the line lock function disabled. If your application requires Line Lock contact Videolarm. NVT TROUBLESHOOTING If you are experiencing problems, attempt to simplify your setup. Test each cable segment separately. - Page 9 If the voltage is greater than 1/2 volt, use an amplified receiver, such as the NV-652R, NV-862R, or NV-1662R. Alternately, remove the ground at one end (usually at the camera end). Be sure that floating the camera conforms to local/regional and National Electrical Codes.
- Page 10 NOTE: The above table is based on a "worst-case" power supply. Using a regulated or switching power supply can increase your cable distance. A CSA/UL listed Class 2 power supply must be used. Videolarm recommends its PS12 12 VDC 1000mA power supply for...
