D e p u t y D o m e
Bullet-Resistant Standard / Pressurized Dome
Installation and Operation Instructions for the following models:
DDW10CR1
DeputyDome™ Series, 10-gauge Steel Bullet-Resistant Outdoor
dome PTZ Camera System with 26x Day/Night Camera, onboard receiver
/driver, 120VAC heater Tough enough to stop a 9mm bullet
PDDW10CR1
(Pressurized Version)
DeputyDome™ Series, 10-gauge Steel Bullet-Resistant Outdoor
dome PTZ Camera System with 26x Day/Night Camera, onboard receiver
/driver, 120VAC heater Tough enough to stop a 9mm bullet
Before attempting to connect or operate this product,
please read these instructions completely.
© 2009-2010, Videolarm, Inc. All Right Reserved
Product Information for
IP Ready Software
|
1 . 8 0 0 . 5 5 4 . 1 1 2 4
|
w w w . v i d e o l a r m . c o m
www.videolarm.com
CERTIFIED
81-IN5210
10-07-2010
Advertisement
Table of Contents
Related Manuals for Moog Videolarm DDW10CR2
Summary of Contents for Moog Videolarm DDW10CR2

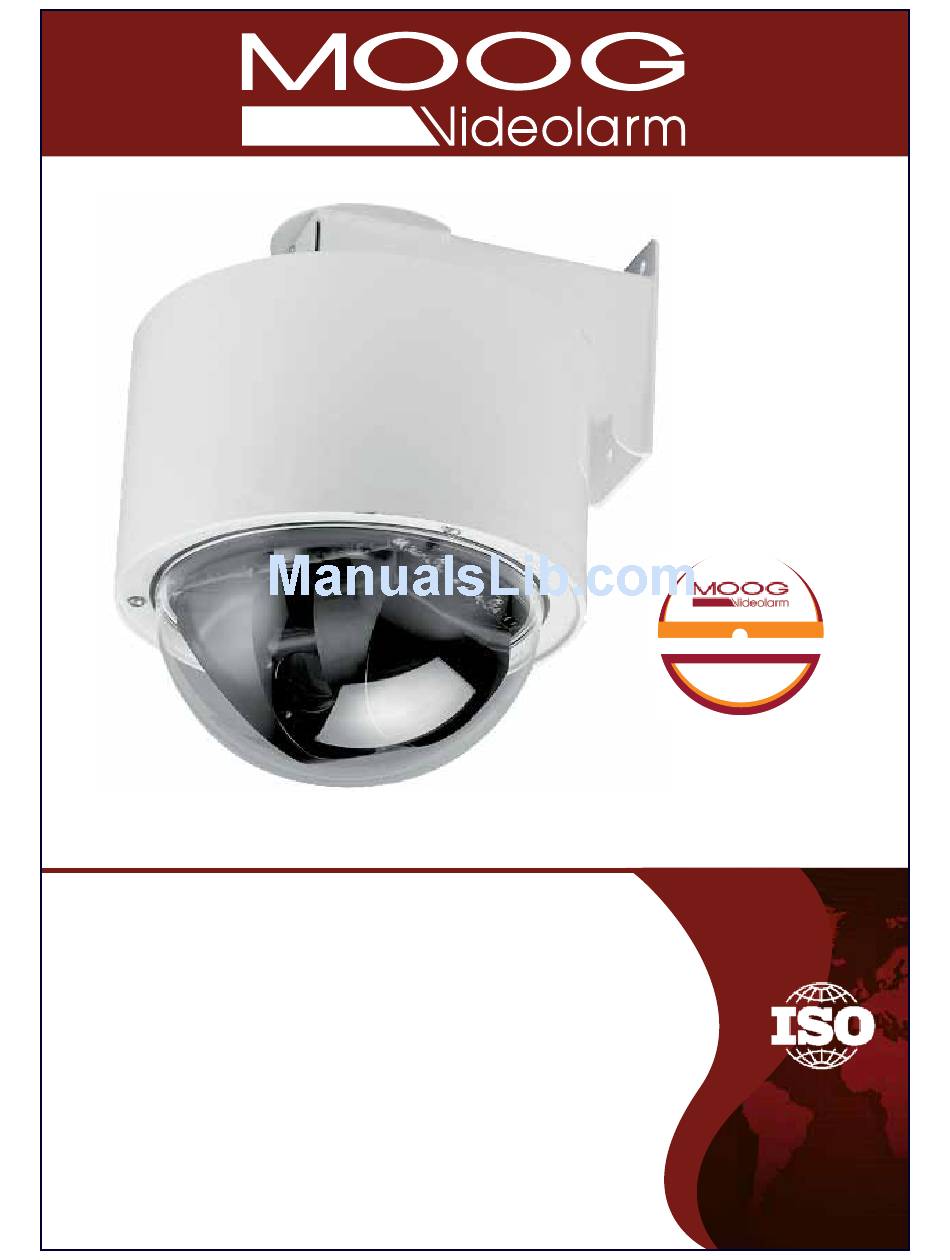

- Page 1 © 2009-2010, Moog Videolarm, Inc. All Rights Reserved D e p u t y D o m e Bullet-Resistant Standard / Pressurized Dome Installation and Operation Instructions for the following models: DDW10CR1 DeputyDome™ Series, 10-gauge Steel Bullet-Resistant Outdoor dome PTZ Camera System with 26x Day/Night Camera, onboard receiver...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings Follow all instructions. Do not use this apparatus near water. Clean only with damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. Cable Runs- All cable runs must be within permissible distance. -
Page 3: Limited Warranty
1. NOTIFICATIONOF CLAIMS: WARRANTYSERVICE: If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Videolarm but all claims for warranty service must be made within the warranty period. -
Page 4: Electrical Specifications
(Camera with hardwire pan/tilt) Power Source & Power Consumption (includes: heater, blower and camera) DDW10CR1 (N) 115 VAC, 90 vA, 0.8 Amps DDW10CR2 (N) 24 VAC, (Class 2), 90 vA, 3.75Amps (N) Network model CAMERA SPECIFICATIONS English Resolution - 470 TVL - NTSC, 460TVL - PAL Minimum Illumination - 1.0 1.0 Lux... - Page 5 Remove (2) tamper resistant with the security tool provided in the packet. • Quite (2) a pisón resistente con la herramienta de la seguridad proporcionada en el paquete. • Enlevez (2) le bourreur résistant avec l'outil de sécurité fourni dans le paquet.
- Page 6 Wiring for DDW10CR • Cableado para DDW10CR • Câblage pour DDW10CR • Verdrahtung für DDW10CR • Fiação para DDW10CR • Collegamenti per DDW10CR Video Shield Heater /Blower Heater /Blower Wiring for Pressurized Receiver model (PDDW10CR2) • Cableado para el modelo a presión del receptor (PDDW10CR2) •...
- Page 7 To remove Pan/Tilt assembly rmove the dome and liner • Para eliminar Pan / Inclinación rmove montaje de la cúpula y de línea • Pour supprimer Pan / Tilt rmove montage du dôme et doublure • So entfernen Sie Pan / Tilt rmove Montage der Kuppel und Linienkonfer- enzen •...
- Page 8 To attach dome inserts most align properly with housing • Para adjuntar cúpula alinear correctamente la mayoría de las inserciones de la vivienda • Pour joindre la plupart des inserts dôme aligner correctement avec le logement • So hängen die meisten Einsätze Kuppel Angleichung richtig mit Gehäuse •...
- Page 9 Fitting Nitrogen Tank When pressurizing unit be sure to set the guage or regulator from 10-20psi (.7-1.4bar). • Al presurizar la unidad sea seguro fijar la medida o el regulador de 10-20psi (7-1.4bar). • En pressurisant l'unité soyez sûr de placer la jauge ou le régulateur de 10-20psi (7-1.4bar).
-
Page 10: Dip Switches
CHANGING SETTINGS FOR RECEIVER / DRIVER UNITS Dipswitches DIPSWITCHES The dipswitches serve a dual purpose. First, they control the address of the pan/tilt when operated via RS485. Second, they control the alarm and display functions for the pan/tilt. Address changes are made using the dip switches located on the PC board. CHART 1 - RECEIVER/DRIVER PAN/TILT ADDRESSES Address UNIT ADDRESSES FOR 485 CONTROL... -
Page 11: Unit Parameters
UNIT PARAMETERS Alarm sense, camera on-screen display and baud rate can all be controlled by the dipswitches. The alarm sense can be set to accept either contact closures (NO) or contact openings (NC) as the alarm condition. The camera on-screen display will show icons on the monitor when zoom, focus, and iris are used. -
Page 12: Replacement Parts List
Replacement Parts List DDW10CR / PDDW10CR Part Number Description 91-NTFL01 3/8-16 Flange Nut 90-BTSEC06 1/4-20X 1/2" Security screw SS 50-VL1428 DDWC10 housing body 30-VL1405 DDWC10 accs mounting bracket 92-WSFL01 1/4 Flat Washer SS 92-WSSL01 1/4 Split Lockwasher SS 90-BTHH32 1/4-20 X 1/2" Hex head bolt SS 90-BTRP31 8-32X 3/8"... - Page 13 66 65 64...
- Page 14 Message Format Data is transmitted at 9600 baud, 1 start bit, 1 stop bit, 8 data bits (lsb first), no parity. The general format for messages sent to the DeputyDome and for inquiry response messages sent by the DeputyDome is shown below: BYTE DATA Address in hex...
- Page 15 Preset Command Messages These commands control the position presets and some of the operational parameters of the pan/tilt platform. Byte number 1 is the start of message “F8”, byte number 2 is the device address (default = 01), and byte number five is the message terminator byte. Note that preset 63 is reserved for another function;...
- Page 16 E2 (MS nibble) 30H - 3FH 30H - 3FH E0 (LS nibble) 30H - 3FH Terminator and Checksum Notes on “Goto position” command: Pan position has a range of 0 – 2880. This represents the range of 0 to 360 degrees in steps of .15 degree. A pan position of 000 represents the home position.
- Page 17 BYTE DATA Address in hex “v” Z2 (MS nibble) 30H - 3FH 30H - 3FH Z0 (LS nibble) 30H - 3FH F2 (MS nibble) 30H - 3FH 30H - 3FH F0 (LS nibble) 30H - 3FH Terminator and Checksum Lens Position Feedback Commands FUNCTION REQUEST POSITION The response to this command is shown in the table below:...
- Page 18 Z0 (LS nibble) 30H - 3FH F2 (MS nibble) 30H - 3FH 30H - 3FH F0 (LS nibble) 30H - 3FH Terminator and Checksum Latch Commands The camera commands control parameters of camera operation. All the Camera commands generate a Latch Status response message. FUNCTION MANUAL IRIS TOGGLE CAMERA POWER TOGGLE...
- Page 19 30H - 38H “A” 30H - 31H Terminator and Checksum 3.11 Sensor Feedback Commands** FUNCTION REQUEST SENSOR DATA The response to this command is shown in the table below: BYTE DATA Address in hex “S” P1 (MS nibble) 30H - 3FH P0 (LS nibble) 30H - 3FH T1 (MS nibble)
-
Page 20: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products...
