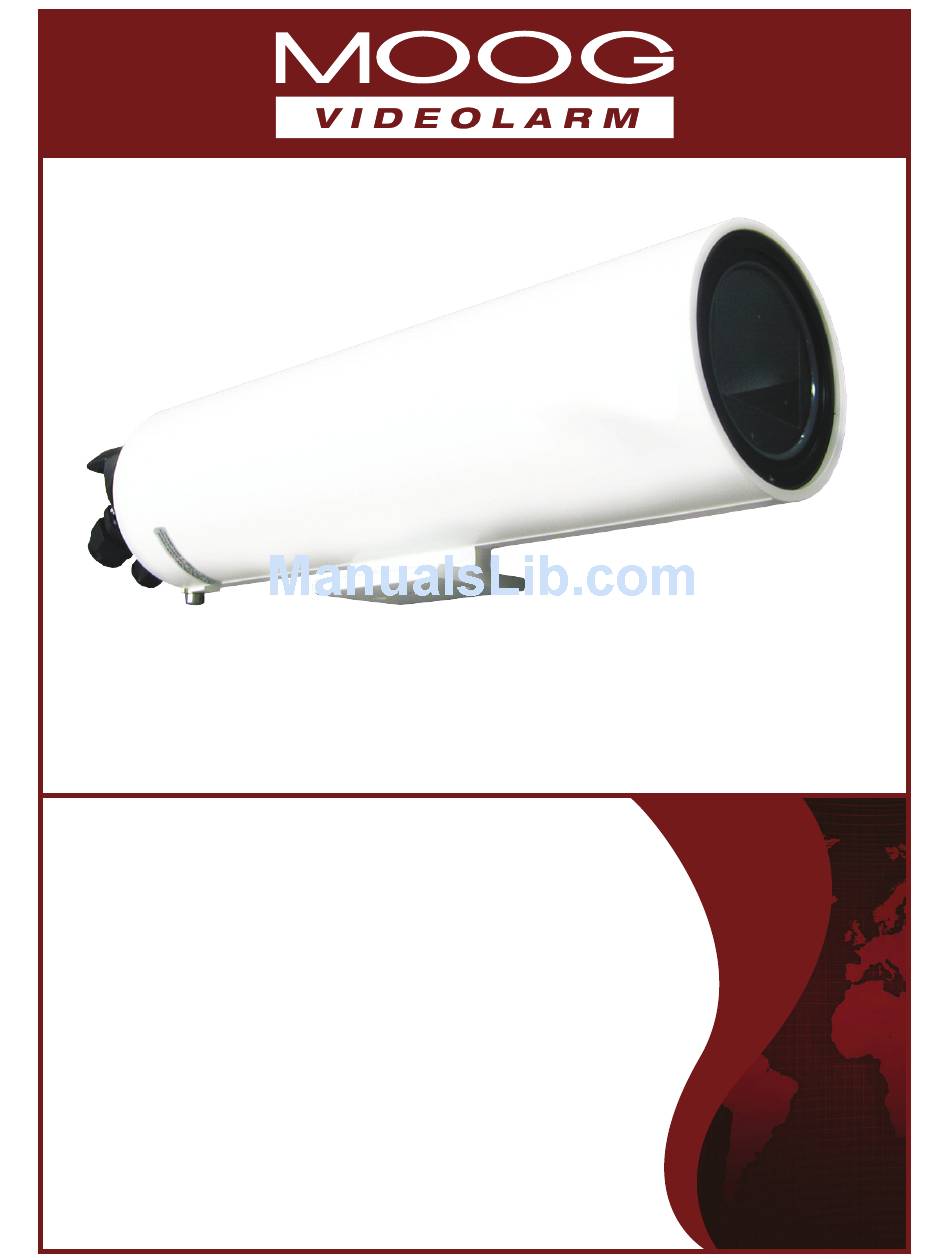

- Page 1 © 2012, Moog Videolarm, Inc. All Rights Reserved A P 1 6 C S - 3 S T Outdoor Tubular Pressurized Environmental Housing www.moogvideolarm.com 81-IN5485 Before attempting to connect or operate this product, please read these instructions completely. 08-16-2012...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Product Category
1. NOTIFICATION OF CLAIMS: WARRANTY SERVICE: explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. If after investigation Moog Videolarm determines the reported problem was not covered by the warranty, Purchaser shall pay Moog Videolarm for the cost of investigating the problem at its then prevailing per incident billable rate. - Page 4 GENERAL INSTRUCTIONS: 2. Remove the cradle assembly by simultaneously grasping the rear handle and pulling the cradle assembly out of the housing. Be sure to keep the edges of the Use only with Class 2 Power Supply end caps clean and free of scratches. HARDWARE KIT 3.
- Page 5 CORROSION RESISTANT CONNECTOR 24 Vac VERSION All electrical connections are made via the single corrosion resistant The 24 Vac version is a non-transformer unit (Figure 6). connector on the rear panel. A mating connector and crimp pins are supplied. 1. Connect the supply (24 Vac) to the corrosion resistant connector using The pins will accept wire from a minimum of 0.5 mm2 (20 AWG) to a appropriate connectors.
- Page 6 EXPLODED VIEW Ref. No. Part Number Qty. Part Description Connector Kit 315 1592-001 16-Pin matching connector kit Cradle Assembly Kit – 315 3803-001 Cradle/Heater Assembly Retaining Ring Ring Tongue Terminal Ground Slide M4 Phillips Head Screw XXX Philips Head Screw Pull Seal 115 Vac Prewired Transformer Kit –...
- Page 7 Should a problem arise, rest assured that Moog Videolarm stands behind its products by offering impressive 3 Year and 5 Year warranties, depending on the product purchased. See full warranty details at www.moogvideolarm.com/technical-support/warranty-plan/...
