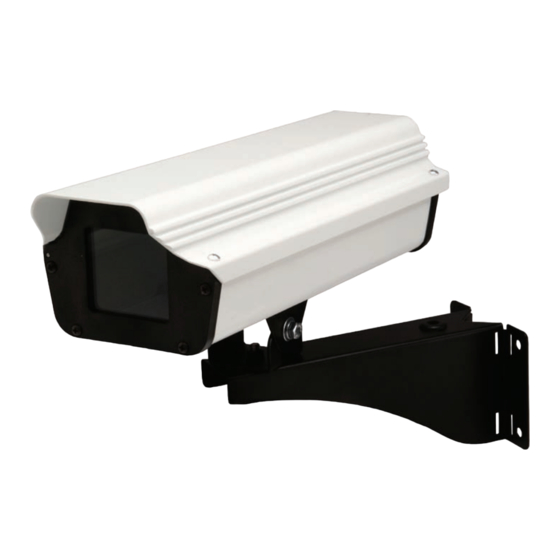

Aluminum outdoor environmental camera housings
Hide thumbs Also See for ACH13HB8N SERIES:

Advertisement

Quick Links

© 2012, Moog Videolarm, Inc. All Rights Reserved
A C H 1 3 H B 8 N
Aluminum Outdoor Environmental Camera Housings
Installation and Operation Instructions for the following models:
ACH13HB8N
Outdoor environmental housing for PoE plug enabled IP fixed cameras,
wall/pole mount, dynamic (intelligent) power allocation heater/blower
system, 30W midspan (100-240Vac input 50/60Hz)
ACH13HB8NE
Outdoor environmental housing for PoE plug enabled IP fixed cameras,
wall/pole mount, dynamic (intelligent) power allocation heater/blower
system
Before attempting to connect or operate this product, please read these instructions completely.
www.moogvideolarm.com
81-IN5455
06-26-2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACH13HB8N SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for Moog Videolarm ACH13HB8N SERIES

  • Page 1 © 2012, Moog Videolarm, Inc. All Rights Reserved A C H 1 3 H B 8 N Aluminum Outdoor Environmental Camera Housings www.moogvideolarm.com Installation and Operation Instructions for the following models: ACH13HB8N Outdoor environmental housing for PoE plug enabled IP fixed cameras, wall/pole mount, dynamic (intelligent) power allocation heater/blower system, 30W midspan (100-240Vac input 50/60Hz) ACH13HB8NE Outdoor environmental housing for PoE plug enabled IP fixed cameras, wall/pole mount, dynamic (intelligent) power allocation heater/blower system 81-IN5455 06-26-2012 Before attempting to connect or operate this product, please read these instructions completely.
  • Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
  • Page 3: Terms And Conditions

    If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
  • Page 4: Electrical Specifications

    Electrical Specifications Unpacking the Product ACH13HB8N ACH13HB8N Midspan Input Power: 100 to 240VAC Power: .8A Frequency: 50 to 60 HZ Output English Camera: POE (55VDC) Heater: 55VDC (max. 20W) Energía de entrada: 100 a 240VAC: Energía: .8A Frecuencia: 50 a 60 hertzios Salida: Español Cámara: POE (55VDC)
  • Page 5 Attach the bracket to the wall and secure Connect housing to wall bracket. appropriately. Conecte la cubierta con el soporte de pared. • Una el soporte a la pared y asegúrelo • apropiadamente. Reliez le logement à la parenthèse de mur. •...
  • Page 6 Sled Screw Camera Sled Place camera on sled and align mounting holes on each. Adjust camera parallel to sled and tighten the Plug in RJ45 input and output cables. bolt on the bottom. • Coloque la cámara fotográfica en el trineo y alinee los agujeros de •...
  • Page 7 Button Press the Calibration button for one second. Both the Test and Heat LED will turn ON. Once the unit has been successfully calibrated, the Test and Heat LED will turn OFF. Once this is complete the Heat LED will turn ON only if the heater is ON.
  • Page 8 Close the top cover and tighten to the base with the hex screws. If desired, use security screws in place of hex screws. • Cierre la cubierta superior y apriete a la base con los tornillos • Si está deseado, utilice los tornillos de la seguridad en de la tuerca hexagonal.
  • Page 9: Replacement Parts List

    Replacement Parts List Part Number Description RPACH010 ACH13 Front Endcap Assembly ACH13HB8N RPACH020 ACH13 Lid Screws RPHACH8N Heater for POE housing RPACH050 12V Heater & Thermostat Kit For ACH13 RPACH060 ACH13 Top Extrusion RPACH070 ACH13 Bottom Extrusion RPBACH8N Blower for POE housing RPPCBPOE PC board for POE housing ACH13 Rear Endcap Assembly...
  • Page 10: Product Registration/Warranty

    Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assured that Moog Videolarm stands behind its products by offering impressive 3 Year and 5 Year warranties, depending on the product purchased. See full warranty details at www.moogvideolarm.com/technical-support/warranty-plan/ Register Your Products Online Please take a few moments to register your purchase via the Online Product Registration Form at: www.moogvideolarm.com/technical-support/product-registration Register your recent Moog Videolarm purchase and benefit from the following: • Simple and Trouble-Free RMA process • Receive product updates, and special promotion • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
