A M S 9 0 C T & A M S 1 8 0 C T
Vandal-Resistant Housings
Installation and Operation Instructions for the following models:

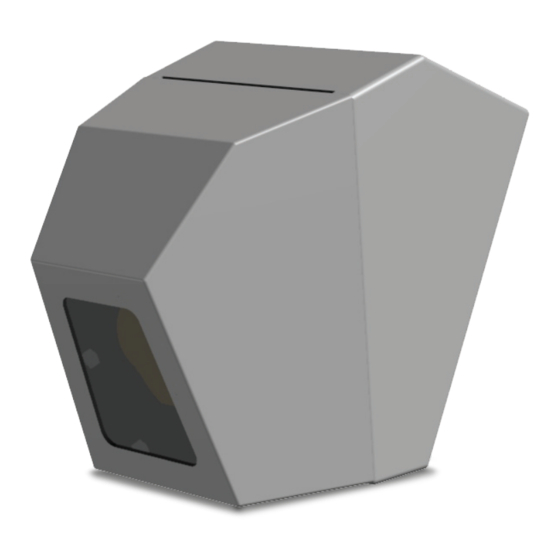

AMS90CT Vandal-Resistant indoor 14-gauge Steel housing, corner mount, with security
access lock plus WindowGuard™ Paint Shield (s) -3 clear and 2 tinted, for a
fixed camera; MCL 8" (Includes mounting hardware)
AMS180CT Vandal-Resistant indoor 14-gauge Steel housing, wall mount, with security
access lock plus WindowGuard™ Paint Shield (s) -3 clear and 2 tinted, for
a fixed camera; MCL 8" (Includes mounting hardware)
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5190
12-21-2011
