GENERAL INSTRUCTIONS:
!
Use only with Class 2 Power Supply
HARDWARE KIT
3
Cable Tie
2
BHCS, ¼-20 x ¼-inch
1
BHCS, ¼-20 x
/
-inch
5
8
1
BHCS, ¼-20 x ¾-inch
1
BHCS, ¼-20 x ½-inch
1
BHCS, ¼-20 x
/
-inch
3
8
1
BHCS, ¼-20 x 1¼-inch
2
0.4 mm (0.016-inch) Plastic Spacer
1
1.65 mm (0.065-inch) Plastic Spacer ¼-20
1
3.9 mm (0.154-inch) Plastic Spacer
1
7.4 mm (0.292-inch) Plastic Spacer
1
9.8 mm (0.385-inch) Plastic Spacer
1
/
-inch NPT Plug
3
8
2
Pull Seals
CAMERA INSTALLATION
Attention: Installation should be performed by qualified service personnel
only in accordance with the National Electrical Code or applicable local
codes.
Cable Routing
Be sure cable wires do not pinch or rub when connected to pan/tilt
Caution:
units. Frayed, pinched, or broken wires can cause fire or shock hazards or
system failure.
Do Not Exceed 30 Vac Input on 24 Vac models. Operation above
NOTE:
30 Vac violates low voltage operation (Class 2 Specifications). Normal
operation is 24 Vac.
TOOLS REQUIRED
Phillips head screwdriver
⁄
-inch (or 4 mm) hex wrench
5
32
⁄
-inch (or 8 mm) hex wrench
5
16
Wire cutter/stripper/crimper tool

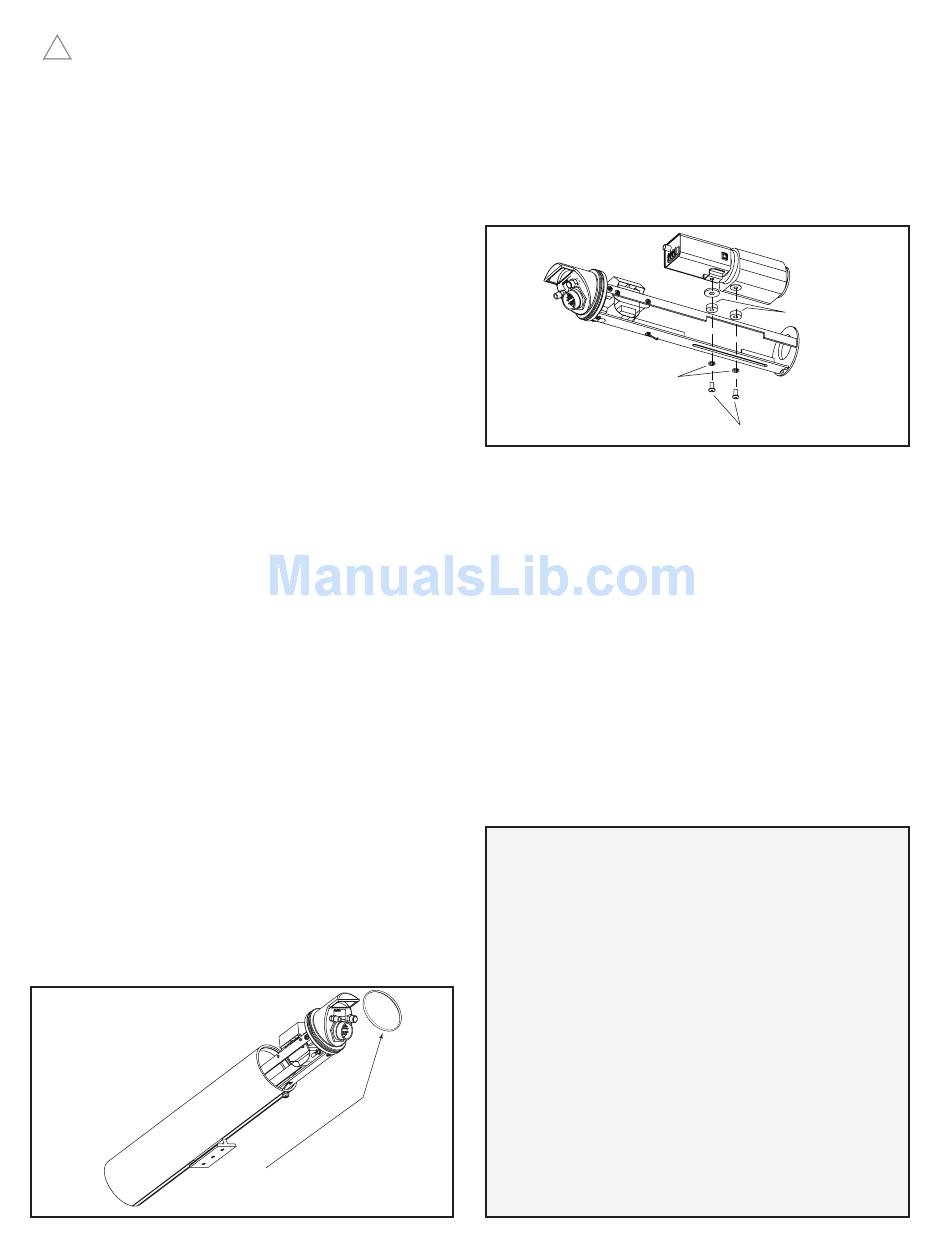

1. Remove the cradle from the housing by removing the retaining ring at the
back of the housing (Figure 1).
Figure 1
Retention Ring
2. Remove the cradle assembly by simultaneously grasping the rear handle and
pulling the cradle assembly out of the housing. Be sure to keep the edges of the
end caps clean and free of scratches.
3. With the cradle removed from the housing place the camera/lens combination
into the cradle assembly. Position the camera/lens 1mm (0.04-inch) away from
the faceplate. The camera/lens is secured to the cradle with a ¼-20 button
head cap screw (BHCS) and the appropriate plastic spacer (Figure 2).
Lock Washers
Figure 2
4. Install camera into the HS9384-xHP housing utilizing the internal
transformer for camera power.
5. Connect the flying leads (white/black) to the camera's 24 volt input.
6. Connect BNC cable.
HEATER
The front end-cap contains a glass viewing window. The integral heater/
defogger is mounted to the camera cradle and will transfer heat to the
window to minimize fogging of the window in high humidity areas and/or
freezing under cold temperature conditions.
WIRING
The AP16 can be used with either 115 Vac or 24 Vac power input.
TOOLS FOR USE WITH CONNECTORS
The following tools are available from
Daniels Manufacturing Corporation
6103 Anno Avenue
Orlando, FL 32809
407-855-6161
Crimp Tool: AF8 (M22520/1-01)
Crimp Tool Turret: THIA (M22520/1-02)
Insertion Tool: MS24256A16
Removal Tool: MS24256R16
The following tools are available from
Amphenol Corpl
40-60 Delaware Ave.
Sidney, NY 13838-1395
607-563-5011
Insertion Tool: M81969/17-04
Removal Tool: M81969/19-08
Spacers
1/4 - 20 Screws
