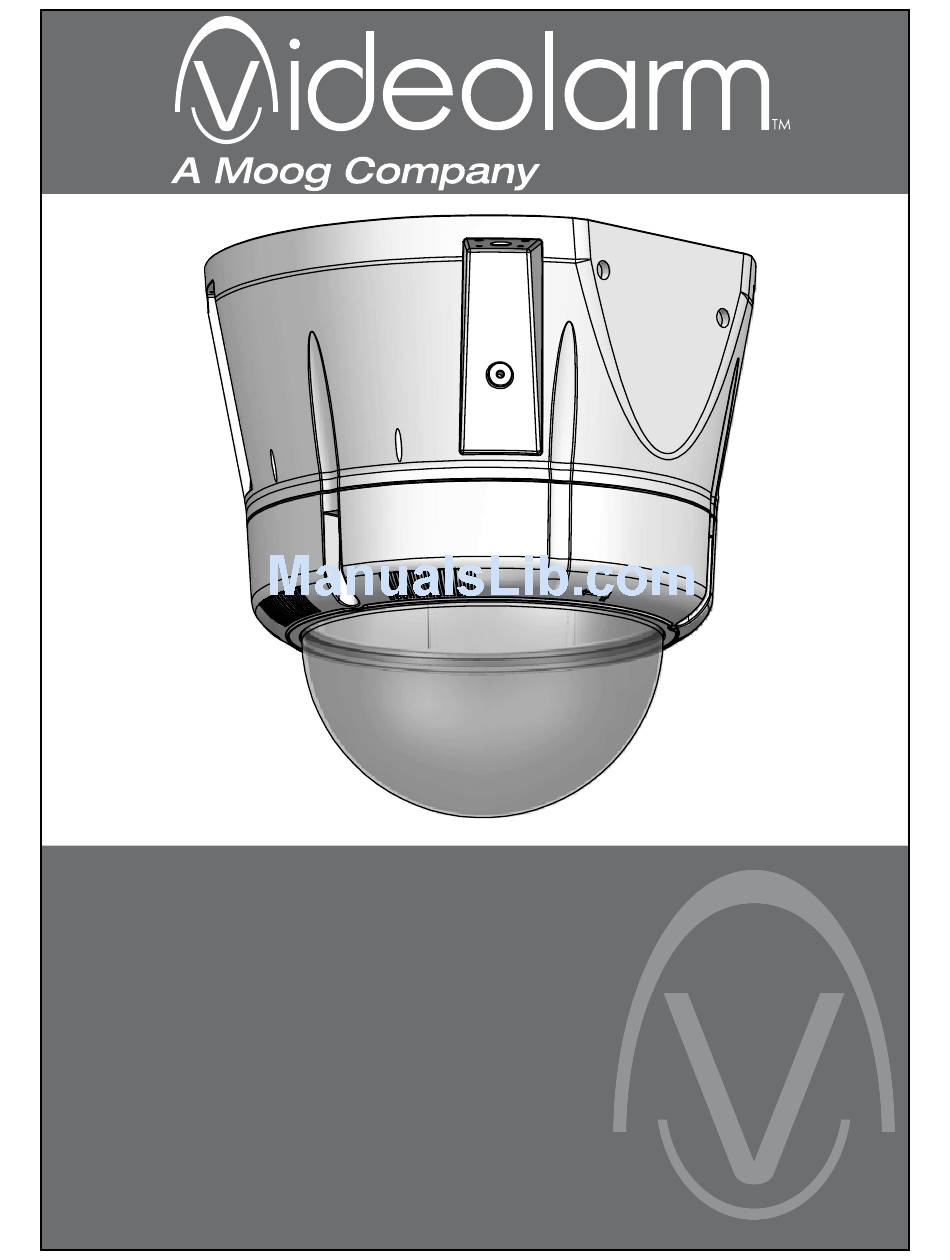

www.videolarm.com
Q S M 7 5 C 2 - 7 0 N A
Vandal-Resistant Surface Mount Dome Housing with Q-View System
Installation and Operation Instructions for the following models:
QSM75C2-70NA
B e fo r e a t t e m p t i n g t o c o n n e c t o r o p e r a t e t h i s p r o d u c t ,
p l e a s e r e a d t h e s e i n s t r u c t i o n s c o m p l e t e l y.
7" Outdoor dome Camera System, surface mount, clear dome,
2 Hi-Res Day/Night Cameras each with a 3-9mm auto-iris,
varifocal lens, plus heater/blower
81-IN5397
01-27-2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QView QSM75C2-70NA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moog Videolarm QView QSM75C2-70NA

Summary of Contents for Moog Videolarm QView QSM75C2-70NA

  • Page 1 Q S M 7 5 C 2 - 7 0 N A Vandal-Resistant Surface Mount Dome Housing with Q-View System Installation and Operation Instructions for the following models: QSM75C2-70NA 7” Outdoor dome Camera System, surface mount, clear dome, 2 Hi-Res Day/Night Cameras each with a 3-9mm auto-iris,...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings Follow all instructions. Do not use this apparatus near water. Clean only with damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. Cable Runs- All cable runs must be within permissible distance.

  • Page 3: Limited Warranty

    1. NOTIFICATIONOF CLAIMS: WARRANTYSERVICE: If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Videolarm but all claims for warranty service must be made within the warranty period.

  • Page 4: Electrical Specifications

    Electrical Specifications Power 24VAC Class 2 Only 24 VAC Total Power: 63 Watts Accessories: Heater: 50 Watts/Blower: 2 Watts Camera Power: Tools Required: .100” Flat Head Screwdriver English Phillips Head Screwdriver 24 VAC Energía Total: 63 vatios Accesorios: Calentador: 50 Watts/Blower: 2 vatios Energía De la Cámara fotográfica: Las Herramientas Requirieron: Destornillador Principal Plano Del 100"...

  • Page 5: Wall Mount

    Use Teflon Tape (included) to seal conduit plugs. • Utilice la cinta del Teflon (incluida) para sellar los enchufes del conducto. • Utilisez la bande de teflon (incluse) pour sceller des prises de conduit. • Benutzen Sie das Teflonklebeband (eingeschlossen) um Rohrstecker zu versiegeln.
  • Page 6 Surface Mounting Remove the (4) side plates . Mounting Surface should be of suitable material such as brick, concrete, wood etc. • Quite (4) las placas laterales usando la herramienta de la seguridad proporcionada. La superficie de montaje debe estar de material conveniente tal como ladrillo, concreto, madera etc.

  • Page 7: Vac Power

    24 VAC POWER GROUND Make the appropriate male and female connections. • Haga las conexiones masculinas y femeninas apropiadas. • Établissez les rapports masculins et femelles appropriés. • Stellen Sie die passenden männlichen und weiblichen Beziehungen her. • Faça as conexões masculinas e fêmeas apropriadas. •...
  • Page 8 Use the rubber seal when mounting housing up right. Center the seal over the dome. • Utilice el sello de goma al montar contener encima de la derecha. Centre el sello sobre la bóveda. • Utilisez le joint en caoutchouc en montant loger vers le haut de la droite.

  • Page 13: Replacement Parts List

    Replacement Parts List QSM75C2-70NA Wall Mount WMSM7 Sold Separately Part Number RPSM7501 RPRH7502 RC7T RC7C RPRH7503 NA (WITH THIS PRODUCT) RPFD080 RPFD072 NA (WITH THIS PRODUCT) NA (WITH THIS PRODUCT) RPFD050 (Model SM7HB) RPRH706 (Model SM7FHB) RPRH707 (Model SM7NHB) RPSM7511 RPSM7512 RPSM7513 WMSM7 (Sold Separately)

  • Page 14: Product Registration/Warranty

    Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products...
