Moog Videolarm QView QFDPT3-50NA User Manual

81-IN5247-07064 Q-View FusionDome
QFDW(T/C)X-XXXX / QIFDW(T/C)X-XXXX
REVISION DATE: July 6, 2004
TABLE OF CONTENTS
Cable and Power Guidelines
Electrical Specifi cations
General Instructions
Wall Mounting
Pendant Mounting
Wiring
Camera Adjustment
Camera Focusing
Camera Settings
Completion of Installation
NVT Instructions
Exploded View
Warranty Information
Service and Safeguard Information
Troubleshooting
Mounting Template
CABLE AND POWER GUIDELINES (Detailed info on Page 12)
This chart shows the proper current needed for power supplies for
Q-View™ cameras. Use Class 2 Power only. Input voltage must
be 24 VAC/VDC.
CAMERAS VOLTAGE
1 24 VAC/VDC
2 24 VAC/VDC
3 24 VAC/VDC
4 24 VAC/VDC
Use the formula below to select the correct power supply for
cameras connected in parallel (positive to positive, negative to
negative):
Total current for a 24 VAC system:
TOTAL CURRENT = (202mA x total number of cameras)
Note: 202mA is camera plus power supply
ELECTRICAL SPECIFICATIONS (OUTDOOR ONLY):
!
Power 24VAC, Class 2 Only
26 watts at 24 VAC (accessories)
Heater: 25 watts
Blower: .84 watts
Input Connectors (outdoor units):
BNC Connectors - 1 for each camera
Screw-down connectors - 2
NOTE: This unit is designed for operation in an
upright position. Installing the Fusionome™
upside down may cause damage to the
internal equipment, and will void the warranty.
1, 11
1
1
1
2
2
2
2
3
3
4
6
7
8
9
12
CURRENT POWER
102mA 2.5W
210mA 5W
331mA 7.9W
487mA 10.9W

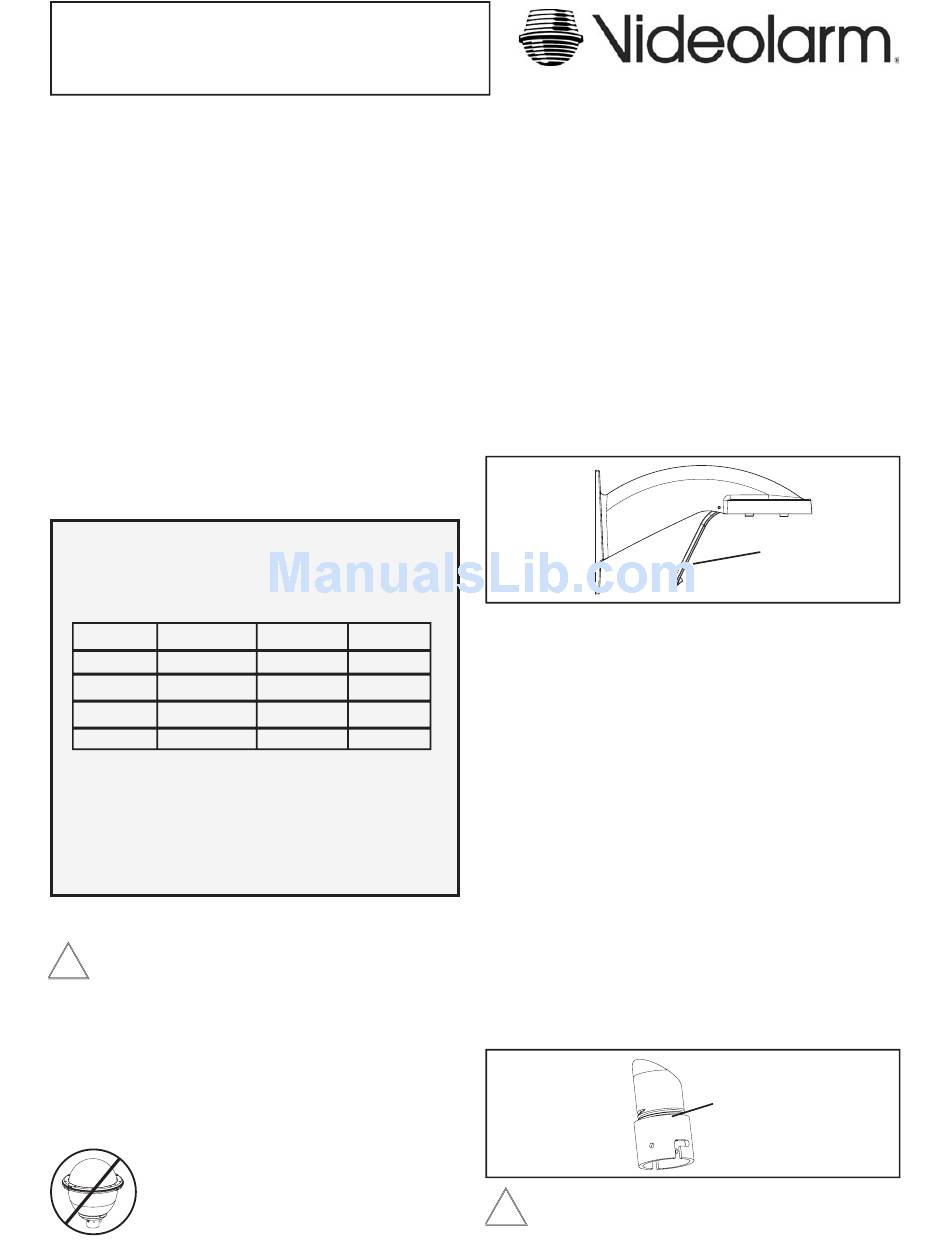

PRODUCT INSTRUCTIONS
GENERAL INSTRUCTIONS:
Tools Required: .100" Flat Head Screwdriver
Phillips Head Screwdriver
Carefully remove the housing from the packaging material. Check to
be sure all parts are present.
WALL MOUNTING THE QFD
1. A template is included as a guide for mounting the bracket to a
wall. Choose the desired location for installation and mark the
drill holes using the template. Run approximately 8"of wiring out
of the wall.
2. Open the access door on the bottom of the wall mount by
loosening the screw nearest the mounting plate (Figure 1).
Figure 1
3. Pull the wires from the wall through the rectangular hole in the
wall mount bracket. Attach the wall mount to the wall using
appropriate hardware (not included).
4. Make all wiring connections (See next page). Attach the BNC
connectors to the video in.
5. Once all wiring connections are made, place the wires inside the
wall mount bracket and close the access door. Secure with the
screw removed earlier.
PENDANT MOUNTING THE QFD AND QIFD
1. This unit includes a 1 1/2" NPT housing coupling that can be used
with a standard 1 1/2" NPT pipe or with brackets designed with
1 1/2" male pipe threads, such as Videolarm's WM20G.
2. Attach the coupling to the bracket or pendant pipe (Figure 2).
NOTE: Pipe threads should be clean and rust free. Use a
sealer (such as Tefl on™ tape or silicone sealer) on the
threads for outdoor applications
Figure 2
Be sure the bracket is properly and securely mounted to a
!
supporting structure capable of rigidly holding the weight of
the entire unit.
Access door
Add thread
sealing tape
