CyberParallel Dual User's Manual
Note Hold the board by its external edges only. Try to
avoid touching the components, connectors or pins.

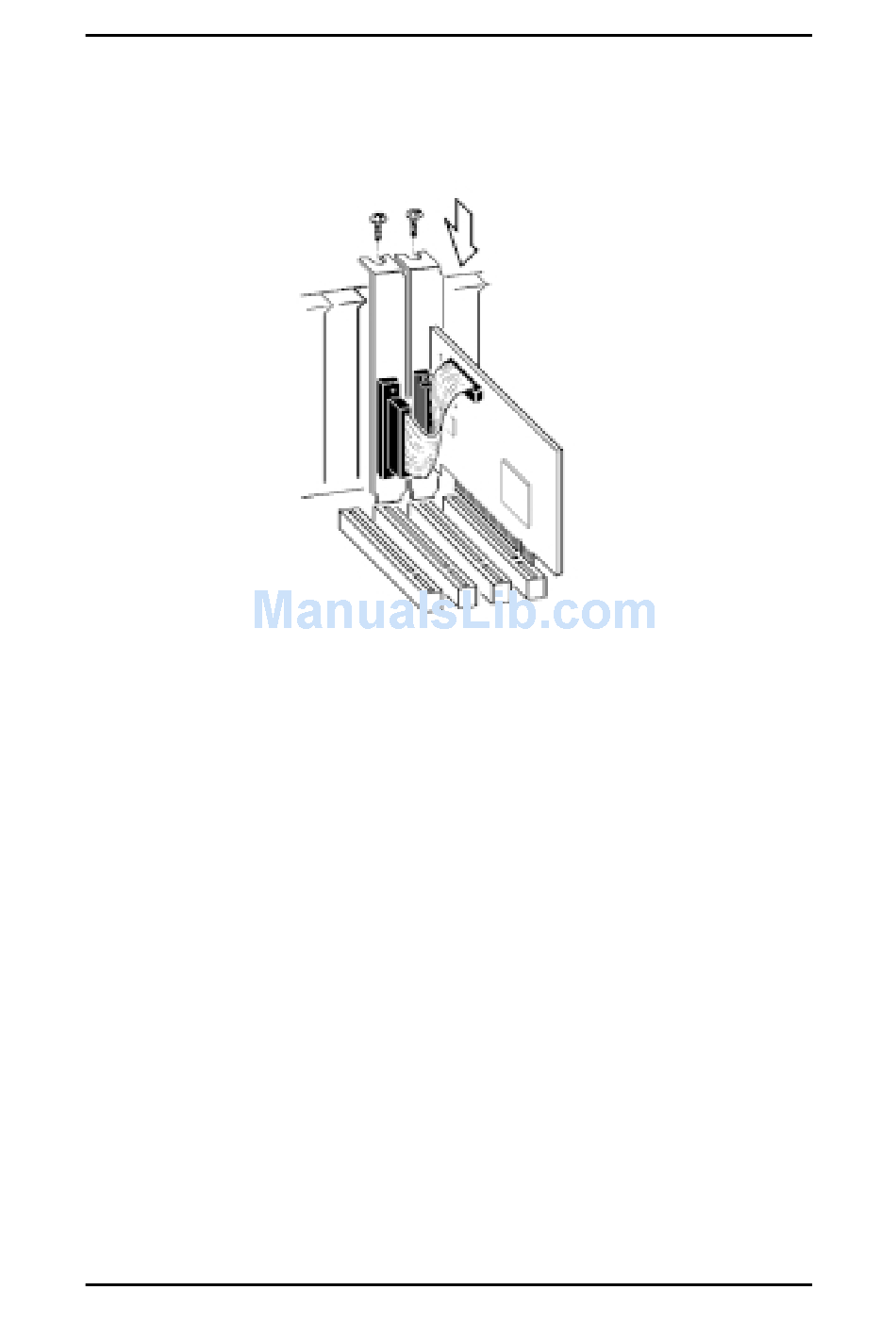

Figure 2-1. Install the CyberParallel Dual Board and
8. Replace the slot bracket's holding screws to secure the
board and the connector bracket to the rear slot panel.
9. Connect the connector on the bracket mounted parallel
port's ribbon cable to the 26-pin connector on the
CyberParallel Dual board. Make sure pin 1 of the ribbon
cable (the side imprinted with color stripe) is matched
with pin 1 on the board's connector (indicated by a silk
screened number 1).
10. Replace the computer's cover.
11. Reconnect power cord and make new connections to the
ports.
The hardware installation is now complete. Continue to the
next section for the software installation.
2-2
the connector bracket
