10/100Base-Tx Network Interface Upgrade; Nic Installation - NEC SuperScript 1800 User Manual

10/100B -TX
ASE
N I
ETWORK NTERFACE
(Order No. 1805)
A 10/100Base-TX Network Interface Card (NIC) is a device
for connecting the printer to an Ethernet network. A
Category 5 network cable is used for interconnecting the NIC
with the network. The NIC can automatically determine if it
is connected to a 10-MB or 100-MB network.
The procedure in this section only describes how to install
the NIC. For information about configuring the printer for
the NIC, see the NEC SuperScript 1800 Network Configuration
Guide.

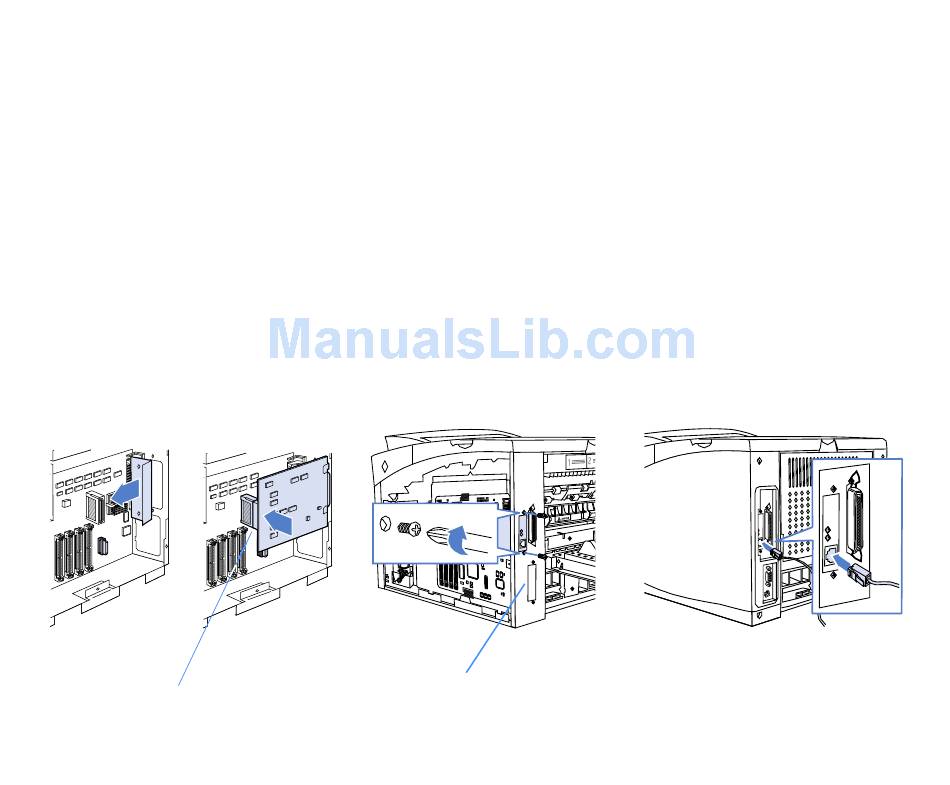

Installing the 10/100Base-TX Network Interface Upgrade
A B
Connect to
socket on
controller board
90 SuperScript 1800— User's Guide
U
PGRADE
C
Interface Panel

NIC Installation

To install the Network Interface Card:
1. Remove the printer side cover and access the printer
Controller Board as described on page 83.
On the back of the printer, remove the two screws from
2.
the metal back plate (located on Interface Panel), then
remove plate (A)
.
3. Insert NIC into socket on controller board (B) .
4. Use screw, removed in Step 2, to fasten the card (C).
5. Use the procedure in Step 1 as guide to replace printer
side-panel, 500-sheet Cassette, and printer cables.
6. Connect Category 5 network cable to NIC.
7. Configure the printer for the NIC as described in the
NEC SuperScript 1800 Network Configuration Guide.
8. Confirm the installation by printing a printer
configuration page as described on page 51.
D
