Use the illustrations on the facing page to identify standard
parts for the SuperScript 1400.

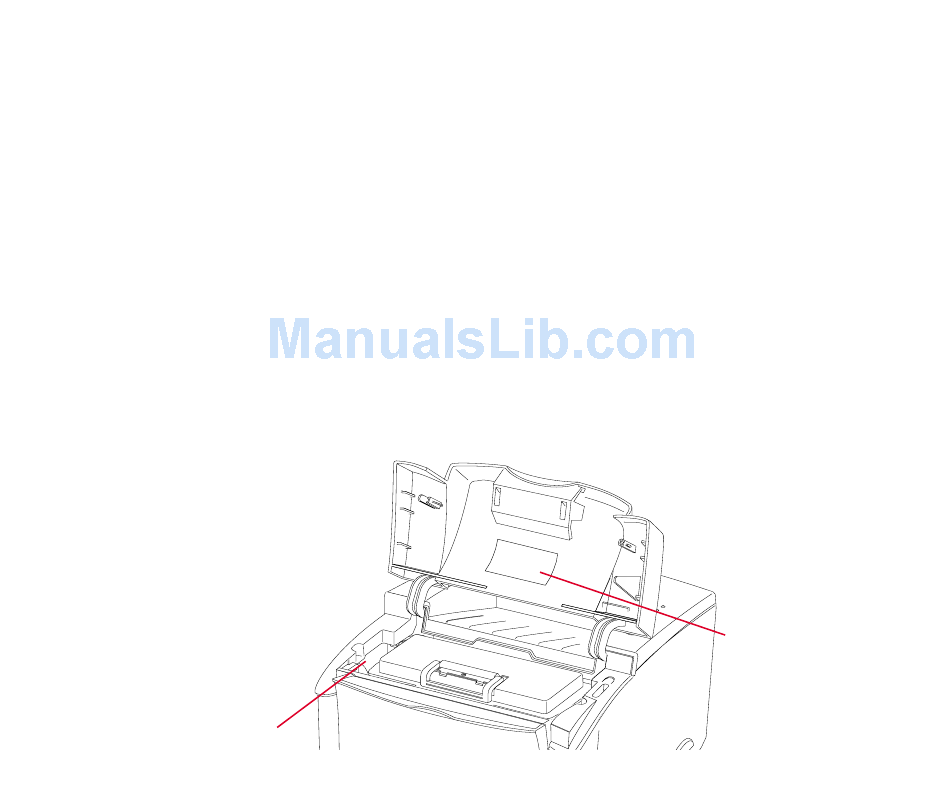

Front View
•
Top Cover—provides access to the Toner Cartridge (also
serves as the Main Output Tray).
•
Inside Label—contains the printer's serial number
necessary for warranty registration.
•
Main Output Tray—holds up to 250 printed sheets.
•
Operator Panel—has two control buttons and four
indicator lights (LEDs).
•
Hand Grips—used for lifting printer.
•
Paper Level Indicator—a see through window showing
paper level.
•
270-sheet Cassette—standard input tray. Referred to as
Tray 2 in the printer driver
•
Manual Feed Tray—drops open to allow you to feed
various types of paper, envelopes, labels, or
transparencies one at a time. Referred to as Tray 1
(Manual) in the printer driver.
Serial Number Label
8
Chapter 2, Getting Started
P
ARTS
Back View
•
Interface Panel—contains the Controller Board ports
including a parallel port and a USB port.
•
Back Cover—acts as the Face-up Output Tray when
opened out.
•
Power Cord Connector—for attaching the Power Cord.
•
Power Switch—for turning on and off the printer.
•
Side Vent—allows ventilation.
Back Internal View
•
Fuser Unit—uses heat and pressure to adhere the image
to the paper.
•
Face-up Output Tray—receives heavier printed media.
•
Back Feed Roller—Feeds media to the Face-up Output
Tray. Swings out to clear paper jams.
Model Number Label
