4.

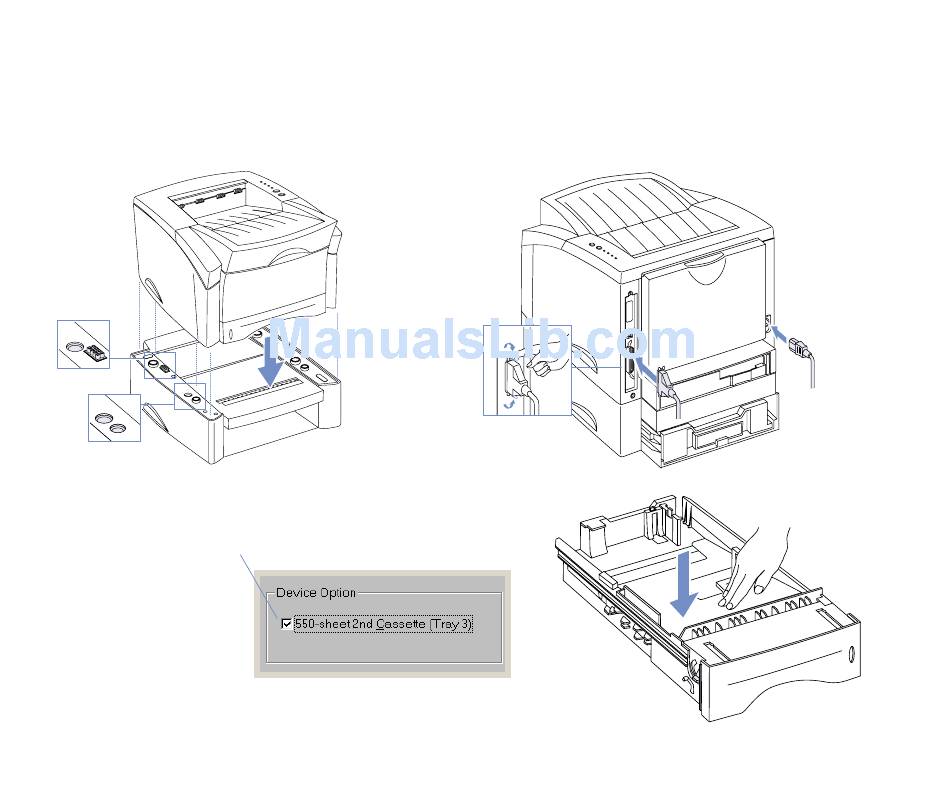

Lift the printer up and align it over the Feeder Unit.
Keeping it level, lower it into place on the tabs and
connector (D).
5.
Re-connect all cables, then turn the printer ON (E).
6. Open the Properties window for the driver. In the
Device Option field on the Printer tab, select 550-sheet
2nd Cassette (Tray 3) (F).
D
F
Check this box in the Printer
tab so that Tray 3 is
selectable from the Paper
Source drop-down list.
92
Chapter 8, Printer Options
7.
Push down the metal plate in the bottom of Tray 3 (G).
Directions continued on next page.
E
G
