Paper Jams in the Output Area.

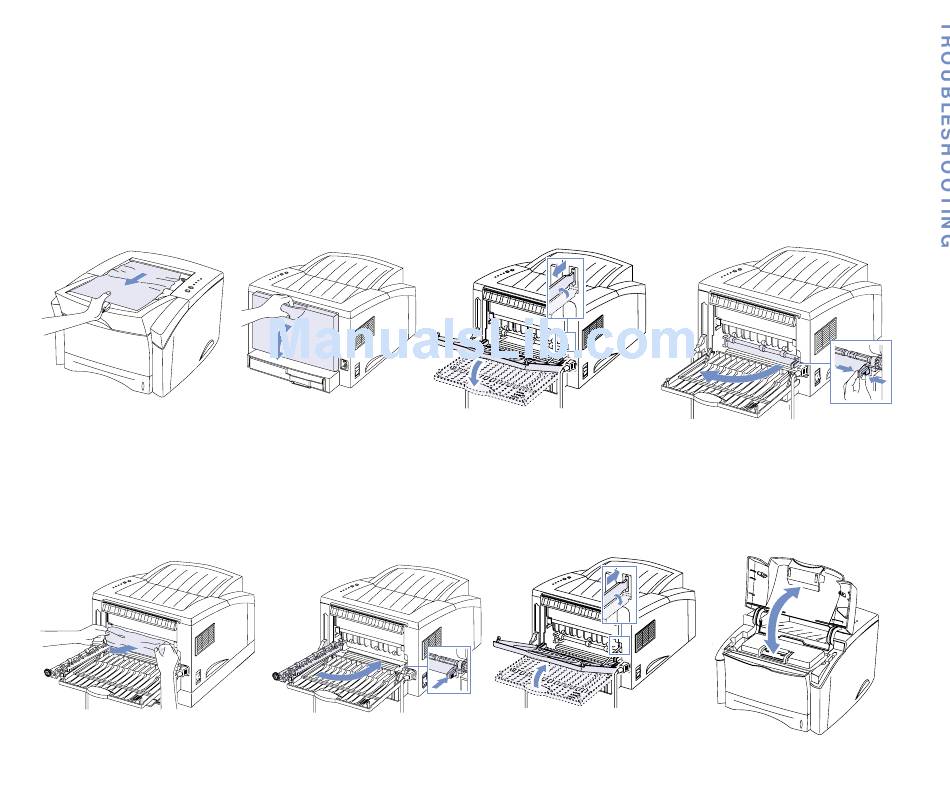

1. If the paper is visible from the Main Output Tray,
carefully pull it (A).
2. If the jammed paper is not visible or there is resistance
when you pull the paper, open the Face-up Output Tray
(B).
3. Remove the strap and open the tray down so that it
opens at a 90 degree angle (C).
4. If there is resistance when you pull the paper, squeeze the
handle on the right end of the exit roller, and swing the
roller open in the direction of the arrow shown (D).
A
note:
If the Paper and the Error lights do not
go out, there may still be jammed paper inside
the printer. Check the input area and the inside
of the printer.
E
B
F
5. Remove the jammed paper (E).
6. Replace the exit roller (F). Make sure the right end of the
roller clicks in place. If the handle is not closed
completely, the printer will indicate a cover open or fuser
error with the red Error light on the Operator Panel.
7. Re-attach the strap and close the Face-up Output Tray
(G).
8. Open and close the Top Cover to clear the error message
and resume printing (H).
C
G
D
H
Paper Jam Problems 77
