Chapter 4
4.4

LABEL HEADER

The header consist of eleven parameters. These parameters contain information about the label.
It is not necessary to enter information for all of the parameters: If a parameter is left blank, then
the default value will be used. A carriage return must follow the label header parameters.
The value of measurement for many of the header elements is the dot. There are 203 dots per
inch on a 400 print head (8 dots/mm). There is a maximum 832 dots in the X direction (width). The
Y direction (length) is virtually unlimited.
Most header parameters can be supplied using the auto-size command. (See section 5.3.3.)
Below is a list of the header element mnemonics and default values:
HFM, LSX, LSY, WEB, GAP, DPS, LCB, AGD, SPG, OFX, OFY
0, 832, 614,
FEED DIRECTION
.0625" OR 12 DOTS
THIS IS THE WEB VALUE
X BEGINNING
Y BEGINNING
THIS IS 0,0
400 Operators Manual
13, 24, 35,
4" OR 800 DOTS LSX
MICROCOM

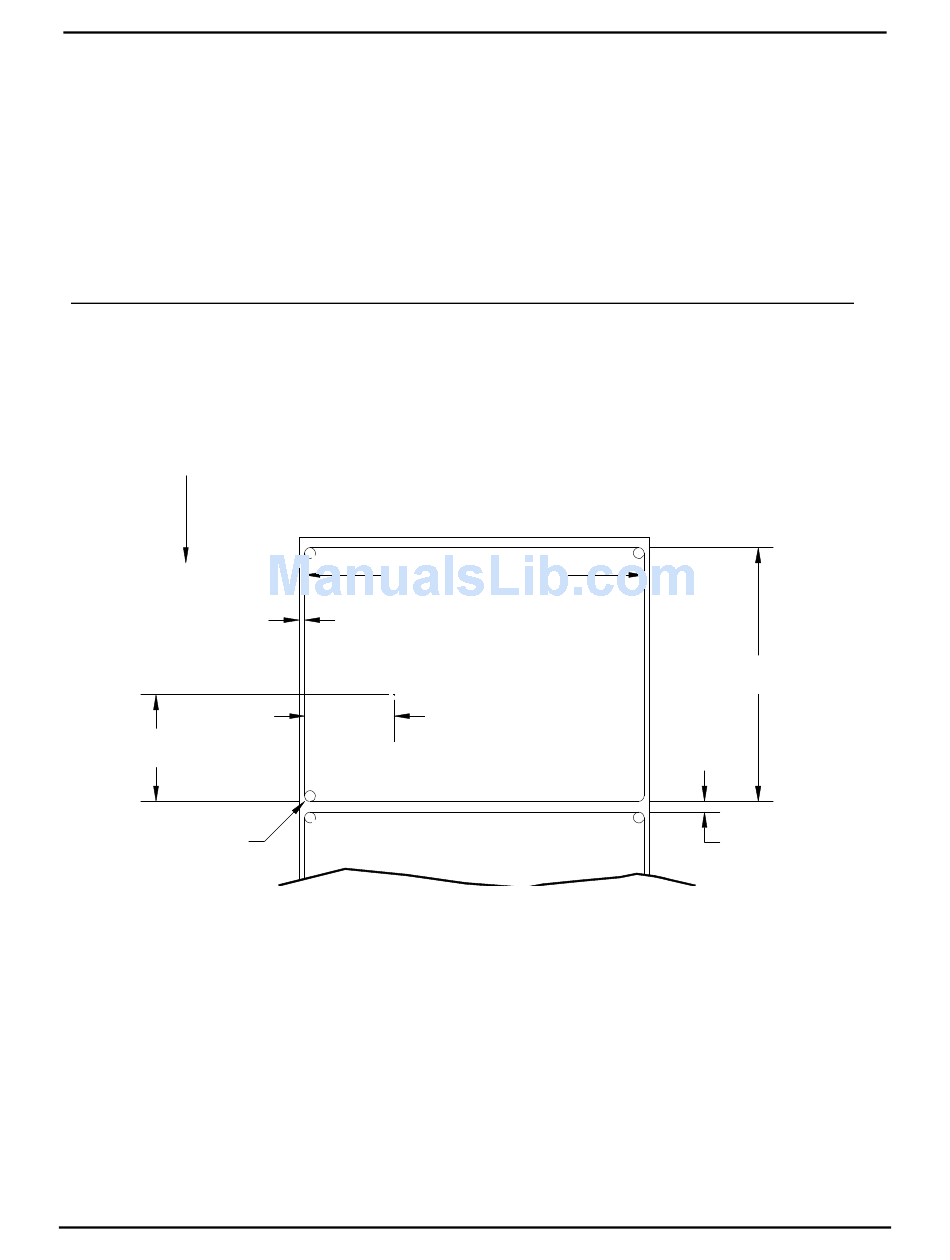

Label Header Parameters of a 4" X 3" Label

Figure 8
Designing Labels Using LDS
0, 1, 479,
3" OR 600 DOTS LSY
0, 0
.125" OR 25 DOTS
THIS IS THE GAP VALUE
