Designing Labels Using LDS
XS X SIZE
The X size of the line. Valid range is 1 to 832.
YS Y SIZE
The Y size of the line. Valid range is 1 to 65536.
CONSTANT FIELDS
The next 4 fields are always defaulted.
AN ATTRIBUTE NUMBER
A value of 1 will reverse the image when printed over a black image. A value of 0 is
normal. (Note: If a reverse image is desired, all overlapping fields must have the AN set
to 1.)

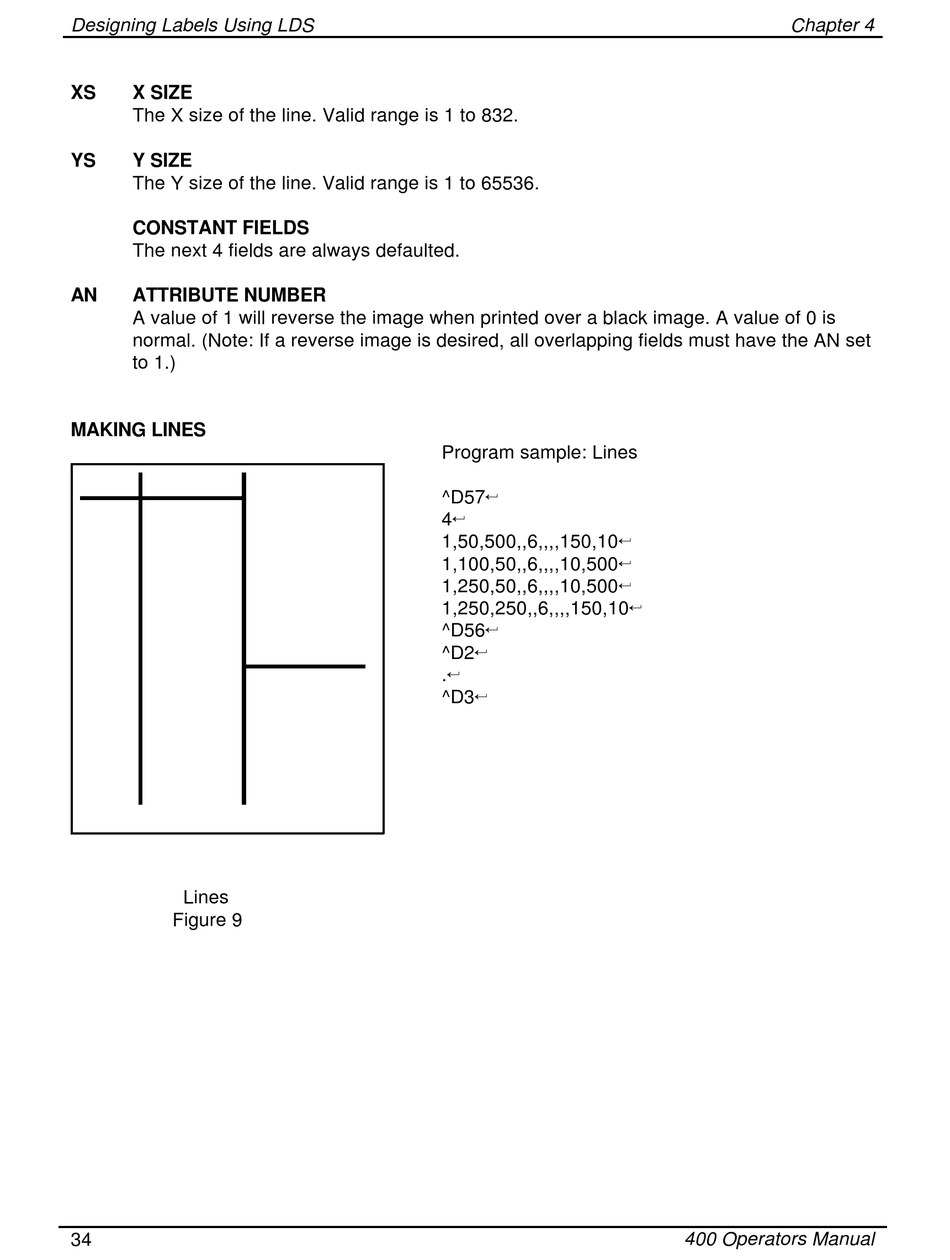

MAKING LINES
Lines
Figure 9
34
Program sample: Lines
^D575
45
1,50,500,,6,,,,150,105
1,100,50,,6,,,,10,5005
1,250,50,,6,,,,10,5005
1,250,250,,6,,,,150,105
^D565
^D25
.5
^D35
Chapter 4
400 Operators Manual
