2.1

UNPACKING THE 400 PRINTER

While unpacking the printer, please check all packing materials closely to avoid misplacing any
necessary parts. After the printer is removed from the box, verify that all parts are present and
in good condition (see Figure 3). All packaging material should be kept and used if the printer
is to be shipped.
2.2

INSTALLING LABEL SUPPLY RACKS

To install the supply racks, simply place the printer on its face so that the rear panel is facing
up. Locate and remove the lower two screws and mount the lower side of the left and right
racks. Once the lower sides are secured, mount the upper sides in the same manner.
2.3

INSTALLING OPTIONAL SUPPLY COVER

400 Operators Manual

CHAPTER 2: BASIC OPERATION

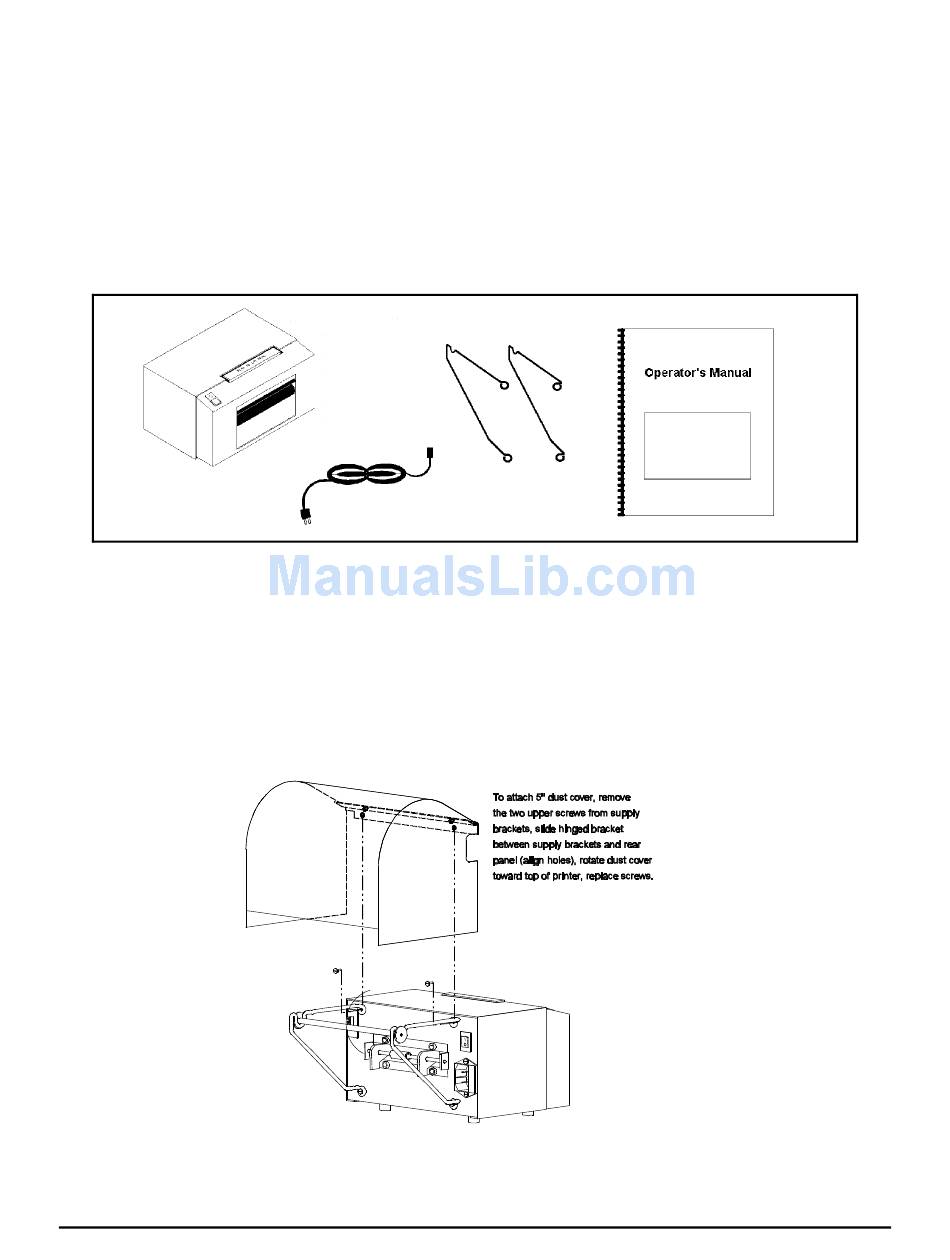

Printer Parts

Supply Cover

Figure 3
Figure 4
7
