Chapter 4
4.5.4

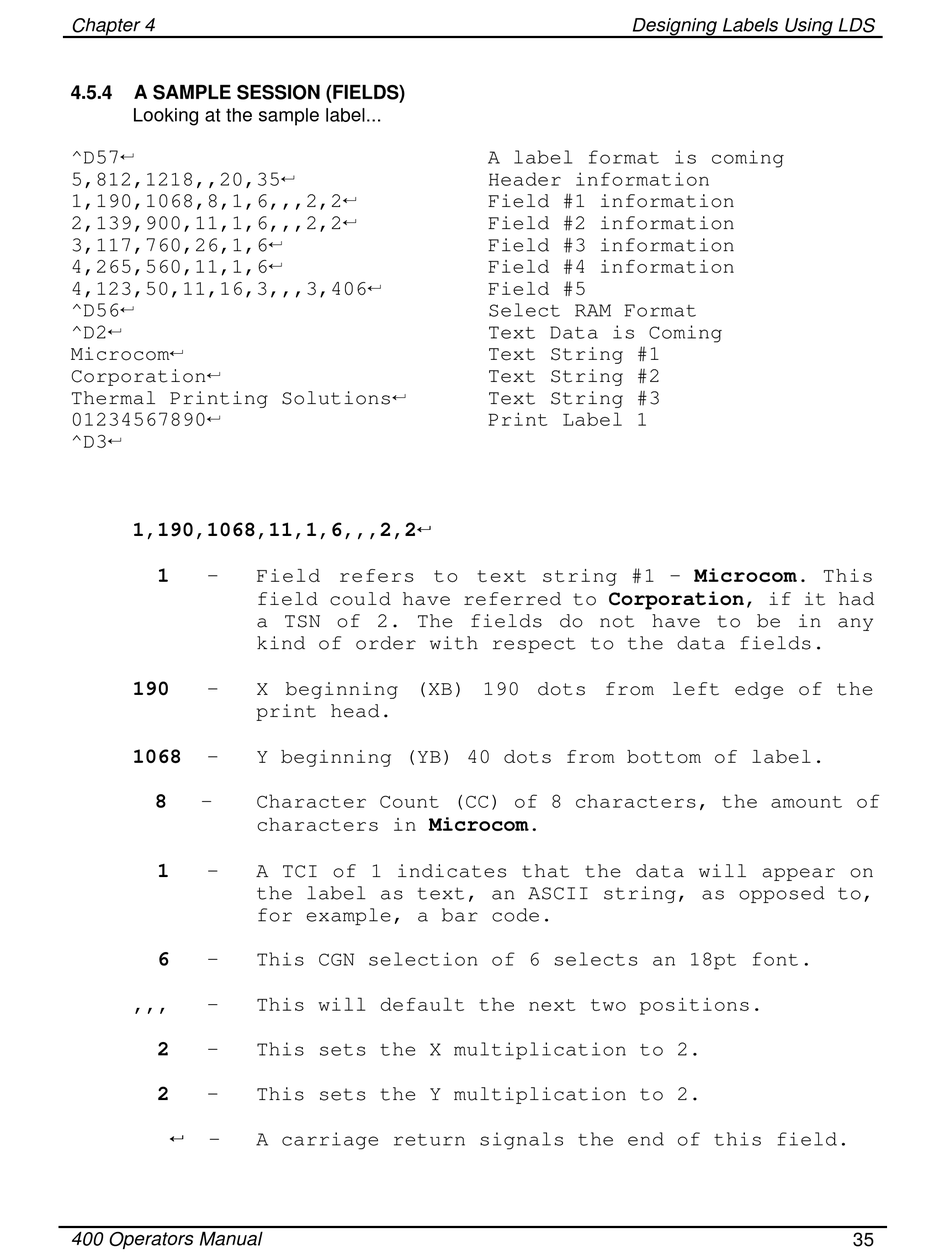

A SAMPLE SESSION (FIELDS)

Looking at the sample label...
^D575
5,812,1218,,20,355
1,190,1068,8,1,6,,,2,25
2,139,900,11,1,6,,,2,25
3,117,760,26,1,65
4,265,560,11,1,65
4,123,50,11,16,3,,,3,4065
^D565
^D25
Microcom5
Corporation5
Thermal Printing Solutions5
012345678905
^D35
1,190,1068,11,1,6,,,2,25 5
1 -
190 -
1068 -
8 -
1 -
6 -
,,, -
2 -
2 -
5 5
-
400 Operators Manual
Field refers to text string #1 - Microcom. This
field could have referred to Corporation, if it had
a TSN of 2. The fields do not have to be in any
kind of order with respect to the data fields.
X beginning (XB) 190 dots from left edge of the
print head.
Y beginning (YB) 40 dots from bottom of label.
Character Count (CC) of 8 characters, the amount of
characters in Microcom.
A TCI of 1 indicates that the data will appear on
the label as text, an ASCII string, as opposed to,
for example, a bar code.
This CGN selection of 6 selects an 18pt font.
This will default the next two positions.
This sets the X multiplication to 2.
This sets the Y multiplication to 2.
A carriage return signals the end of this field.
Designing Labels Using LDS
A label format is coming
Header information
Field #1 information
Field #2 information
Field #3 information
Field #4 information
Field #5
Select RAM Format
Text Data is Coming
Text String #1
Text String #2
Text String #3
Print Label 1
