PHP I/O Baseboard Configuration Jumpers

You can use the configuration jumpers on the PHP I/O baseboard to recover a BIOS, clear a
CMOS password, or clear all CMOS settings. Figure 17-2 shows the jumper positions for the
default system configuration. The reserved pins may not be populated in shipping configurations.
Table 17-1 shows the minimum default configurations in bold face type.
8 7 6 5 4 3 2 1
A
J2C1
A
B
C
B

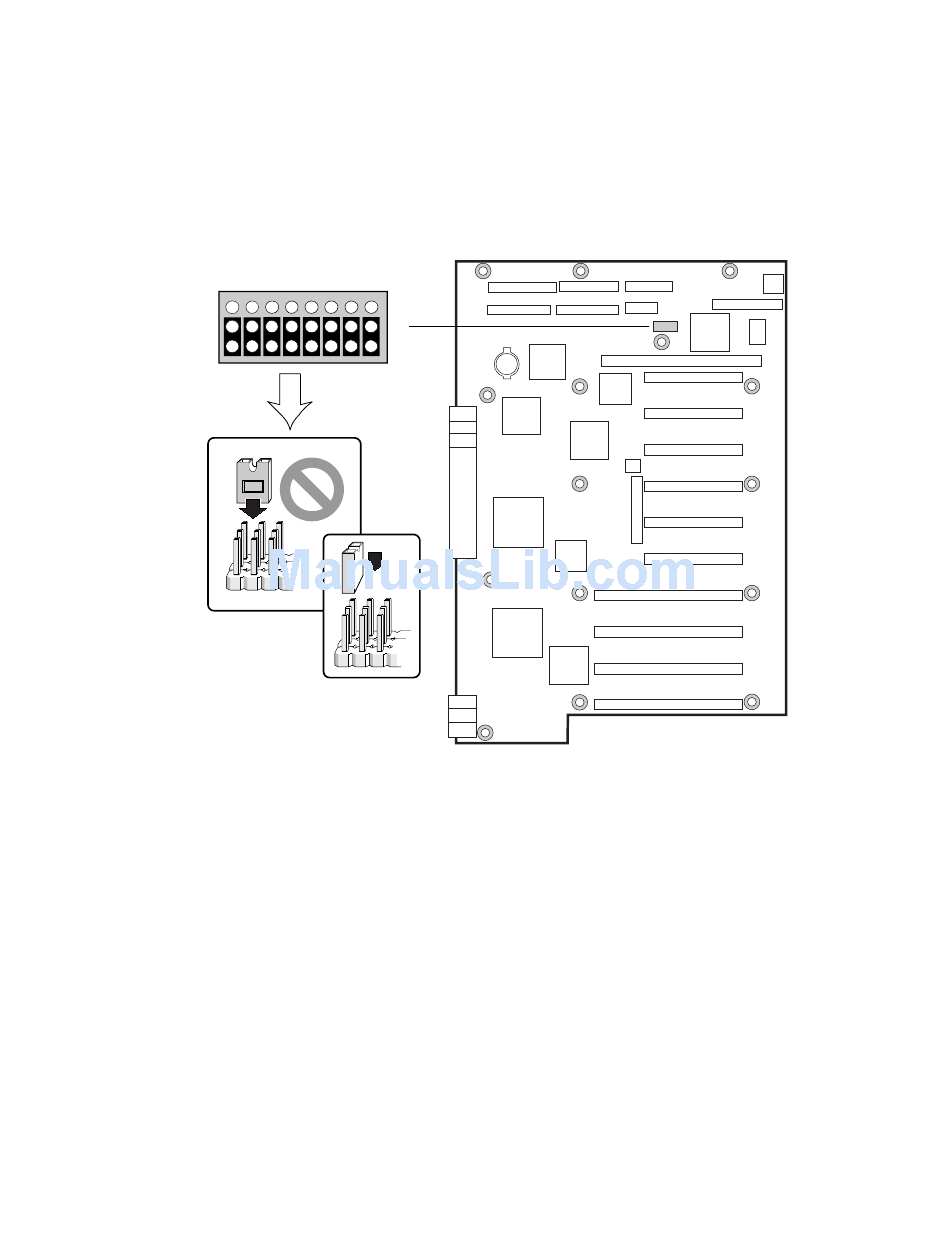

Figure 17-2. J2C1 Configuration Jumper Block
