Front Panel Board

The front panel board contains the server controls and indicators. It is mounted on snap-on and
threaded standoffs on the CPU Tray (see Figure 13-7).

Removing the Front Panel Board

See Figure 13-9.
1. Observe the precautions on page 115, "Safety Guidelines."
2. Remove the CPU tray as described earlier.
3. Remove the insulating material from the front panel board.
4. Remove the nine screws, and remove the board.
142
B

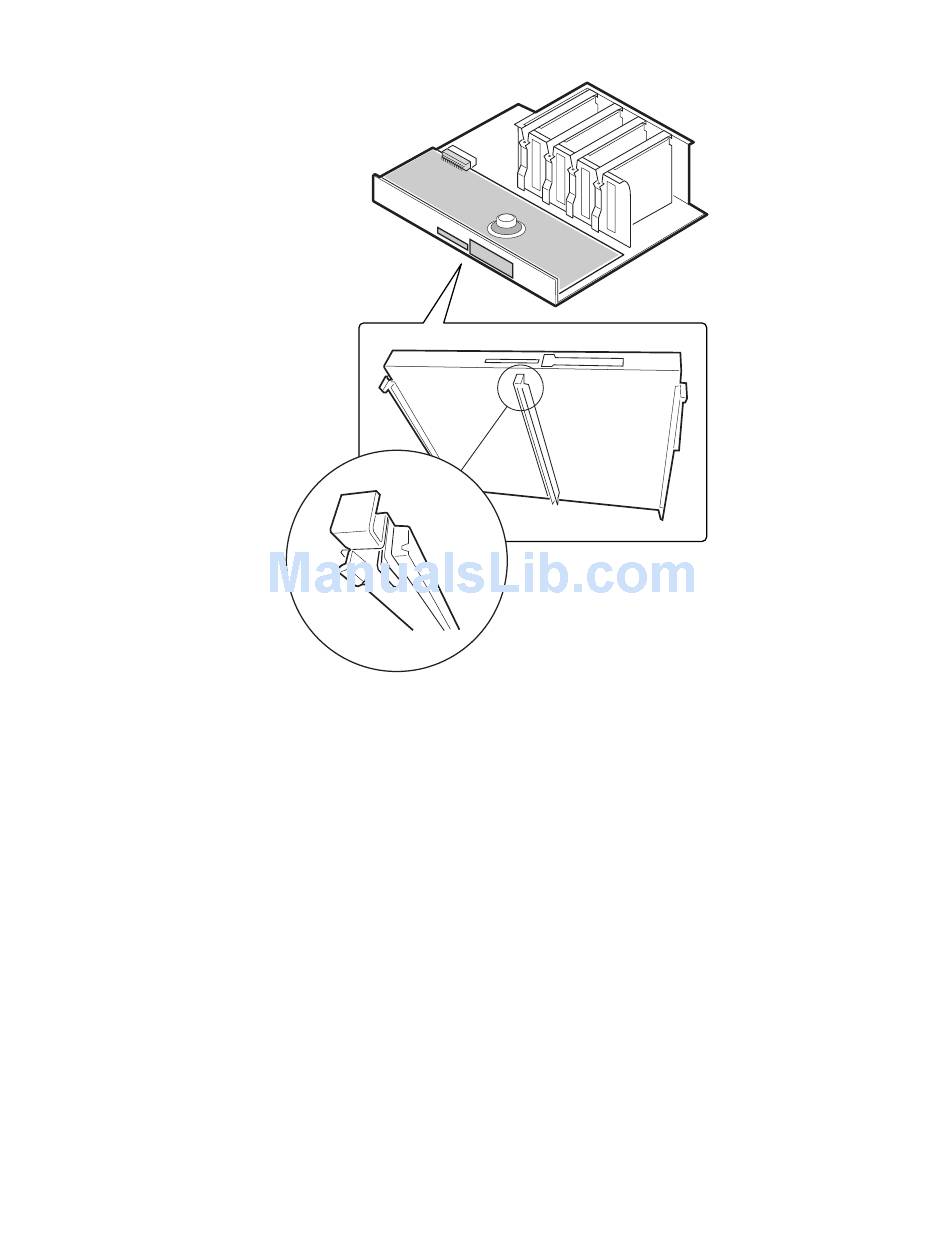

Figure 13-8. CPU Tray Support Rail
A
OM07328
