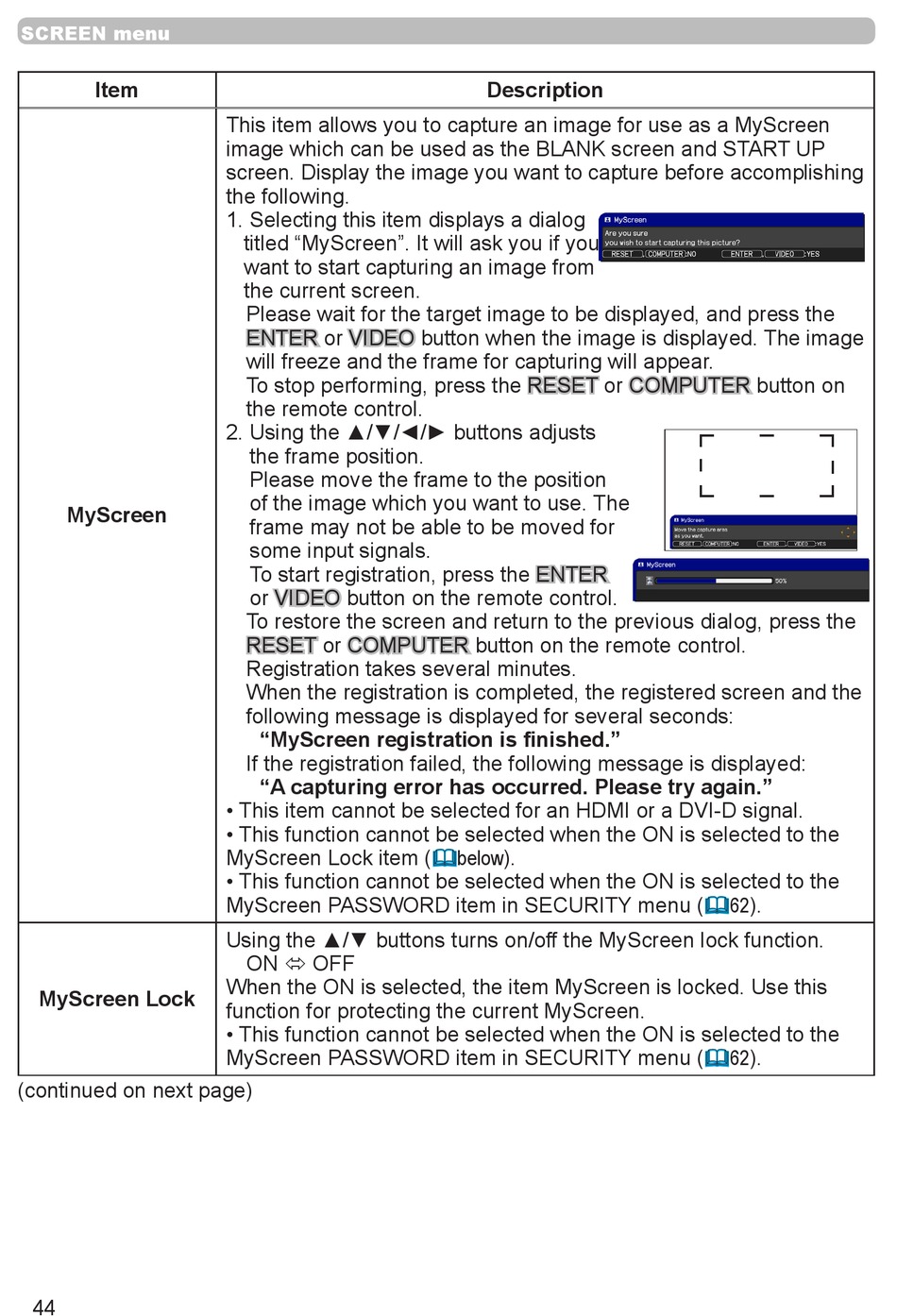

InFocus IN5542 User Manual page 44

SCREEN menu
Item
MyScreen
MyScreen Lock
(continued on next page)
44
This item allows you to capture an image for use as a MyScreen
image which can be used as the BLANK screen and START UP
screen. Display the image you want to capture before accomplishing
the following.
1. Selecting this item displays a dialog
titled "MyScreen". It will ask you if you
want to start capturing an image from
the current screen.
Please wait for the target image to be displayed, and press the
ENTER or VIDEO button when the image is displayed. The image
will freeze and the frame for capturing will appear.
To stop performing, press the RESET or COMPUTER button on
the remote control.
2. Using the ▲/▼/◄/► buttons adjusts
the frame position.
Please move the frame to the position
of the image which you want to use. The
frame may not be able to be moved for
some input signals.
To start registration, press the ENTER
or VIDEO button on the remote control.
To restore the screen and return to the previous dialog, press the
RESET or COMPUTER button on the remote control.
Registration takes several minutes.
When the registration is completed, the registered screen and the
following message is displayed for several seconds:
"MyScreen registration is finished."
If the registration failed, the following message is displayed:
"A capturing error has occurred. Please try again."
• This item cannot be selected for an HDMI or a DVI-D signal.
• This function cannot be selected when the ON is selected to the
MyScreen Lock item (below).
• This function cannot be selected when the ON is selected to the
MyScreen PASSWORD item in SECURITY menu (62).
Using the ▲/▼ buttons turns on/off the MyScreen lock function.
ON ó OFF
When the ON is selected, the item MyScreen is locked. Use this
function for protecting the current MyScreen.
• This function cannot be selected when the ON is selected to the
MyScreen PASSWORD item in SECURITY menu (62).
Description
