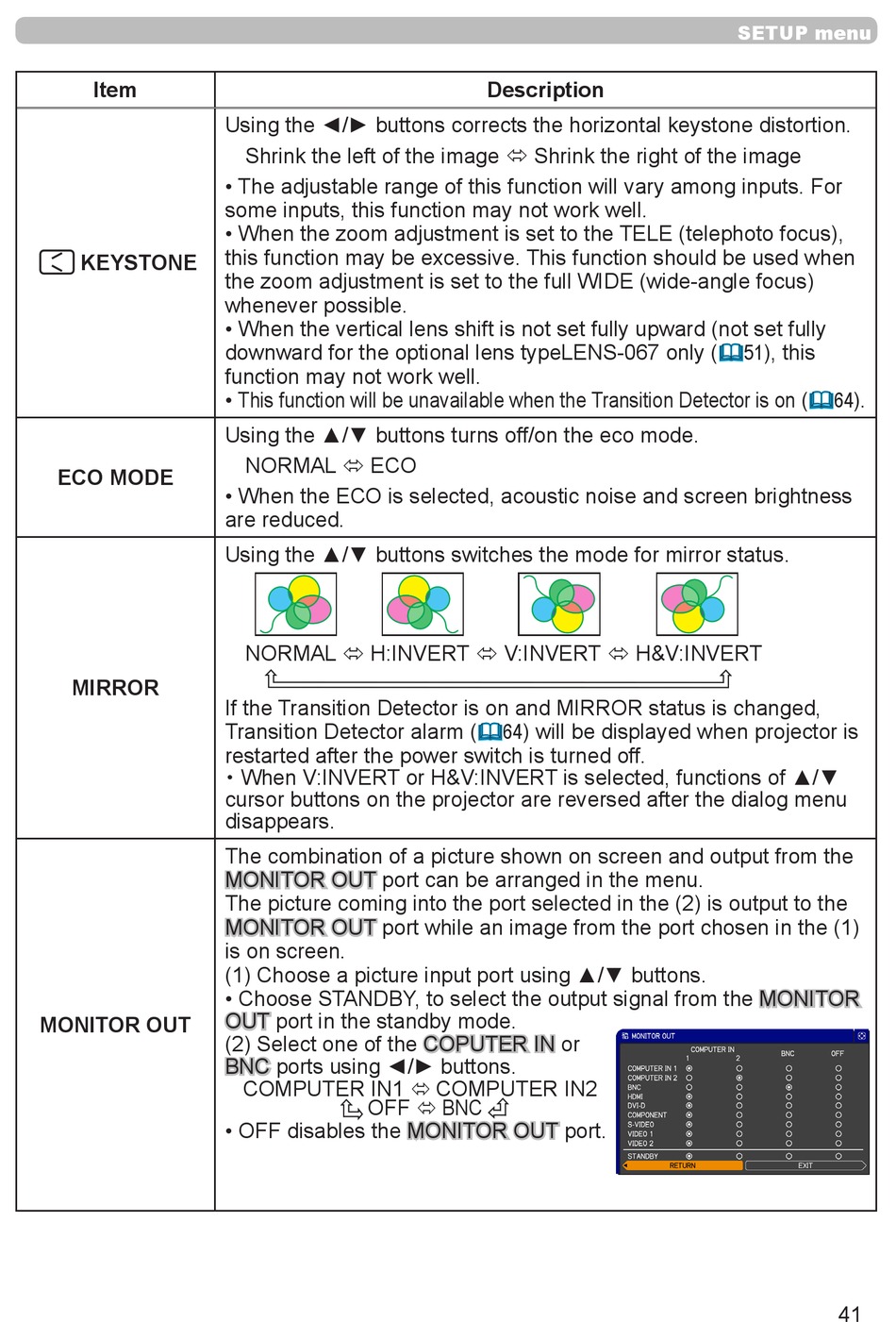

InFocus IN5542 User Manual page 41

Item
KEYSTONE
ECO MODE
MIRROR
MONITOR OUT
Using the ◄/► buttons corrects the horizontal keystone distortion.
Shrink the left of the image ó Shrink the right of the image
• The adjustable range of this function will vary among inputs. For
some inputs, this function may not work well.
• When the zoom adjustment is set to the TELE (telephoto focus),
this function may be excessive. This function should be used when
the zoom adjustment is set to the full WIDE (wide-angle focus)
whenever possible.
• When the vertical lens shift is not set fully upward (not set fully
downward for the optional lens typeLENS-067 only (51), this
function may not work well.
• This function will be unavailable when the Transition Detector is on (64).
Using the ▲/▼ buttons turns off/on the eco mode.
NORMAL ó ECO
• When the ECO is selected, acoustic noise and screen brightness
are reduced.
Using the ▲/▼ buttons switches the mode for mirror status.
NORMAL ó H:INVERT ó V:INVERT ó H&V:INVERT
If the Transition Detector is on and MIRROR status is changed,
Transition Detector alarm (64) will be displayed when projector is
restarted after the power switch is turned off.
・When V:INVERT or H&V:INVERT is selected, functions of ▲/▼
cursor buttons on the projector are reversed after the dialog menu
disappears.
The combination of a picture shown on screen and output from the
MONITOR OUT port can be arranged in the menu.
The picture coming into the port selected in the (2) is output to the
MONITOR OUT port while an image from the port chosen in the (1)
is on screen.
(1) Choose a picture input port using ▲/▼ buttons.
• Choose STANDBY, to select the output signal from the MONITOR
OUT port in the standby mode.
(2) Select one of the COPUTER IN or
BNC ports using ◄/► buttons.
COMPUTER IN1 ó COMPUTER IN2
OFF ó BNC
• OFF disables the MONITOR OUT port.
Description
SETUP menu
41
