Specifications - IMC Networks IE-MiniFiberLinX-II Operation Manual

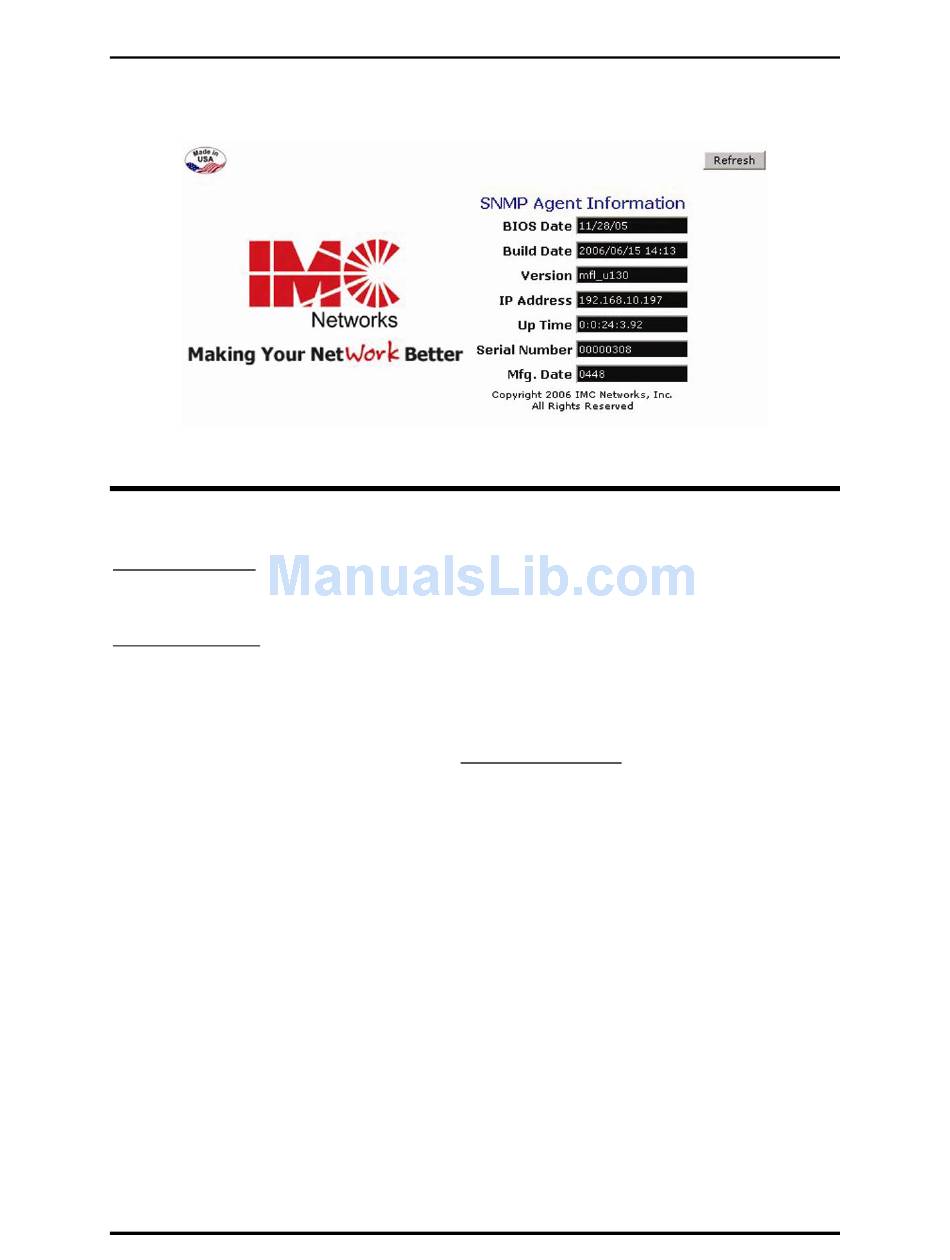

The Agent Info Screen
Information about the SNMP Agent software managing the IE-MiniFiberLinX-II is
contained on this screen.

Specifications

Input Specifications
AC Wall Adapter
100 to 240 ±10% VAC input, 5 VDC output, 2A max.
DC Input Voltage
12 to 48 VDC (*Telco compatible), 1 to .02A
7 to 50 VDC, 1 to 0.1A
IEEE 802.3af Power over Ethernet
*Telco compatible 48 VDC allows for an absolute maximum voltage of 56.5 VDC.
Humidity
5 to 95% (non-condensing)
Operating Temperature
* -13°F to +167°F (-25°C to +75°C) DC configuration
+14°F to +122° F (-10°C to +50°C) with AC wall adapter
* The unit shall be installed in a Restricted Access Location when installed for use in a
Tma above 50°C.
Storage Temperature
-49°F to 185°F (-45°C to +85°C)
Shipping Weight
0.30 lbs (0.11 kg)
Dimensions
0.83"H x 1.80"W x 3.35"D (2.11 x 4.57 x 8.51 cm)
