Euphonix Max Air Mixing Console Operation Manual
5.4

Channel Processor Order and Patch Points

The seven channel processors can be placed in any order to suit different applications.
The default order is Delay, Metering, Insert, EQ, Filters, Dynamics, and Fader. The ten
patch points are A Input, B Input, Insert Send/Return, Pre-fader Output, Post-fader
Channel Output, Dynamics Key Input, Dynamics Side-Chain Link In/Out and Mix Mi-
nus Output. All patching can be done from the Patch View (see Patch on page 54).
5.4.1

Channel Processor Order

See Process Order on page 80 for information on changing the processor order.
5.4.2

Insert Point

Each channel has an insert point with a send and return that can be patched within the
Patch View. The insert point can be anywhere among the six other processors (Delay,
Metering, EQ, Filters, Dynamics, and Fader).
The insert point can be switched in/out using the Ins/Inp Knobset Select key when In/
Out is selected.
A B
Channel Inputs
Trim & Phase
Input Select
Any
Order
Function
Delay
2 of 8 1 of 7
Function
Function
Meter
2 of 7
Function
Insert
3 of 7
Function
EQ
4 of 7
Function
Filters
5 of 7
Key
Function
DYN
Link
6 of 7
Function
7 of 7
Fader
& Mute

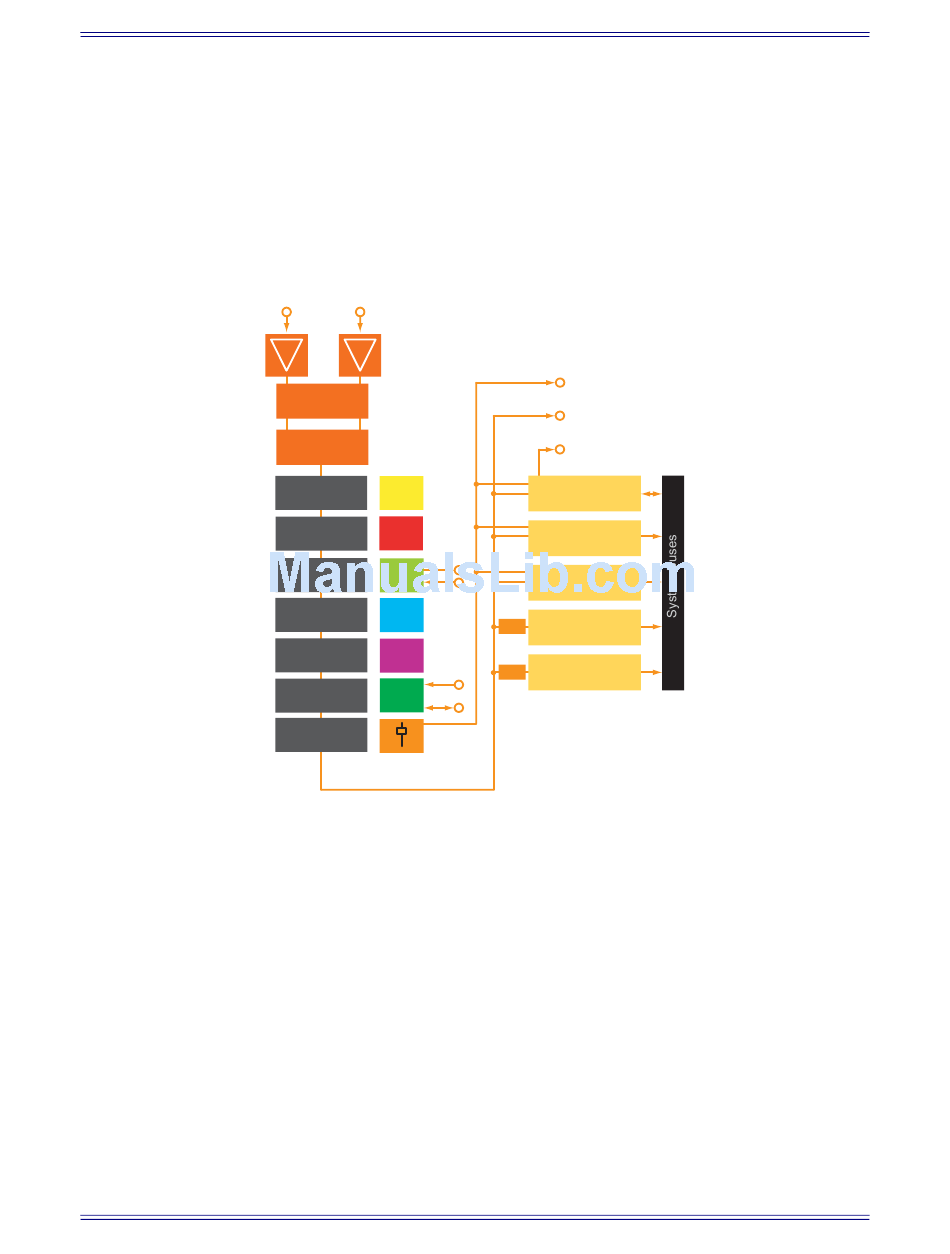

Figure 5-15 Channel processor order and patch points
Pre-Fader
Output
Channel Output
Mix Minus Output
Mix Minus
Processing
Solo
PFL/AFL
Aux
Sends
Group Busses
Pan
Matrix/Clean Feeds
Main Busses
Pan
Program/Sub Groups
105
Channels and Strips
