The possible formats are:
3. Touch the Set Format button when the desired format appears.
If the number of bus cells selected is less than the number of channels in the format, the
first channels in the format are used. For example, if two bus cells are selected and the
LCRS format is selected, the two lower numbered cell receives LCRS L and the higher
numbered cell receives LCRS C.
It is also possible to set busses to a format and then reformat some of those busses to
None. For example, if four busses receive the LCRS format, three could be selected and
set to None, leaving just LCRS S.
If there are more selected bus cells than channels in the format, the first channels are
re-used for the additional cells, For example, if six bus cells are selected and the
LCRS format is selected, the first four cells are labeled as expected (LCRS), but the last
two are LCRS L and LCRS C.

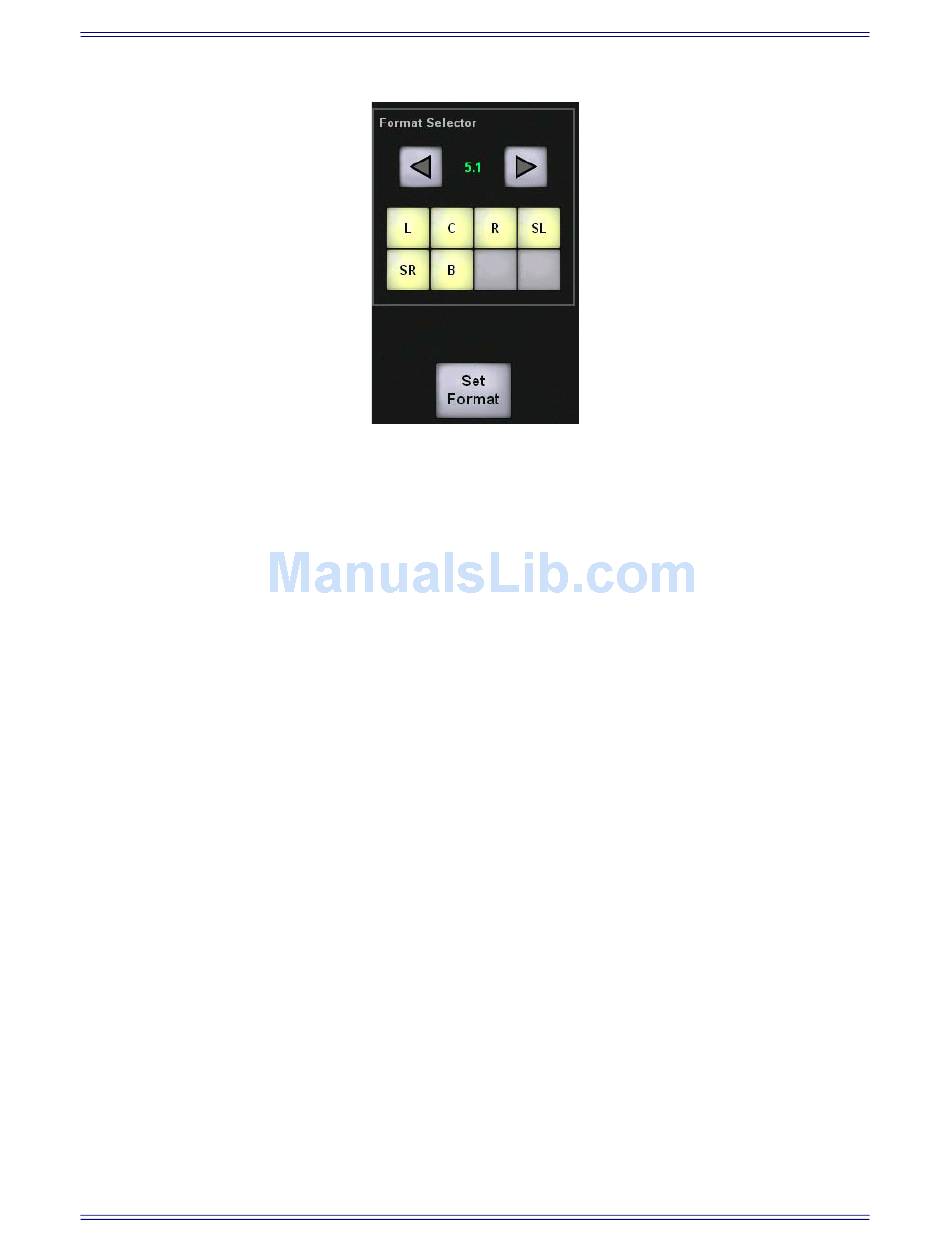

Figure 6-3 Format Selector
none (remove a format from a bus)
mono (M)
stereo (L, R)
LCRS (L, C, R, S)
5.1 (L, C, R, SL, SR, B)
6.1 (L, C, R, SL, SR, SC, B)
7.1 (L, LC, C, RC, R, SL, SC, SR, B)
