Euphonix Max Air Mixing Console Operation Manual
10.9.4

Move a Fader to Stop a Cart Machine

This example demonstrates how to stop a Cart machine by moving a fader below a se-
lected level.
1. Touch the Events Main Menu button to display the Events View.
2. In the Event List area, touch the <Press to Add Event> field. Type something
descriptive in the keyboard popup.
3. Touch the Logic field to the left of the description and select AND as the log-
ical operator from the Logical Operator Popup.
4. In the Inputs area, touch the <Press to Add Input> field and select Fader
from the Add Input Event Popup (see Figure 10-2).
Enter a description by selecting the Description field and touching the Edit
Name button.
5. Touch the field next to Channel and type 2 in the keyboard popup.
6. Touch the field next to Activation level and type -50 in the keyboard popup.
7. Touch the field next to Activation Type and select Below from the Activation
Type Popup.

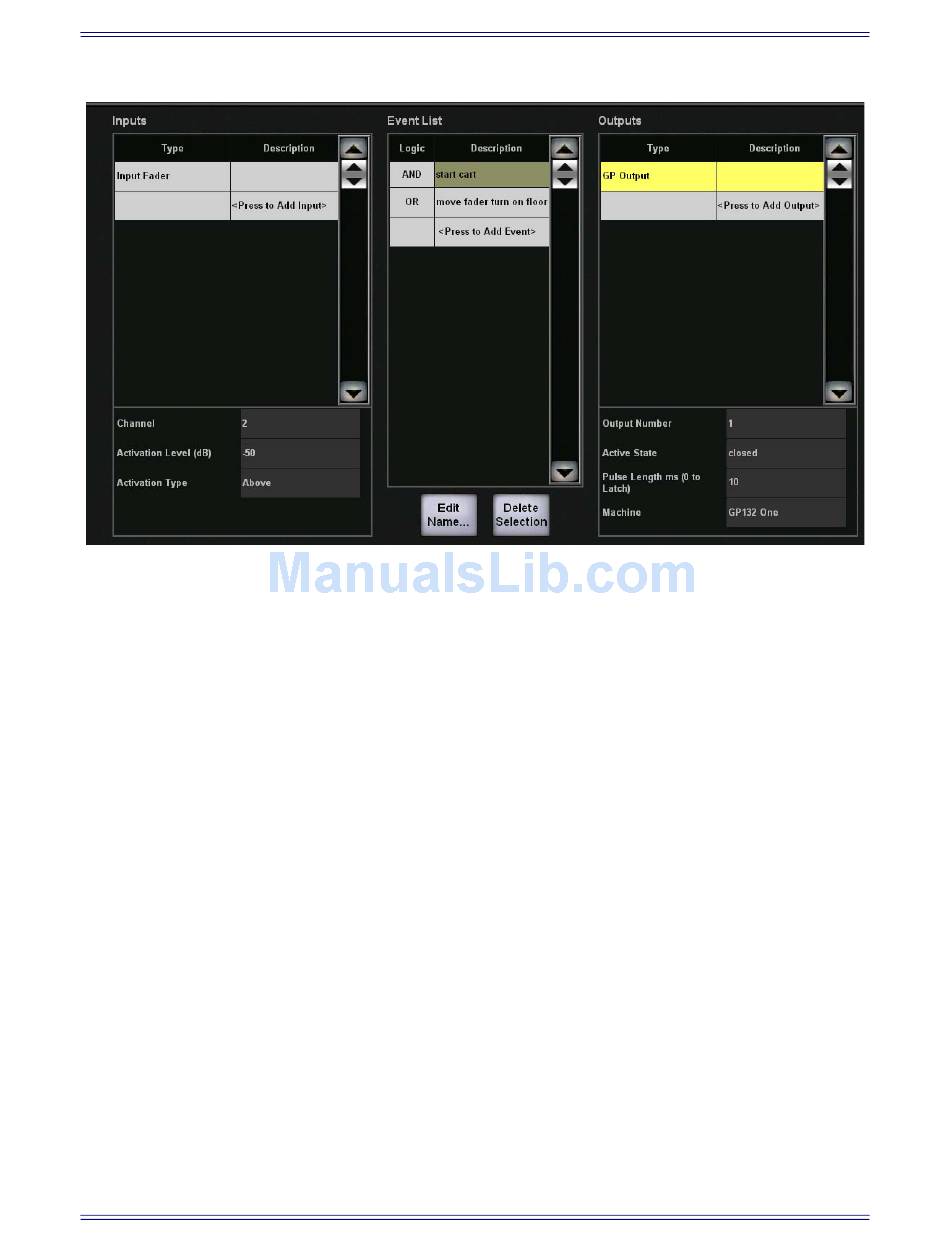

Figure 10-10 Start Cart: Inputs and Outputs Set
175
Event System
