Euphonix System 5 Installation Guide

MA703 MADI to Analog Converter

Signal Strength LEDs: Each of the 28 channels has a four-segment LED that represents

the following signal levels: -42 dB, -18 dB, -6 dB (green), -0.05 dB (red).

Trim Pots Access: Three trim pots adjust the maximum analog output level of channels 1–

8, 9–16, and 17–24 in 2-dB steps between +12 and +26 dBu.

SR Conv: This indicates sample-rate conversion activity on the auxiliary digital inputs.

Sample Rate LEDs: These LEDs indicate the sample rate to which the converter is cur-

rently locked. Sample rates are auto-sensed. Supported sample rates are 96 kHz, 88.2 kHz,

48 kHz, 44.1 kHz, and Custom rates from external sources.

Sample Rate Source LEDs: These LEDs indicate the format of the Sample Rate Source

to which the converter is currently locked. Sample Rate Source can be auto-sensed or man-

ually selected. If an external source is not detected, the MA703 mutes its outputs. If a man-

ually selected source is not present, the Sample Rate Source indicator blinks.

•

AES:

•

Word: Sample Rate locked to Word Clock Input.

•

MADI: Sample Rate locked to MADI.

•

Auto:

These LEDs appear in the same order in which signals are tested for their presence. This

detection procedure occurs when the converters are powered on. The Sample Rate Source

can also be selected manually.

Manual Selection Buttons: The button below each Sample Rate LED row manually se-

lects the sample rate.

Power Switch: On/Off switch.

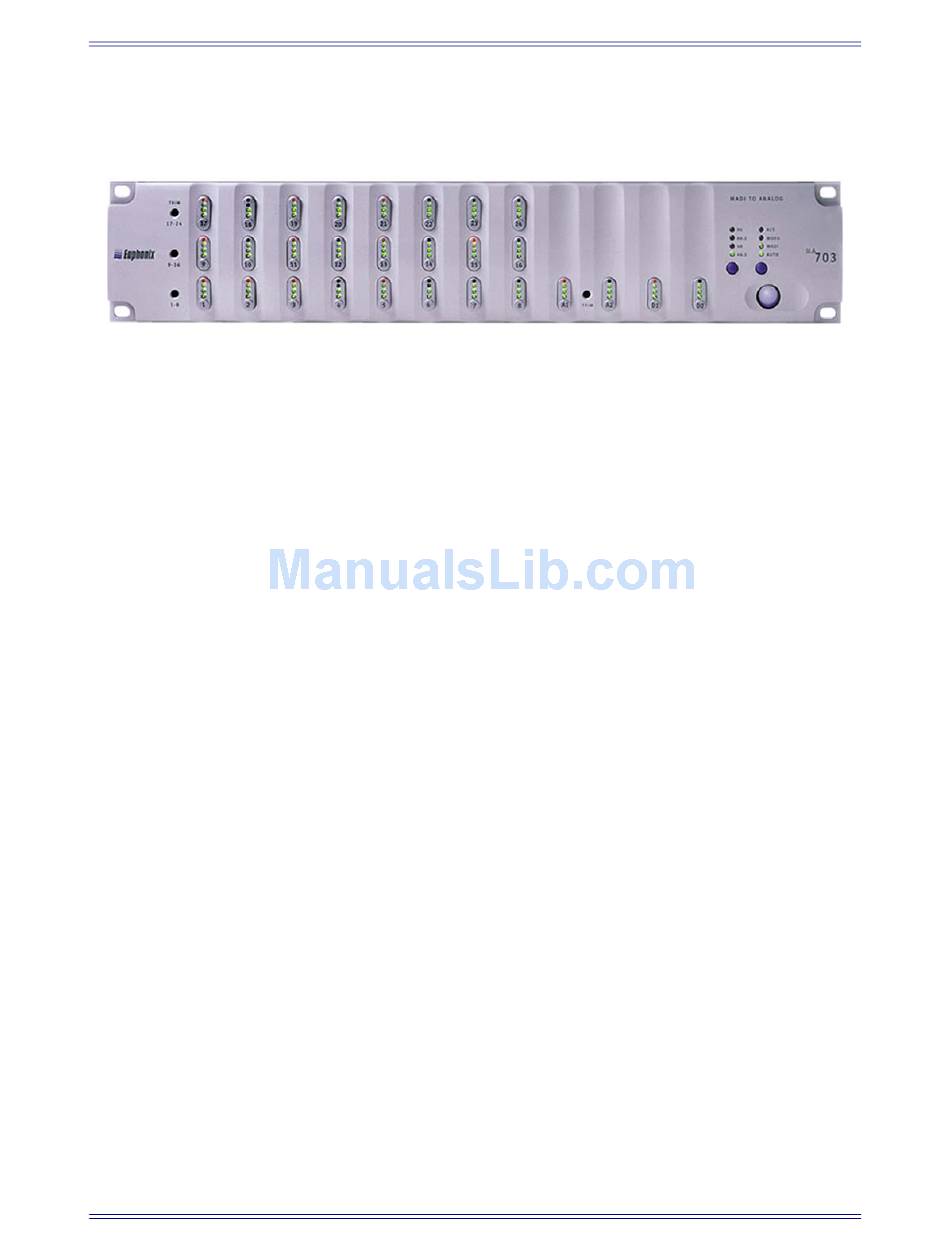

Figure 3-20 MA703 Front Panel

Sample Rate locked to AES Input.

Sample Rate Source has been auto-sensed.

System 5 Components
