Euphonix System 5 Installation Guide

System 5 Components

PC254i Interface Computer

INTERFACE PILOT COMPUTER

254i

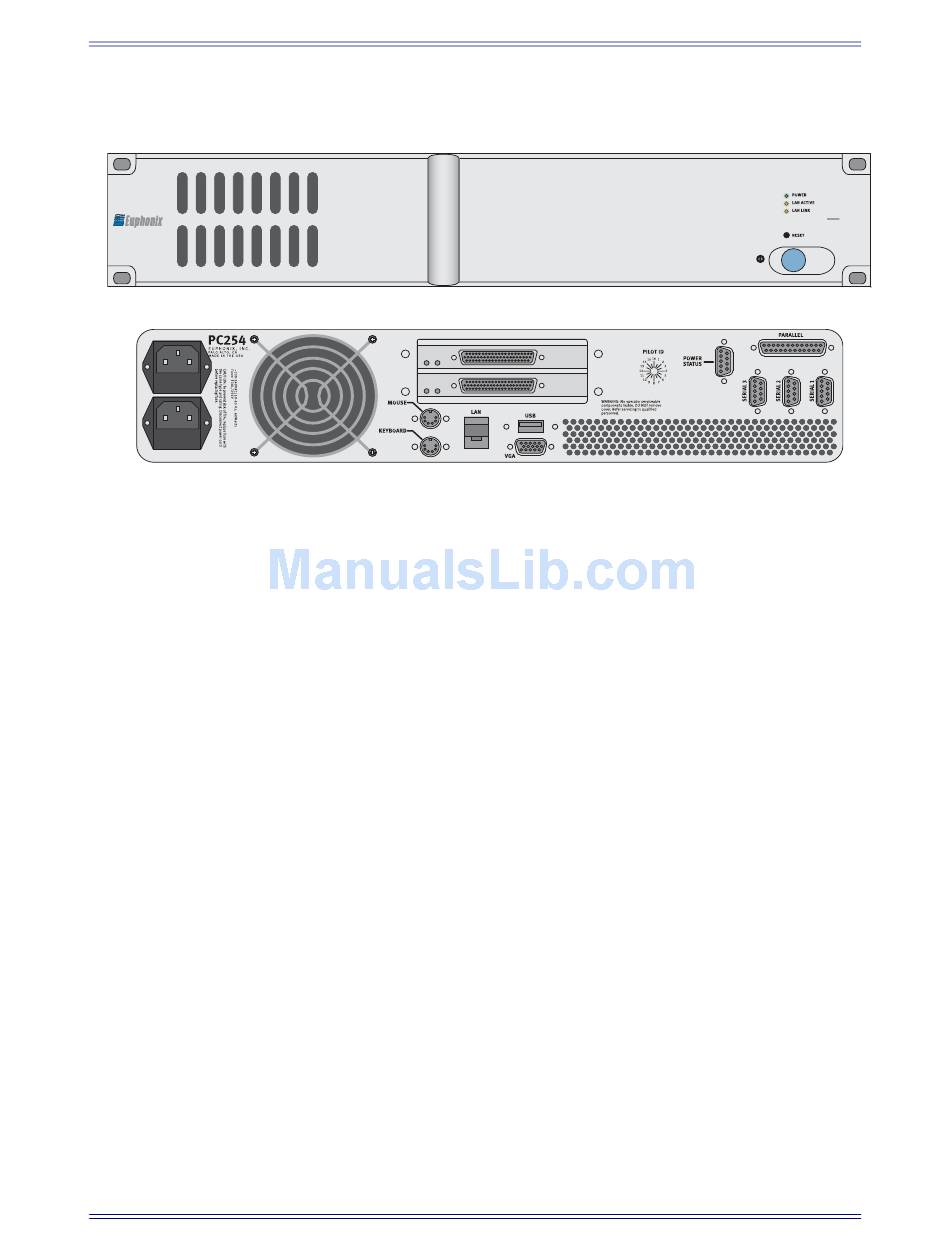

Figure 3-7 PC254i Front and Rear Panels

Parallel Port (DB-25): Currently unused..

TCC Main Port (Lower DC-62HD): Connect TCC breakout cable (provided) to this port. This cable

breaks out to four DB-15 connectors that provide control hookup for the MC524 Monitor Interface and

three ML530 Mic/Line Interfaces.

TCC Extension Port (Upper DC-62HD): Connect a second TCC breakout cable (provided) to this port

to connect up to four additional ML530 Mic/Line Interfaces.

Network Port (RJ45): Connect to the EuCon Network Switch via the RJ45 cable (provided).

Serial Port 1 (DE-9):Connect to control port on first SH612.

Serial Port 2 (DE-9):Connect to control port on second SH612 (optional)

Power Connectors (IEC): Accepts two standard IEC power cords (provided). Two autoranging switch-

ing supplies accept voltages between 100–240 VAC, 50–60 Hz.

Power Status (DE-9): Offers two open-collector, optically-isolated power status feeds. Pins 1/2 ref-

erence the primary power supply, and pins 3/4 the secondary. These outputs are capable of switching

a maximum of 20 mA at 24 VDC.

USB Port (any): Connect to MOTU MIDI I/F via USB A-to-B cable.
