Euphonix System 5 Installation Guide

SH612 Studio Hub

1
Video In (BNC): Accepts signal from house blackburst or composite sync.
AES Sync In (female XLR): Accepts signal from a digital sync reference.
AES Sync Out Ports (four male XLR): This signal is active regardless of selected sync
source.
Word In (BNC): Accepts signal from a digital sync reference.
Word Out (BNC): This signal is active regardless of selected sync source.
MADI In / Out Ports (24 BNC): Digital audio in and outs. See the MADI Hookup dia-
grams (beginning on page 26) for details on these connections.
Control Port (DE-9): Connect to Serial Port 1 on PC254i Interface Computer.
Power Connectors (IEC): Accepts two standard IEC power cords (provided). Two autorang-
ing switching supplies accept voltages between 100–240 VAC, 50–60 Hz.
NOTE: The connections described above pertain only to a System 5 console config-
uration. The other connections on the SH612 are used when installed with the
now-discontinued R-1 Digital Audio Multitrack Recorder.
Int ->480000
Gen ->00:00:00:00 Stop
D I
2 3 4 6
Info
0 11 12

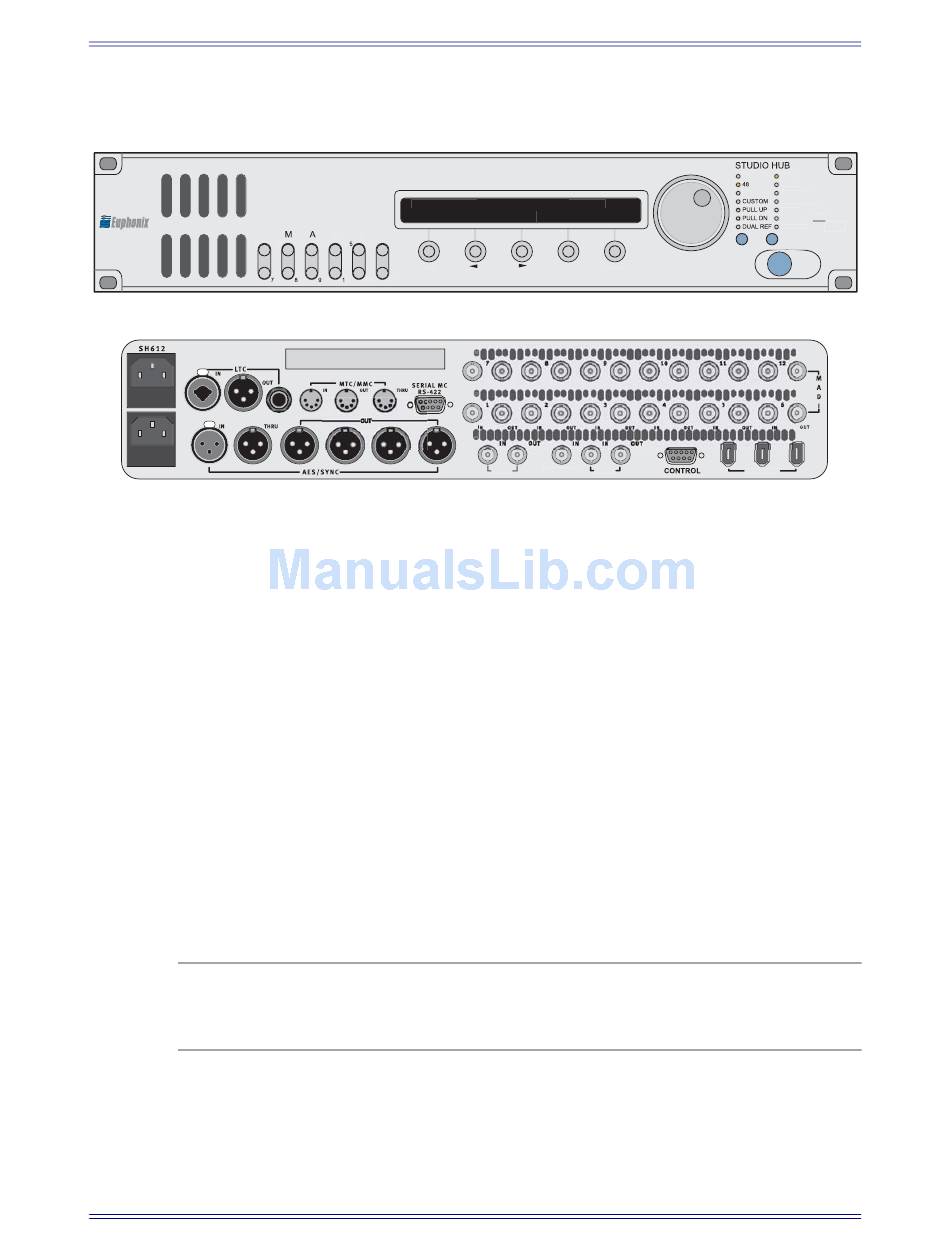

Figure 3-17 SH612 Studio Hub
Locked
Escape Select
VID-SYNC VIDEO VIDEO
WORD
48
System 5 Components
96 AES
WORD
44.1 INTERNAL
VIDEO SYNC
VIDEO
SH
OTHER
612
TC LOCK
IEEE1394
