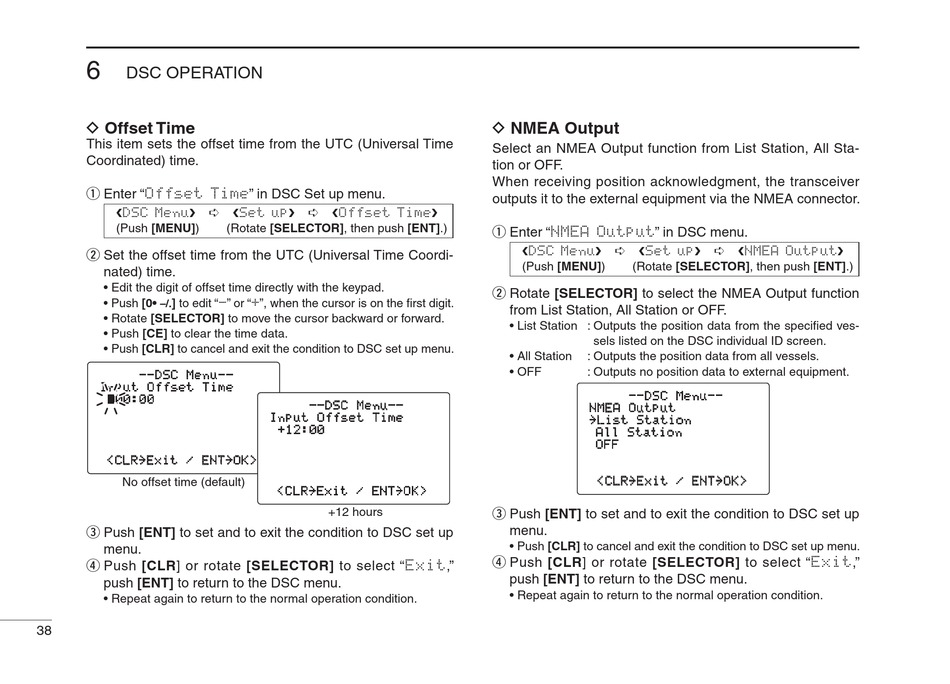

6
DSC OPERATION
D Offset Time
Ths tem sets the offset tme from the UTC (Unversal Tme
Coordnated) tme.
q Enter "Offset Time" n DSC Set up menu.
DSC Menu ➪
(Push [MENU])
w Set the offset tme from the UTC (Unversal Tme Coord-
nated) tme.
• Edt the dgt of offset tme drectly wth the keypad.
• Push [0• ] to edt "-" or "+", when the cursor s on the first dgt.
–/.
• Rotate [SELECTOR] to move the cursor backward or forward.
• Push [CE] to clear the tme data.
• Push [CLR] to cancel and ext the condton to DSC set up menu.
--DSC Menu--
Input Offset Time
000:00
<CLR˘Exit / ENT˘OK>
No offset time (default)
e Push [ENT] to set and to ext the condton to DSC set up
menu.
r Push [CLR] or rotate [SELECTOR] to select "Exit,"
push [ENT] to return to the DSC menu.
• Repeat agan to return to the normal operaton condton.
38
Set up ➪ Offset Time
(Rotate [SELECTOR], then push [ENT].)
--DSC Menu--
Input Offset Time
+12:00
<CLR˘Exit / ENT˘OK>
+12 hours
D NMEA Output
Select an NMEA Output functon from Lst Staton, All Sta-
ton or OFF.
When recevng poston acknowledgment, the transcever
outputs t to the external equpment va the NMEA connector.
q Enter "NMEA Output" n DSC menu.
DSC Menu ➪ Set up
(Push [MENU]) (Rotate [SELECTOR], then push [ENT].)
w Rotate [SELECTOR] to select the NMEA Output functon
from Lst Staton, All Staton or OFF.
• Lst Staton : Outputs the poston data from the specfied ves-
sels lsted on the DSC ndvdual ID screen.
• All Staton : Outputs the poston data from all vessels.
• OFF : Outputs no poston data to external equpment.
--DSC Menu--

NMEA Output

˘List Station
All Station
OFF
<CLR˘Exit / ENT˘OK>
e Push [ENT] to set and to ext the condton to DSC set up
menu.
• Push [CLR] to cancel and ext the condton to DSC set up menu.
r Push [CLR] or rotate [SELECTOR] to select "Exit,"
push [ENT] to return to the DSC menu.
• Repeat agan to return to the normal operaton condton.
➪ NMEA Output
