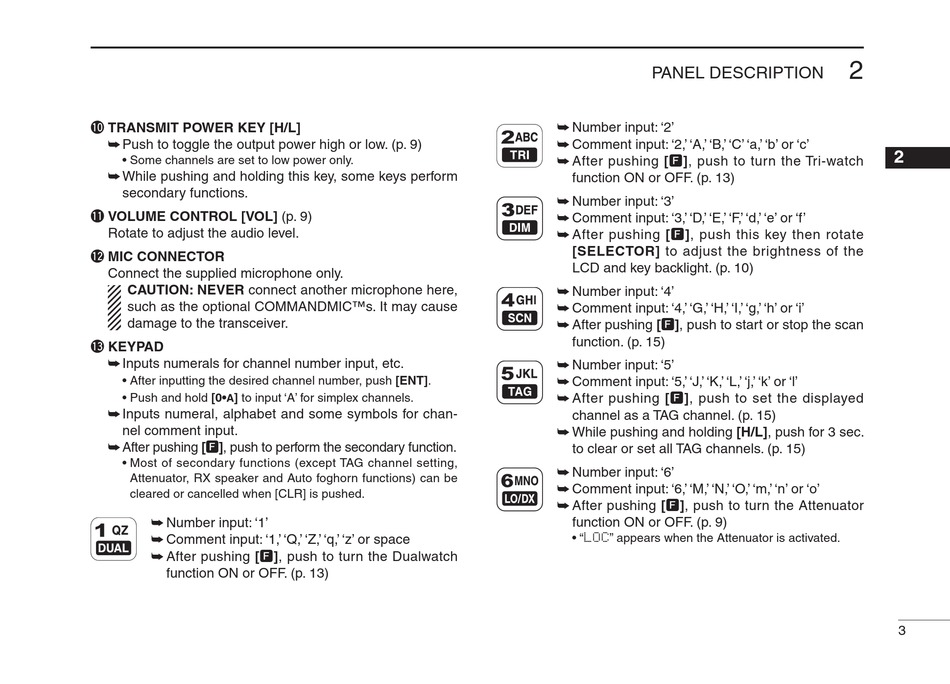

Icom IC-M604 Instruction Manual page 9

!0 TRANSMIT POWER KEY [H/L]
➥ Push to toggle the output power hgh or low. (p. 9)
• Some channels are set to low power only.
➥ Whle pushng and holdng ths key, some keys perform
secondary functons.
!1 VOLUME CONTROL [VOL] (p. 9)
Rotate to adjust the audo level.
!2 MIC CONNECTOR
Connect the suppled mcrophone only.
CAUTION: NEVER connect another mcrophone here,
such as the optonal COMMANDMIC™s. It may cause
damage to the transcever.
!3 KEYPAD
➥ Inputs numerals for channel number nput, etc.
• After nputtng the desred channel number, push [ENT].
• Push and hold [0• ] to nput 'A' for smplex channels.
A
➥ Inputs numeral, alphabet and some symbols for chan-
nel comment nput.
➥ After pushng [F], push to perform the secondary functon.
• Most of secondary functons (except TAG channel settng,
Attenuator, RX speaker and Auto foghorn functons) can be
cleared or cancelled when [CLR] s pushed.
➥ Number nput: '1'
➥ Comment nput: '1,' 'Q,' 'Z,' 'q,' 'z' or space
➥ After pushng [F], push to turn the Dualwatch
functon ON or OFF. (p. 13)
PANEL DESCRIPTION
➥ Number nput: '2'
➥ Comment nput: '2,' 'A,' 'B,' 'C' 'a,' 'b' or 'c'
➥ After pushng [F], push to turn the Tr-watch
functon ON or OFF. (p. 13)
➥ Number nput: '3'
➥ Comment nput: '3,' 'D,' 'E,' 'F,' 'd,' 'e' or 'f'
➥ After pushng [F], push ths key then rotate
[SELECTOR] to adjust the brghtness of the
LCD and key backlght. (p. 10)
➥ Number nput: '4'
➥ Comment nput: '4,' 'G,' 'H,' 'I,' 'g,' 'h' or ''
➥ After pushng [F], push to start or stop the scan
functon. (p. 15)
➥ Number nput: '5'
➥ Comment nput: '5,' 'J,' 'K,' 'L,' 'j,' 'k' or 'l'
➥ After pushng [F], push to set the dsplayed
channel as a TAG channel. (p. 15)
➥ Whle pushng and holdng [H/L], push for 3 sec.
to clear or set all TAG channels. (p. 15)
➥ Number nput: '6'
➥ Comment nput: '6,' 'M,' 'N,' 'O,' 'm,' 'n' or 'o'
➥ After pushng [F], push to turn the Attenuator
functon ON or OFF. (p. 9)
• "LOC" appears when the Attenuator s actvated.
2
2
3
