MCrophone - Icom IC-M604 Instruction Manual

2

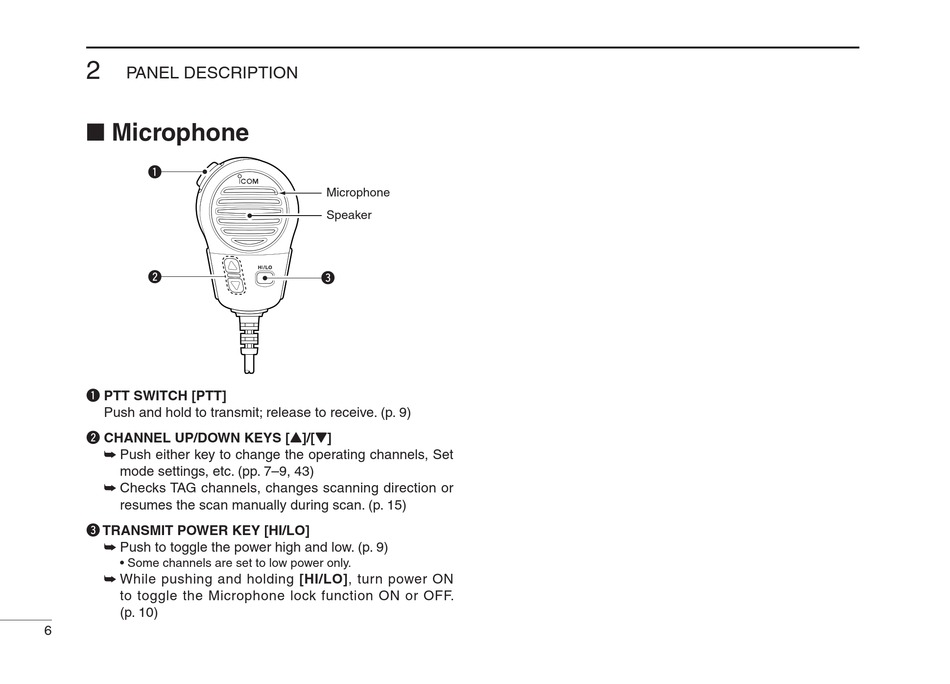

PANEL DESCRIPTION
■ Microphone
q
w
q PTT SWITCH [PTT]
Push and hold to transmt; release to receve. (p. 9)
w CHANNEL UP/DOWN KEYS [Y]/[Z]
➥ Push ether key to change the operatng channels, Set
mode settngs, etc. (pp. 7–9, 43)
➥ Checks TAG channels, changes scannng drecton or
resumes the scan manually durng scan. (p. 15)
e TRANSMIT POWER KEY [HI/LO]
➥ Push to toggle the power hgh and low. (p. 9)
• Some channels are set to low power only.
➥ Whle pushng and holdng [HI/LO], turn power ON
to toggle the Mcrophone lock functon ON or OFF.
(p. 10)
6
Microphone
Speaker
e
