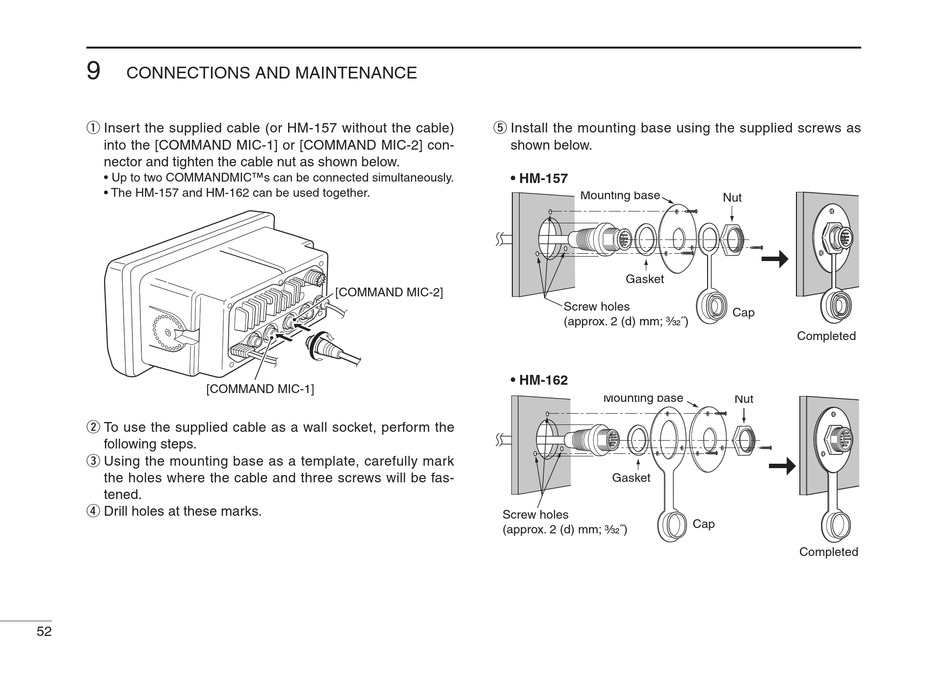

CONNECTIONS AND MAINTENANCE
q Insert the suppled cable (or HM-157 wthout the cable)
nto the [COMMAND MIC-1] or [COMMAND MIC-2] con-
nector and tghten the cable nut as shown below.
• Up to two COMMANDMIC™s can be connected smultaneously.
• The HM-157 and HM-162 can be used together.
[COMMAND MIC-1]
w To use the suppled cable as a wall socket, perform the
followng steps.
e Usng the mountng base as a template, carefully mark
the holes where the cable and three screws wll be fas-
tened.
r Drll holes at these marks.
52
t Install the mountng base usng the suppled screws as
shown below.
• HM-157
[COMMAND MIC-2]
• HM-162
Screw holes
(approx. 2 (d) mm;
Mounting base
Nut
Gasket
Screw holes
Cap
(approx. 2 (d) mm; ˝)
3 32
Mounting base Nut
Gasket
Cap
˝)
3 32
Completed
Completed
